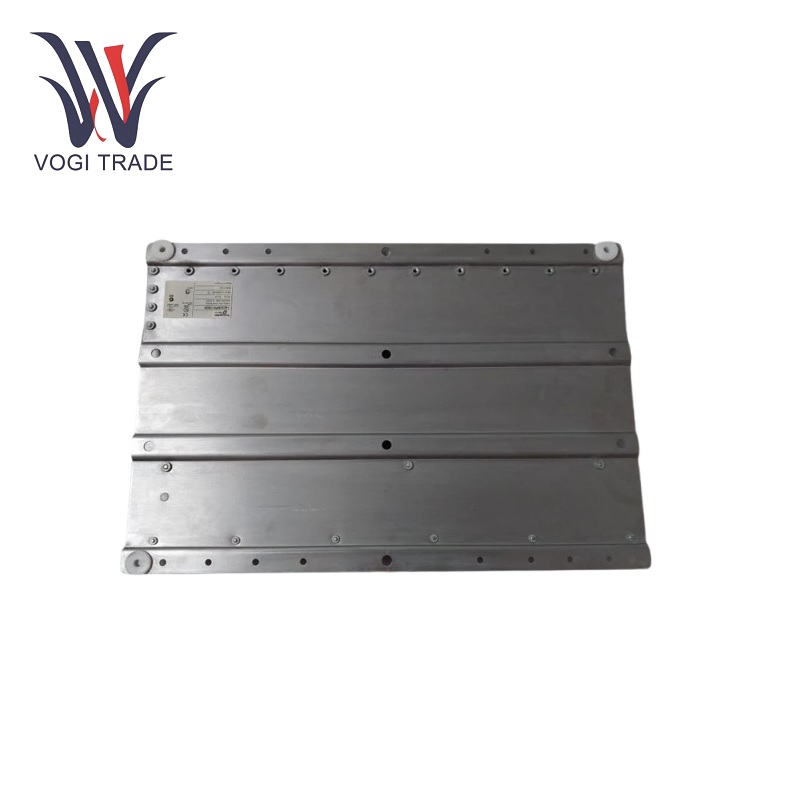

Schneider 140XBP01000

Usage parameters

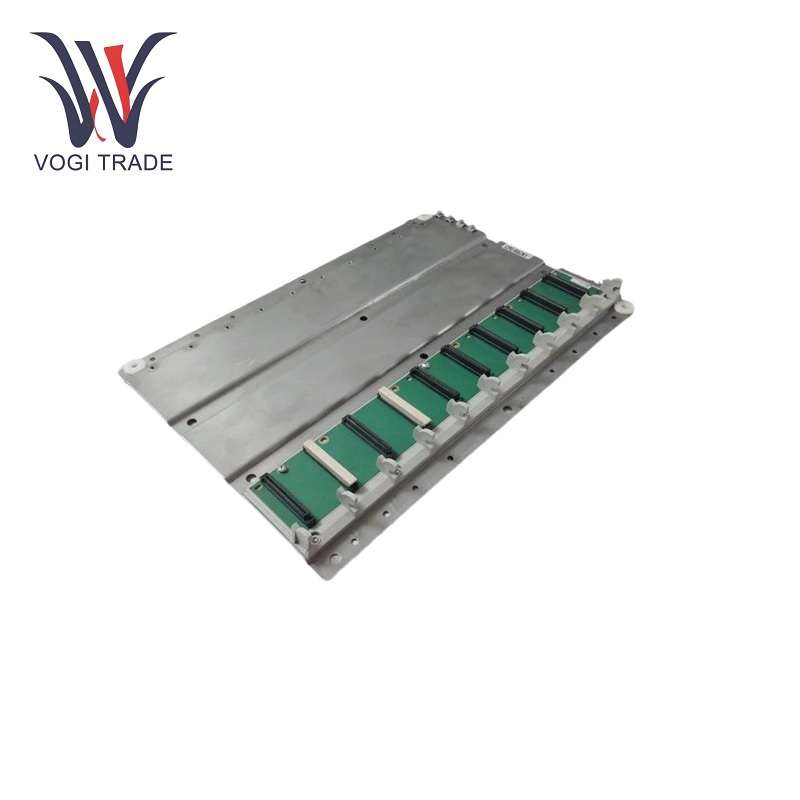

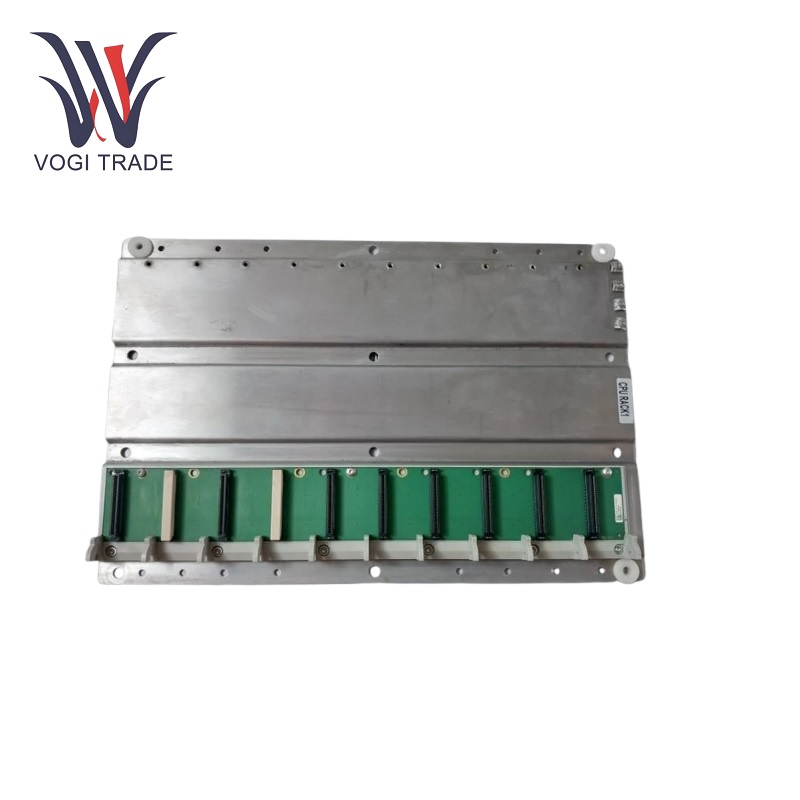

bus configuration slots: Schneider 140XBP01000 is a 10-slot rack backplane with enough space to install various I/O modules, processors, and communication adapters, which is convenient for configuring and expanding subsystems.

Bus current supply: Ensure that any module connected to the backplane can obtain sufficient current to ensure normal operation. Depending on the model and configuration, this current level may vary from model to model, but it can ensure that the necessary power is provided to the connected equipment.

Installation method: The backplane is fixed with screws to ensure that the installed modules will not loosen due to any interference during the operation of the control cabinet or panel.

Module hosting and interconnection product service functions

140XBP01000 is the basis of the Modicon Quantum PLC system. It interconnects and hosts various I/O modules, processors, and communication adapters. The communication between these components is very smooth, enabling the transmission and processing of data in an automation environment.

Redundancy support: The 140XBP01000 architecture is optimized through redundancy in certain configurations. This means that in certain critical applications, it can be designed so that in the event of a component failure, there will be an alternate path or redundant components available to ensure system continuity, thereby improving the overall reliability and availability of the system.

Provides communication bus: It provides a common communication bus that allows communication to be exchanged between all modules and the CPU. The bus allows the modules to communicate through various communication protocols at multiple data transfer rates, allowing control signals, process data, and diagnostic information to be exchanged between various parts of the system.

Simple insertion: With modules designed for this purpose, installation and configuration are very simple. The user inserts the module by sliding it into the slot until the connectors meet and tightening it in place. The backplane has clear markings and wiring guides to easily connect power and other necessary wires.

Diagnostic and monitoring capabilities: The backplane provides built-in diagnostics and LED status indicators with the modules connected to it. This enables the operator to quickly assess the operating status of the system, identify any faults or errors in it, and take appropriate corrective actions. The LED status indicator can display signals about power status, communication status, and module activity.

Application range

Process control: Schneider 140XBP01000 is widely used in process control applications in the chemical, pharmaceutical, and food processing industries. It interfaces with sensors and actuators to monitor and control temperature, pressure, flow rate and liquid level. Due to the modular design and communication reliability of 140XBP01000, the entire process can be automatically and precisely controlled to improve quality and efficiency. The above infrastructure critical systems should be applied to: The same applies to infrastructure critical systems such as power plants, water treatment plants and refineries. Here, it is committed to managing and controlling key equipment and processes to ensure the stable operation of infrastructure. Taking the power plant as an example, we can simulate the operation of the power plant by controlling generators, transformers and other electrical equipment while monitoring the parameters of the power grid. Manufacturing Automation: 140XBP01000 is an indispensable part of the automation system of the manufacturing plant. It can be integrated with production lines, robotic systems and material handling systems to realize the automation of production processes. The introduced I/O modules and controllers are able to coordinate and control various activities and improve production efficiency, thereby improving productivity and product quality.
