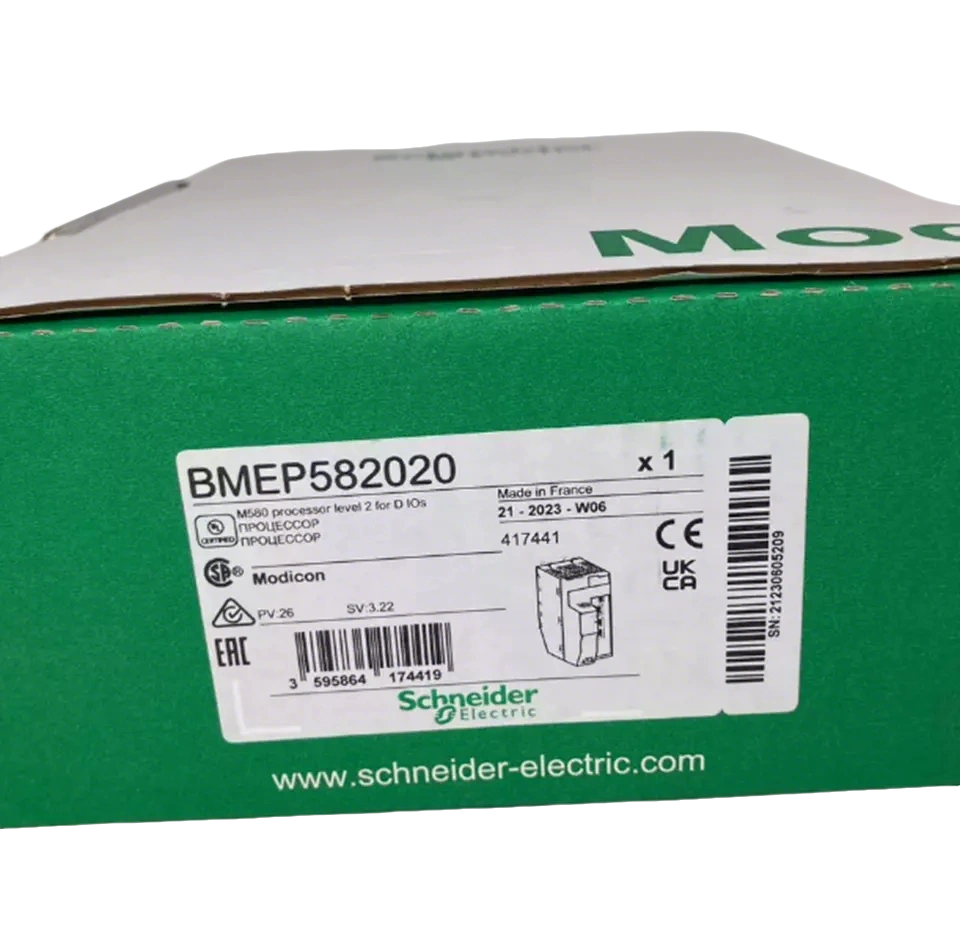

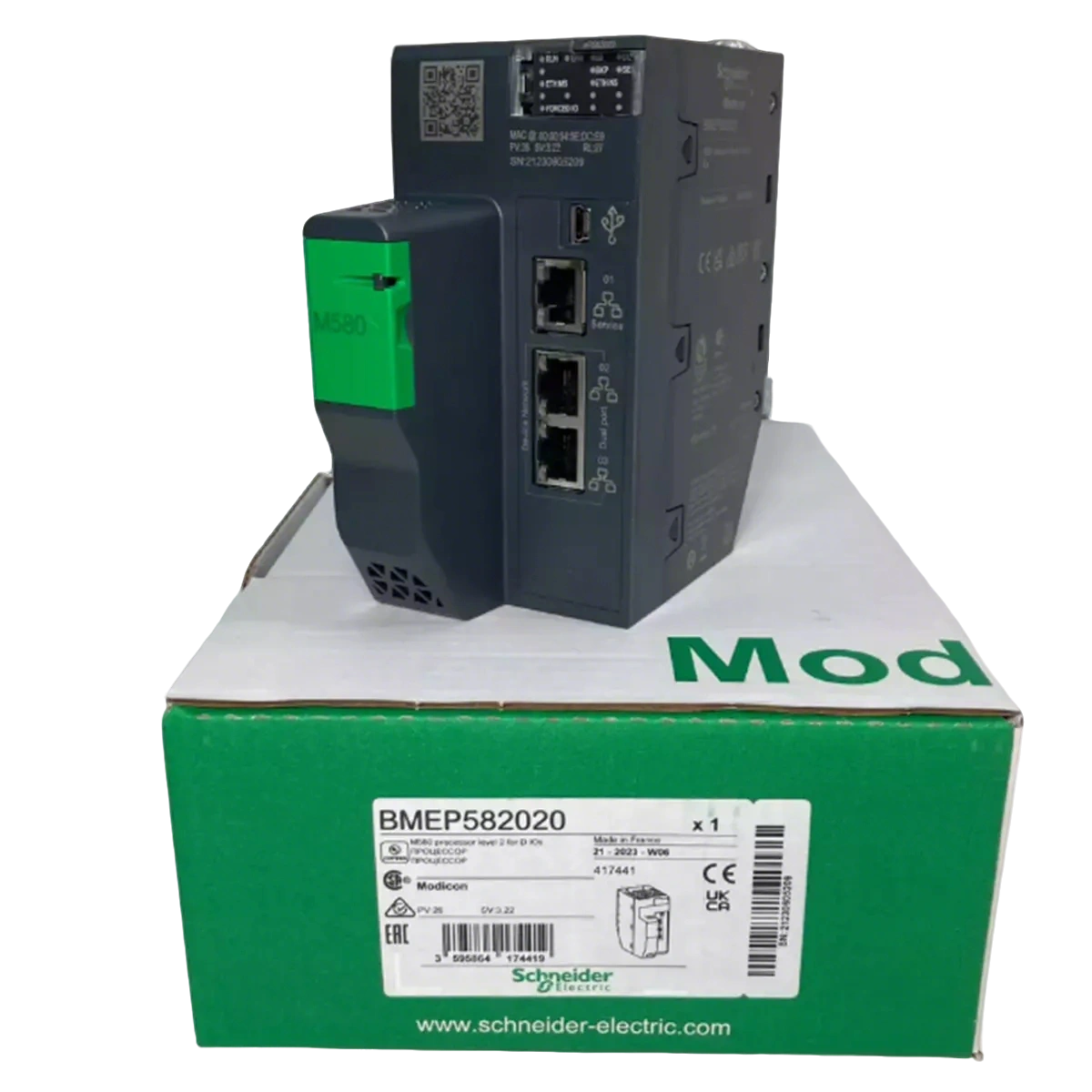

Schneider BMEP582020

Schneider BMEP582020
Rack related

Number of racks: 4 racks

Local I/O processor capacity

Local I/O processor capacity (discrete): 2048 I/O (discrete)

Local I/O processor capacity (analog): 512 I/O (analog)

Local dedicated channels (local rack)

Number of application specific channel (local rack): 72

Dedicated timestamping application specific I/O

Includes counter link, motion control, HART, SSI encoder.

Check related

Checks: process control, programmable loop

Control channels

Control channels: 1 USB mini B

Integrated connection type

Integrated connection type: 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network ports

Number of distributed equipment

Number of distributed equipment: 128

Communication module processor capacity

Communication module processor capacity: 2 Ethernet communication modules, 6 ASI interface modules

Communication service

Communication service: DIO scanner

Memory description

Memory description:

Extended flash memory: 4 GB data storage

Integrated RAM: 10 KB system memory, 1 MB load memory, 768 KB program, 768 KB data

Application structure

Application structure:

1 cyclic/periodic main task

1 event fast task

64 auxiliary tasks

2 auxiliary fast tasks

Number of instructions per ms

Number of instructions per ms: 7.5 Kins/ms, of which 65% are Boolean operations and 35% are fixed arithmetic

Current consumption

Current consumption: 270 mA, 24 V DC

MTBF reliability

MTBF reliability: 600000 hours

Marking

Marking: CE

Status LEDs

Status LEDs:

1 green LED for downloading (DL)

1 red LED for memory card or CPU flash failure (backup mode)

1 green LED for Ethernet MS (Ethernet port configuration status)

1 red LED for Ethernet MS (Ethernet port configuration error)

1 green LED for EtherCAT (network status)

1 red LED for EtherCAT (network error)

1 red LED for I/O module failure (I/O)

1 red LED for processor or system failure (ERR)
