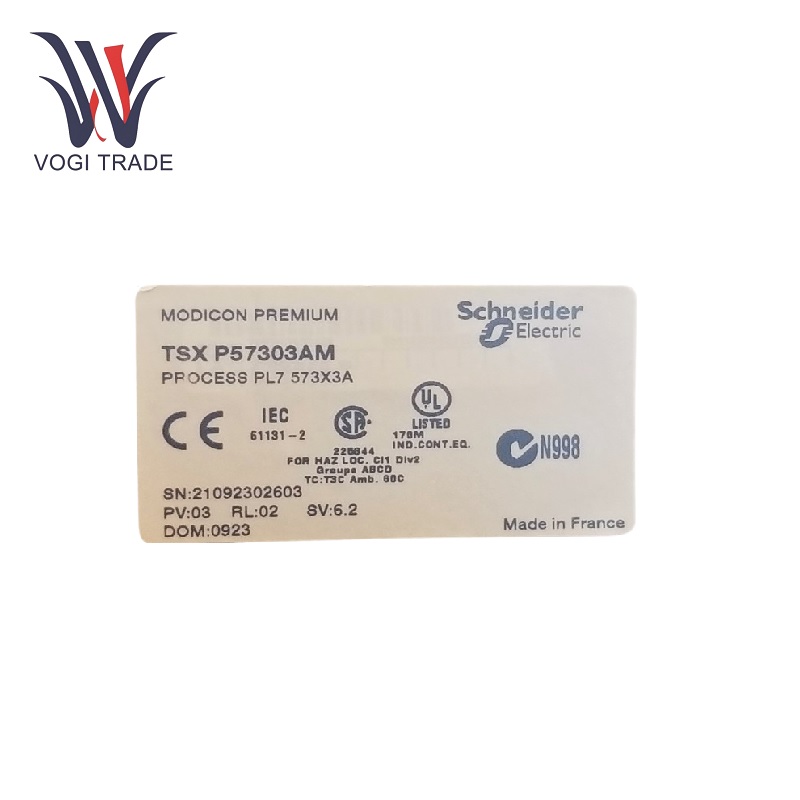

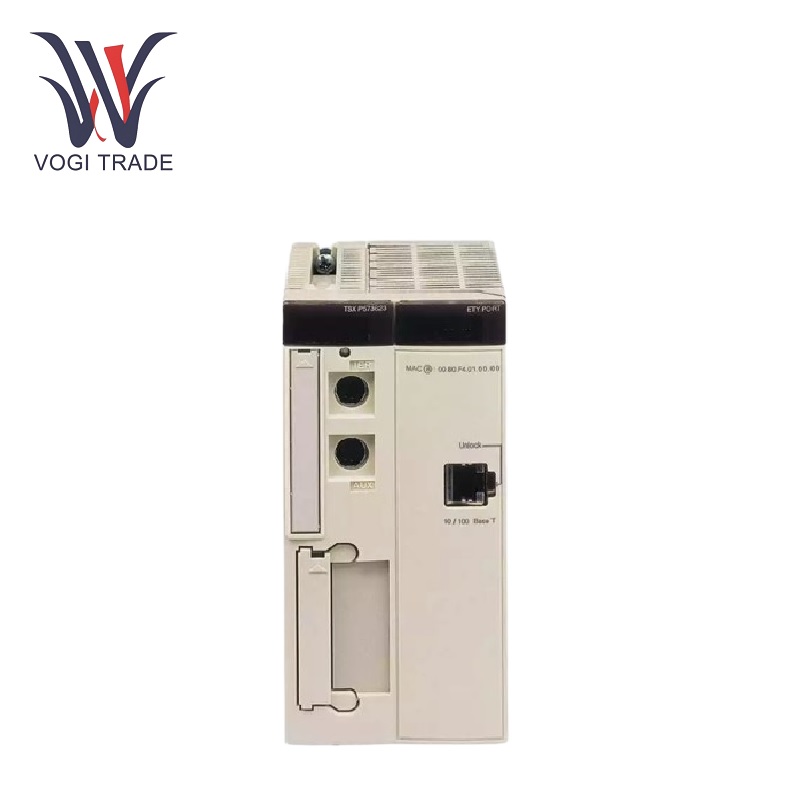

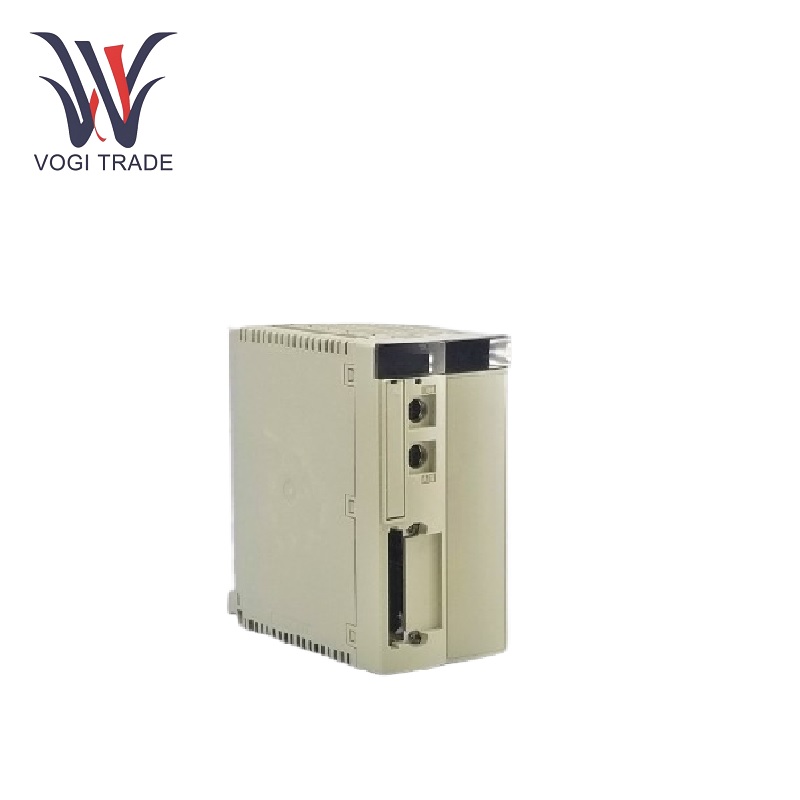

Schneider TSXP57303AM

Processor capacity: The processor size is 1024e/s, and the analog capacity is 80e/s, which can efficiently process large amounts of data and perform complex operations.

Number of channels: There is a certain number of channels for different applications: the number of channels for specific applications is between 0 and 24, while for core process control within 30 simple cycles, the number of channels is up to 10.

Memory: The internal RAM memory for data is 160kb, and the program RAM without PCMCIA card is 768kb. When the PCMCIA card is installed, 2688kwords of data memory and 384kwords of program memory are available.

Instruction execution time: Only 0.19µs for Boolean instructions without PCMCIA card, and 0.21µs with PCMCIA card. The execution time for word or arithmetic operations is 0.25 µs without a PCMCIA card and 0.42 µs with a PCMCIA card. Floating-point operations require 1.75 - 2.6 µs, independent of the PCMCIA card.

Communication Interface: Includes an integrated serial link with two female mini-DIN connectors; serial communication speeds can be 19.2 kbit/s or 115 kbit/s.

Power Supply: Requires a 5 V DC power supply with a current consumption of 1000mA.

Product Features

Powerful Data Processing Capability: Schneider TSXP57303AM has powerful processor capabilities that can handle multiple tasks simultaneously. Therefore, effective control and monitoring of industrial processes becomes easy. It can also process large amounts of data in real time, allowing complex automation systems to interact seamlessly.

Flexible Channel Configuration: The large number of available channels enables certain customized functions to meet application needs. Channels can be configured as various types of signals (analog or digital) to connect different field devices such as sensors, actuators, and motors.

Rich memory resources: Schneider TSXP57303AM is large internal memory (expandable via PCMCIA card memory) reserves ample reserves for stored programs, data, and static settings. Complex control algorithms are easy to implement, and historical data can be stored for analysis and troubleshooting.

Fast instruction execution: Short instruction execution time means the module can quickly respond to input signal changes and maintain appropriate output signal generation. This is very important in fast control applications such as motion control and high-frequency data acquisition.

Reliable communication: Built-in serial links and standard communication protocols ensure reliable data transmission between the module and other devices in the control system; it can communicate with other controllers, HMIs, and remote I/O modules for seamless integration and interoperability.

Diagnostic and indication functions: The module uses LEDs to indicate operating status, such as processor operating status, I/O module failure, configuration problems, or terminal port activity. Therefore, users can quickly identify problems and take appropriate corrective actions. Therefore, this helps minimize downtime.

Application range

Industrial automation: Schneider TSXP57303AM is widely used in process control in manufacturing plants, such as temperature, pressure, flow, and level control in the chemical, pharmaceutical, and food processing industries. It is able to control the movement of conveyors, robotic arms, and various other automated equipment.

Building Automation: In building management systems, it controls the operation of HVAC systems, lighting systems, and access control systems. It can adjust temperature and humidity settings based on readings from environmental sensors, control light intensity in relation to occupancy or schedules, and manage access to different areas within the building.

Energy Management: In power plants and energy distribution systems, this module can be used to monitor and control power generation, transmission, and distribution processes. It can measure and control parameters such as voltage, current, power factor, and energy consumption, allowing for efficient energy management and optimization.

Water and Wastewater Treatment: In many cases, this product can control the dosage of chemicals, monitor water quality parameters, and manage the operation of pumps, valves, and filters. In wastewater treatment plants, it can control the treatment process to ensure compliance with environmental regulations.
