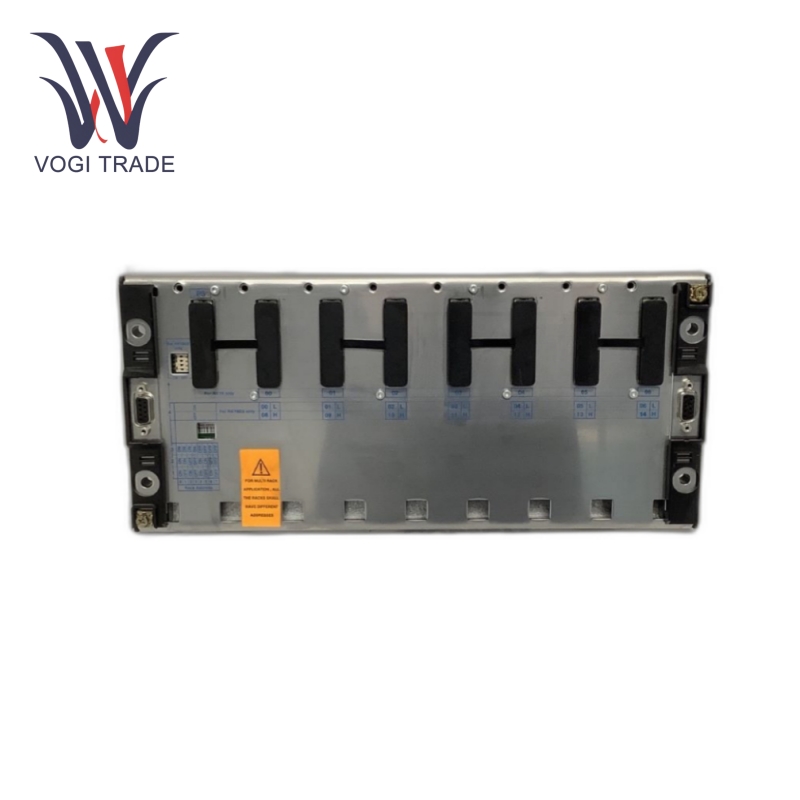

Schneider TSXRKY8EX

Usage parameters

Number of slots: 8 slots, providing enough space to accommodate multiple Modicon Premium PLC modules, which can flexibly configure and expand the control system.

IP rating: IP20 protects against solid objects larger than 12mm and vertical dripping, so it is suitable for working in relatively clean and dry industrial environments.

Operating temperature range: The ambient air temperature range is -0 degrees Celsius to 60 degrees Celsius when working, and the temperature range is -25 degrees Celsius to 70 degrees Celsius when storing. This makes it suitable for a variety of temperature ranges prevalent in industrial settings.

Humidity range: The relative humidity needs to be maintained at around 10%-95% without condensation when operating, and between 5% and 95% without condensation when storing, so as to provide stable performance under environmental conditions with different humidity levels.

Operating altitude: These products can work at an altitude of up to 2000m. Therefore, the product can also provide good service in industrial plants in different geographical locations and at different altitudes.

Product Features

Accommodates: The primary purpose of the Schneider TSXRKY8EX is to be an expandable chassis that accommodates Modicon Premium PLC modules. It provides a reliable and organized structure for integrating all types of I/O modules, processors and power supplies into the control system; thus making it customizable and expandable.

Easy to Install and Configure: With easy-to-install and labeled module slots, installation and configuration are simple. This user-friendly feature also reduces the time required for installation and maintenance, resulting in lower downtime and increased productivity.

Reliable Communications: Schneider TSXRKY8EX is inherently designed to provide a reliable channel for communication between modules, enabling data to be reliably moved within the control system in a well-coordinated operation, so that processes can be automated with less likelihood of disruption.

System Expansion: The expandability of the rack makes it easy to add modules when required. By injecting this flexibility into any monitoring or automation process, the expansion rack is therefore future-proof; it can be modified to allow new interventions without the need to completely remodel the existing installation.

Compatibility: The TSXRKY8EX is compatible with a wider range of Modicon Premium PLC modules, including dedicated application modules, TS XP57 processors and TSX PSY power supplies. This allows the Schneider TSXRKY8EX to be integrated into Modicon Premium-based automation systems or to build new systems with greater flexibility.

Application Scope

Industrial Automation: Schneider TSXRKY8EX is widely used in industrial automation and as a functional material in manufacturing plants, assembly lines, and process industrial control systems. It performs motor control, sensor monitoring, and process supervision to provide effective and precise control of industrial processes.

Building Automation: In building management systems, the TSXRKY8EX can even integrate and control various components such as HVAC (heating, ventilation, and air conditioning), lighting control, and access control systems. This enables optimal energy consumption, occupant comfort, and building security.

Food and Beverage Industry: Schneider TSXRKY8EX can be used in the food and beverage industry to control and monitor production processes; from temperature control of ovens and refrigeration units, flow control of ingredients to packaging line automation, it helps maintain product quality, improve production efficiency, and ensure compliance with food safety standards.

Pharmaceutical Industry: In the field of pharmaceutical manufacturing, it enables precise control of processes such as drug formulation, sterilization, and packaging. The reliable operation of the TSXRKY8EX is essential for the quality and consistency of pharmaceutical products and to meet strict regulatory requirements.
