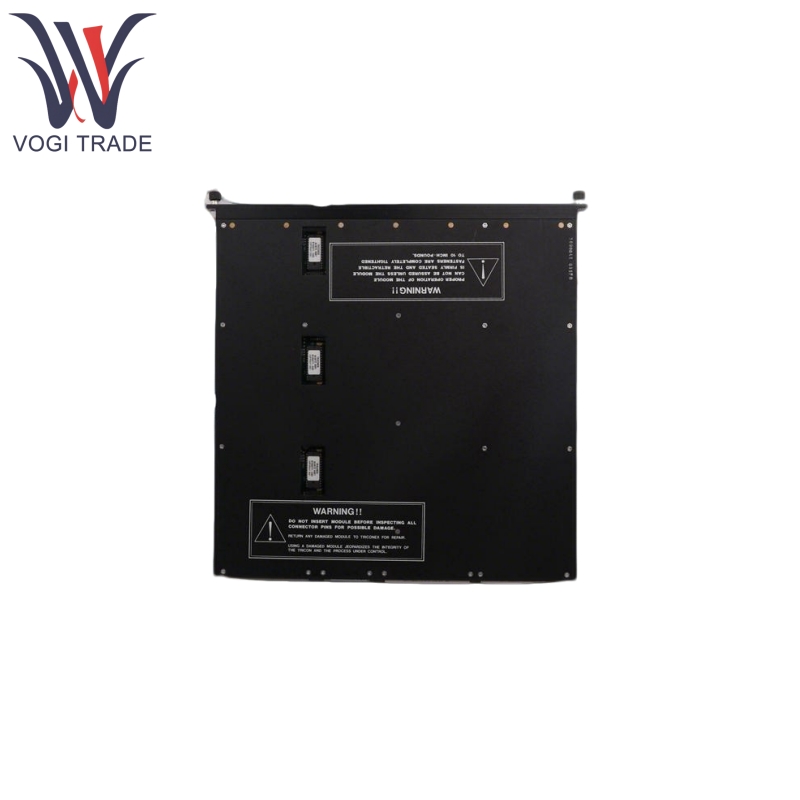

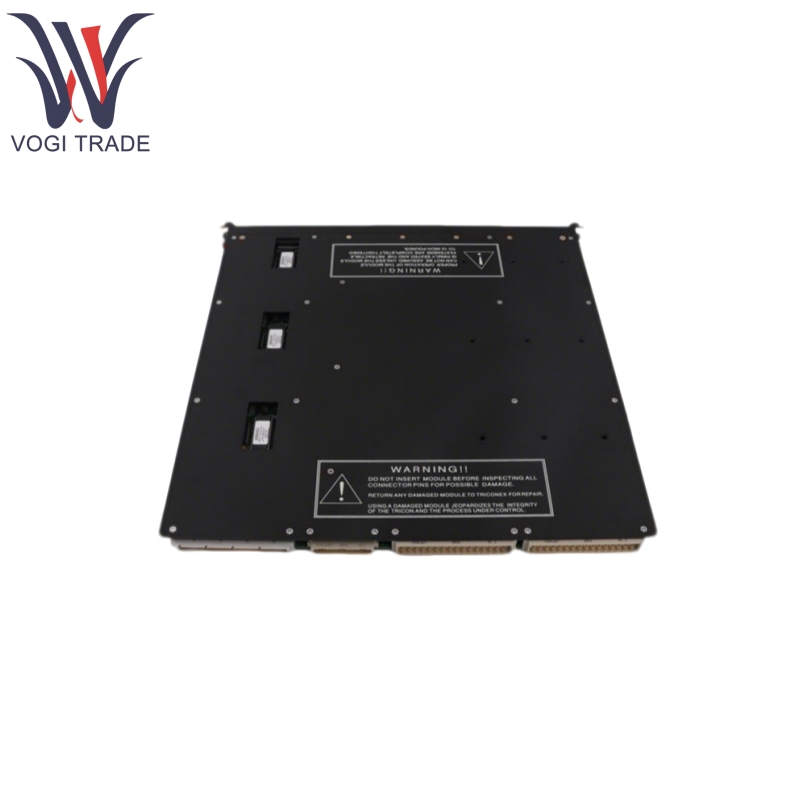

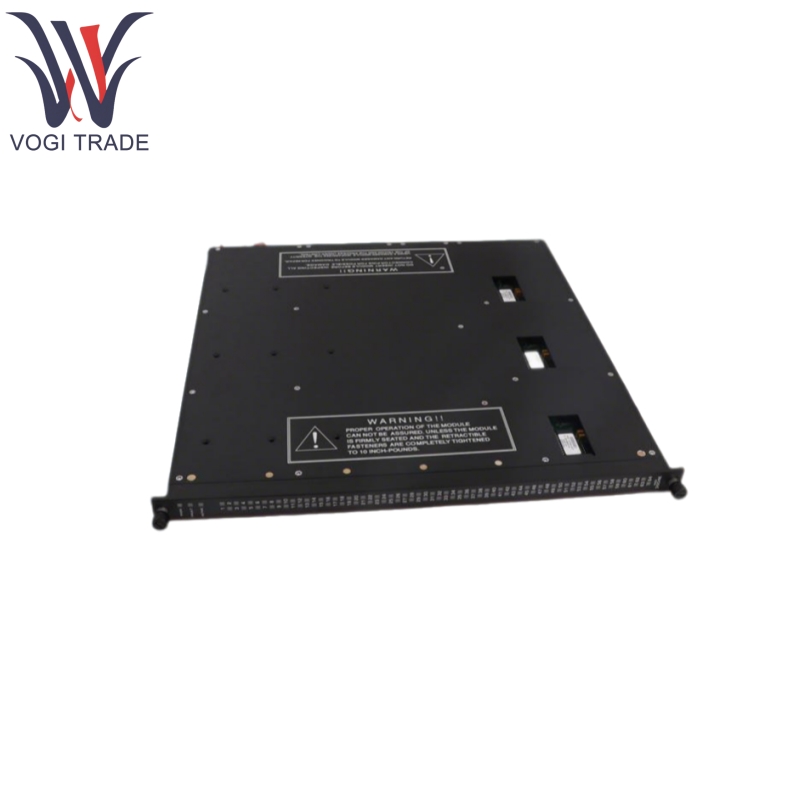

Brand: Triconex Description: High Density Digital Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Triconex 3504E has 64 digital input channels that are shared in groups of 8. With Triple Modular Redundancy (TMR) technology, all critical signal paths are 100% triplexed, which ensures that the system remains operational in the event of a single failure, continually validating the Tricon system's ability to detect state transitions and guaranteeing maximum system availability and safety.
|
Manufacture |
Triconex |
|
Model Number |
3504E |
|
Ordering Number |
3504E |
|
Catalog |
Tricon System |
|
Country Of Origin |
French |
|
HS CODE |
8471800000 |
|
Dimension |
34*17*17cm |
|
Weight |
0.8kg |
Product Features
Triconex 3504E each channel is equipped with a microprocessor that scans the input points, compiles the data and transmits it to the main processor, where the input data is voted on for integrity.
Triconex 3504E supports complete, continuous diagnostics for each channel, activating fault indicators and chassis alarms in the event of a channel failure.
Hot standby modules are supported with a separate external termination panel (ETP), and Triconex 3504E modules are mechanically keyed to prevent installation errors in the chassis.
Triconex 3504E channel is capable of independent signal conditioning between the field and Tricon, allowing it to be adapted to different field signaling environments.
Product Parameters
Channel Configuration: 32+32 channels (total 64 points), Triconex 3504E supports non-commoned design, each channel is independently isolated.
Signal type: 24V DC digital input, Triconex 3504E compatible with dry contact or active signals (such as switches, sensor status signals).
Input Characteristics: Triconex 3504E supports wire break (LB) and short circuit (SC) monitoring (optional feature, realized by KF module).
Response time: typical < 1ms (signal transmission delay from field to controller).
Operating temperature: -40°C to +70°C (industrial grade wide temperature design).
Protection class: IP20 (to be installed in a closed cabinet according to DIN EN 50022).
Vibration and shock: 5g vibration in the range of 10-500Hz; 15g peak shock (11ms half-sine pulse).
Product Applications
Industrial Automation Field:
Triconex 3504E High Density Digital Input Module can be used to monitor and control factory equipment and production lines, connect sensors and actuators, and process all kinds of digital signals to ensure the stable operation of the production process. In automobile manufacturing factories, it can monitor the running status of various equipment on the production line in real time, such as the position feedback of robot arms, start-stop signals of equipment, etc.; in the production of plastics machinery, it collects and processes the switching signals of the equipment and realizes the automation control.
Power System:
In power plants and other power facilities, Triconex 3504E High Density Digital Input Module is used to monitor the status of various devices. For example, it monitors the breaker status of the generator, the tap changer position of the transformer, and the action signals of all kinds of protection devices, etc. It provides data support for the safe and stable operation of the power system and guarantees the reliable supply of electricity.
Petrochemical Industry:
Triconex 3504E High Density Digital Input Module plays an important role in petroleum extraction, refining and chemical production. It can be used to monitor emergency stop systems (ESD), fire and gas detection systems, burner management systems, turbine control systems, process control systems and so on. In the oil and gas extraction site, it monitors the switching status of various types of valves, the operation of pumps, etc. In the chemical production plant, it collects the switching alarm signals of temperature, pressure and other parameters of the reaction kettle, so that it can trigger the corresponding safety measures in time in case of abnormalities .
Transportation Industry:
In rail transportation, Triconex 3504E High Density Digital Input Module is used to monitor the status of equipment in the rail signal system, such as the position of the turnout, the status of the signal lamps, etc., to ensure the safe operation of the train; in the automated transportation system of the automobile manufacturing plant, it is used to monitor the operation status of the material conveying equipment.
Hazardous Area Signal Isolation Scenario:
Triconex 3504E High Density Digital Input Module can be used in hazardous areas, such as petrochemical hazardous production areas, natural gas mining sites, etc., to safely and reliably collect and transmit signals in these environments where flammable and explosive gases or dusts are present, avoiding safety accidents due to electrical failures, as it is equipped with the functions of channel isolation and isolation of the on-site equipment, and some of the models comply with the relevant explosion-proof standards.
