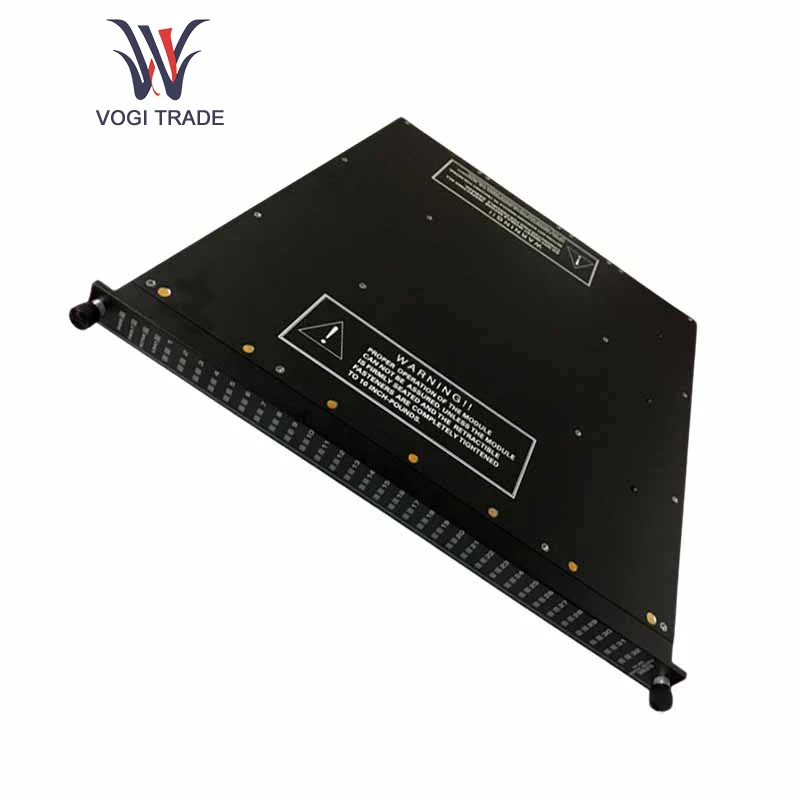

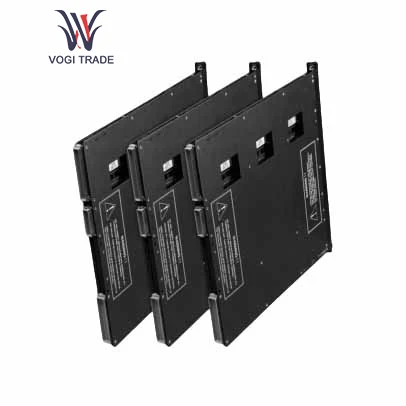

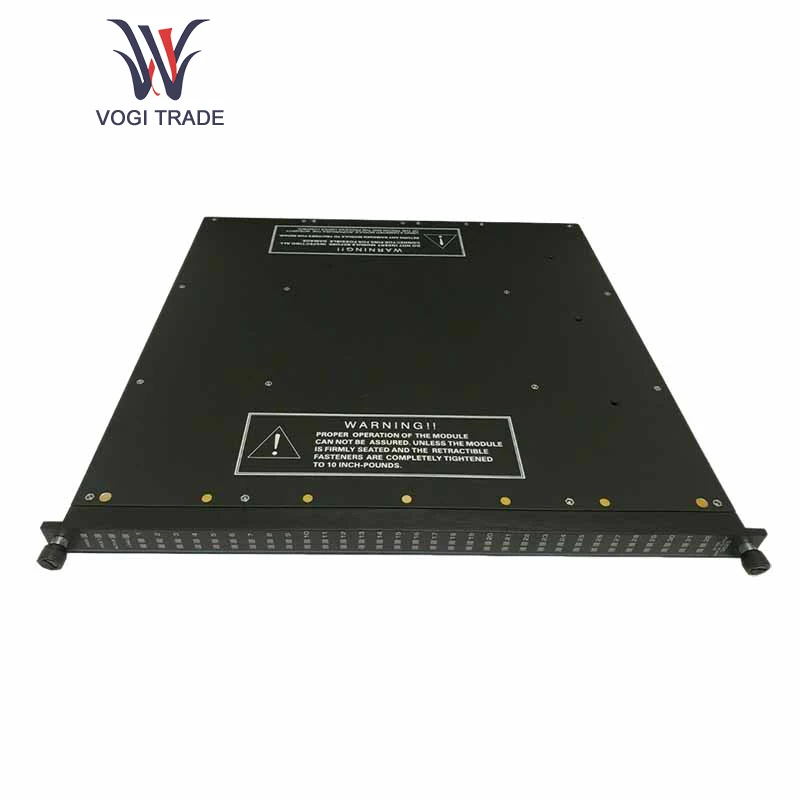

Triconex 3625

Details

Functional Characteristics of Triconex 3625:

It boasts powerful output capabilities. As a digital output module, it can provide 32 digital signals. It is capable of sending and processing digital signals simultaneously to control various devices, actuators, and different equipment on industrial production lines. Moreover, it can also be used to control the actions of multiple devices on large industrial processing lines.

Support for Multiple Signal Types:

Triconex 3625 supports electrical signals like the standard 24V DC. Its recommended output range is from 16V to 32V DC, and a better voltage can reach up to 36V DC, thus meeting the signal requirements of different industrial equipment. The output signal can drive a load of up to 2.6A at 2.6V DC. In terms of isolation, with respect to Eh, the voltage isolation is 13.8V, and the input voltage (working voltage) is less than 2.6V DC when it comes to secondary voltage input.

Easy Integration:

Triconex 3625 adopts a standard design and interfaces that are easy to access, facilitating its integration into existing industrial automation systems. When combined with other Triconex controllers or Programmable Logic Controllers (PLCs), it enables comprehensive monitoring and control over the entire industrial process.

Technical Parameters of Triconex 3625:

It measures 49 × 45.3 × 6.8 cm in size and weighs 2.85 kg. It has 32 isolated digital outputs, with a nominal voltage of 24V DC and a voltage range of 16 - 32V DC. The typical voltage drop is less than 2.8V DC at 1.7A. The load of the power supply module is less than 13 watts, and the point isolation can reach 1500V DC.

Petroleum and Natural Gas Industry:

It is used to control the opening and closing of pipeline valves, monitor parameters such as pressure and flow, and ensure the safety and stability of oil and gas production and transportation processes.

Chemical Industry:

Triconex 3625 can ensure the control of processes such as heating, cooling, and material conveying of reaction vessels, enabling the smooth progress of the chemical production process.

Power Industry:

It is mainly used to monitor the start-stop sequences of generators and the opening-closing sequences of circuit breakers, which are of crucial importance for the stability of power supply and the protection of equipment.

System Advantages of Triconex 3625:

Redundancy Design Ensuring Safety:

Triconex 3625 adopts a Triple Modular Redundant (TMR) design. Each output point has three independent channels, and a single output signal is generated through voting. Even if any one channel fails, the module can still operate as expected. This redundancy design significantly improves the reliability and security of the system and is highly suitable for nuclear power plants, chemical plants, oil and gas refineries, and other places with extremely high safety requirements.

Advanced Diagnostic Functions:

Firstly, there is the Enhanced Diagnostic Monitor v1.1.111 - a software application running under the Microsoft Windows XP system. It can provide a comprehensive view of the health status of the Triconex security system, enabling users to troubleshoot more effectively, reduce possible downtime, and lower maintenance costs.

Strong Compatibility for Easy Integration:

Triconex 3625 can be integrated into any popular Distributed Control Systems (DCS) and can serve as an Enterprise Control System (ECS) for infusion enterprises. It can not only quickly meet the integration requirements of different industrial control systems but also realize collaborative work and data sharing among systems.

In conclusion, with its excellent performance, high reliability, and wide applicability, Triconex 3625 has become a key component of the industrial automation control function, providing a powerful guarantee for the safe production and efficient operation of numerous industries.
