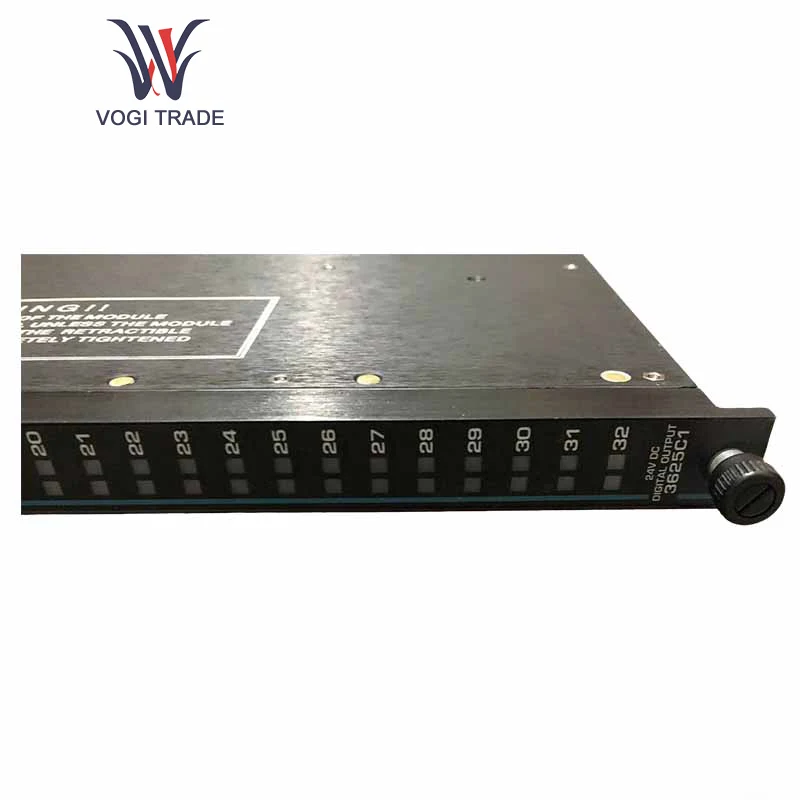

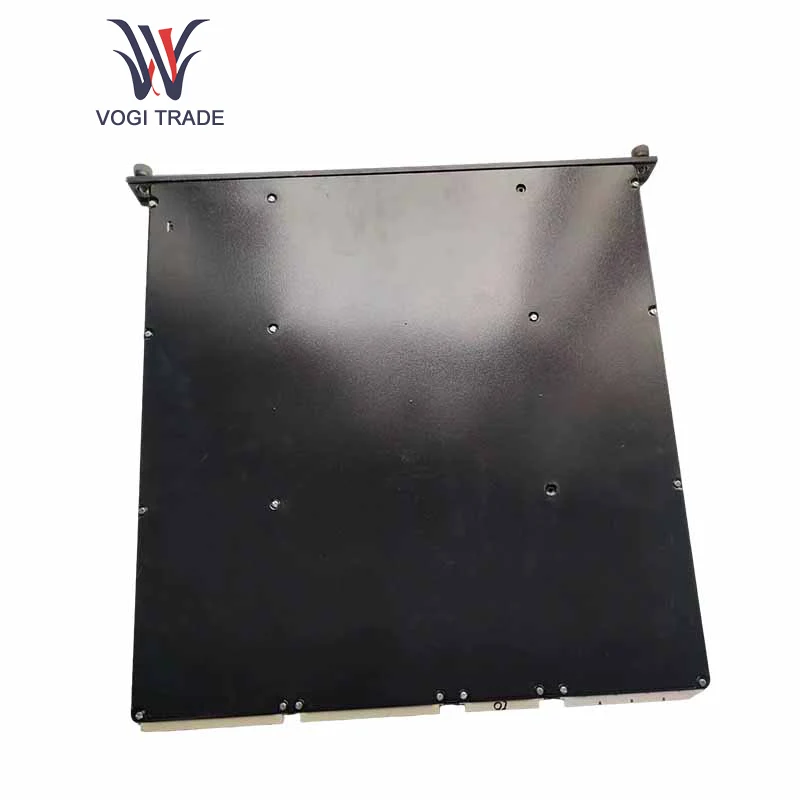

Triconex 3625C1

Details

Triconex 3625C1 is mainly applied in safety-critical industrial control fields, including Emergency Shutdown (ESD), Fire and Gas (F&G), Burner Management System (BMS), High Integrity Pressure Protection System (HIPPS), and Turbomachinery Control (TMC).

Functional Characteristics of Triconex 3625C1

Output Capability: The module is equipped with 16 digital output channels, and each channel has a current of 0.5A. Therefore, it can meet the requirements for controlling multiple devices or actuators and is suitable for controlling the actions of different equipment on industrial production lines.

Multiple Operating Modes: There are two operating modes available for this module, namely supervised and unsupervised. During the supervised output, it can monitor short circuits and overloads. For example, in the event of a short circuit or overload, it will interrupt the output to prevent damage. However, the unsupervised output will continue to operate when a fault occurs. This flexibility enables it to better meet the diverse needs of different application scenarios and different users.

Protection Function: It has short-circuit and overload protection functions, which can effectively protect the module and the associated equipment from damage caused by electrical faults, thereby improving the reliability and stability of the system.

Hot Swapping Function: It supports hot swapping operations, allowing the module to be inserted into or removed from the system while the system is running without affecting the operation of the entire system. This greatly facilitates system maintenance and upgrades and ultimately improves the availability of the system.

Technical Parameters of Triconex 3625C1

Communication Protocol: It adopts the Modbus RTU communication protocol to ensure stable communication and data interaction between the module and any other device.

Operating Temperature Range: It can operate normally within a wide temperature range from -40°C to 70°C, and the storage temperature range is from -40°C to 85°C, so it can adapt to various harsh industrial environments.

Humidity Range: It can operate effectively under different humidity conditions, that is, when the humidity ranges from 5% to 95% (non-condensing), it still has a positive impact on the reliability and stable state of the system.

Application Areas of Triconex 3625C1

Power Industry: This module can be used to control the start and stop sequences of synchronous generators or the opening and closing sequences of circuit breakers, playing a significant role in maintaining the stable power supply and equipment protection.

Elevator Industry: It can control various operating states of elevators, such as door opening, door closing, ascending, and descending, ensuring the safe operation of elevators.

Iron and Steel Industry: It participates in controlling various equipment in the steel production process, such as the heating of furnaces and the operation of rolling mills, ensuring the quality and efficiency of steel production.

Perhaps the most common advantages of the Triconex 3625C1 system lie in its high reliability and high security, which are the key considerations in industrial automation systems. The 3625C1 module adopts high anti-interference electronic components and follows a strict production process. It is adjusted to be able to operate stably for a long time under the harsh conditions of the factory and helps maintain the stability of industrial production operations after being applied.

High Security: The module complies with relevant safety standards such as SIL 3 and IEC 61508. Its redundancy design and fault monitoring functions further enhance security, enabling it to operate normally in nuclear power plants, chemical plants, oil and gas refineries, and other places with extremely high safety requirements.

Easy Integration: The standardized design and interfaces of Triconex 3625C1 support its integration with other Triconex controllers, Programmable Logic Controllers (PLCs), and various industrial automation equipment. This, in turn, facilitates the easy construction of a complete industrial control system and enables comprehensive monitoring and precise control of the production process.

In conclusion, the 3625C1 module of Triconex has become an essential choice for facilitating security management and ensuring that equipment production activities always operate within the scope of stable processes, thanks to its undoubted excellent performance and wide application in numerous industrial fields.
