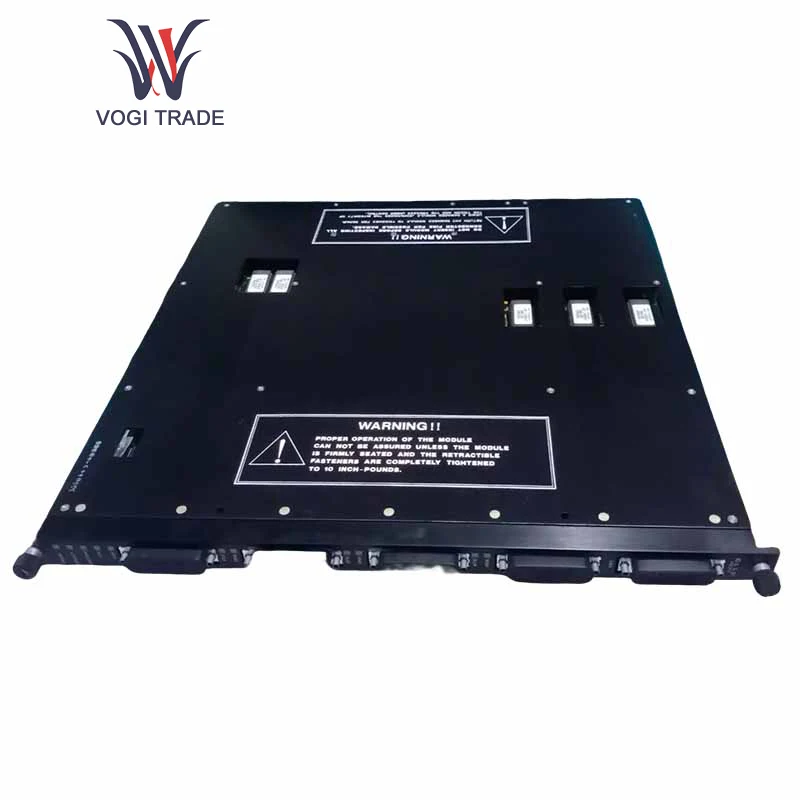

Triconex 3664

Details

Product Overview of Triconex 3664

Triconex 3664 is mainly applied in industrial fields such as petroleum, natural gas, and chemical industries that have extremely high requirements for safety and reliability. It plays a powerful role in supporting key functions like safety control and emergency shutdown in industrial processes.

Technical Characteristics

Dual Output Channels: Triconex 3664 is equipped with two digital output channels, which can provide clear digital signal output. It can meet the control requirements of numerous devices and actuators in industrial production, thus realizing the control over the operating states of various industrial equipment.

Reliability and Security: The Triconex brand is widely recognized for its high reliability and security in the industrial field, and the 3664 module inherits this excellent characteristic. It adopts advanced electronic components and strict production processes, making it highly suitable for long-term operation in harsh industrial environments. This ensures the continuity and security of industrial production and significantly reduces the risk of production accidents caused by equipment failures.

Hardware Fault Detection and Self-Diagnosis: This module is equipped with powerful hardware fault detection and self-diagnosis functions. During the operation process, it can monitor its own working status in real time. Once a fault is detected, it can issue an alarm and take corresponding measures, such as automatically cutting off the faulty channel. This improves the automation level and maintainability of the system and reduces the time and cost for manual troubleshooting.

Triple Modular Redundancy Architecture: Triconex 3664 adopts the Triple Modular Redundancy (TMR) architecture, which provides the most important guarantee for its high reliability. Even if one of the modules fails, the system can still rely on the other modules to maintain stable operation. This ensures the uninterrupted control of key industrial processes and greatly enhances the reliability and fault tolerance of the entire system. It is especially suitable for nuclear power plants, chemical plants, oil and gas refineries and other places with extremely high safety requirements.

High Configuration Flexibility: Triconex 3664 has a high degree of configuration flexibility. Users can set the parameters of the module according to application requirements, such as the type, frequency, and delay time of output signals, enabling it to have different degrees of adaptability in adapting to industrial control scenarios or process flows and meeting the diverse requirements of different users.

Technical Parameters of Triconex 3664

Working Voltage: It is usually 24 volts direct current. This working voltage range is applicable to most industrial sites, so the module can operate stably.

Operating Temperature Range: It ranges from -40°C to 70°C, and the storage temperature range is from -40°C to 85°C. The wide temperature adaptation range enables it to operate normally in various environments of different important industries without being affected by changes in environmental temperature, thus ensuring the reliability and stability of the system.

Application Fields of Triconex 3664

Petroleum and Natural Gas Industry: The digital unit fg-net-ll of Triconex 3664 is specially designed for long-distance applications in the petroleum and natural gas industry, including leak detection and location services in pipeline and fuel distribution networks. It can monitor the fg-od sensing cable with a length of up to 2400 meters. Once a leak occurs, the device will immediately send out alarm signals, send warnings to other systems, and provide operators with accurate information such as the location of the leak and the time of leak detection, so that operators can take timely actions to ensure the safety of oil and gas production and transportation.

Chemical Industry: In the chemical production process, the fg-od sensing cable can be used to control the regulating equipment for key parameters such as the temperature, pressure, and flow rate of reactors, as well as the actions of various valves, pumps and other actuators, ensuring the precise control and safe operation of the chemical production process, and then guaranteeing product quality and improving production efficiency.

System Advantages

Advanced Leak Detection and Analysis Functions: Besides the basic control functions, Triconex 3664 also has special functions such as "Dynamic Leak Evolution Analysis". By analyzing the alarm logs, it can accurately grasp the real-time leak situation and the evolution process of these situations over time, including information such as the number and order of addressable parts of leaks and the time when the problem occurred. In this way, operators can understand the leak situation in real time and comprehensively and formulate reasonable countermeasures.

Remote Monitoring and Alarm Functions: Triconex 3664 can send email alarms and SNMP traps to the Distributed Control Systems (DCS), Supervisory Control and Data Acquisition Systems (SCADA), and security protection systems connected to the local area network through the standard Ethernet connection to realize remote monitoring and alarm functions.

Therefore, with its excellent performance, rich functions, reliable stability and extremely high security, Triconex 3664 has become an outstanding digital output module in the field of industrial automation control and is widely used in many critical industrial fields, providing a powerful guarantee for the efficient, stable and safe operation of industrial production.
