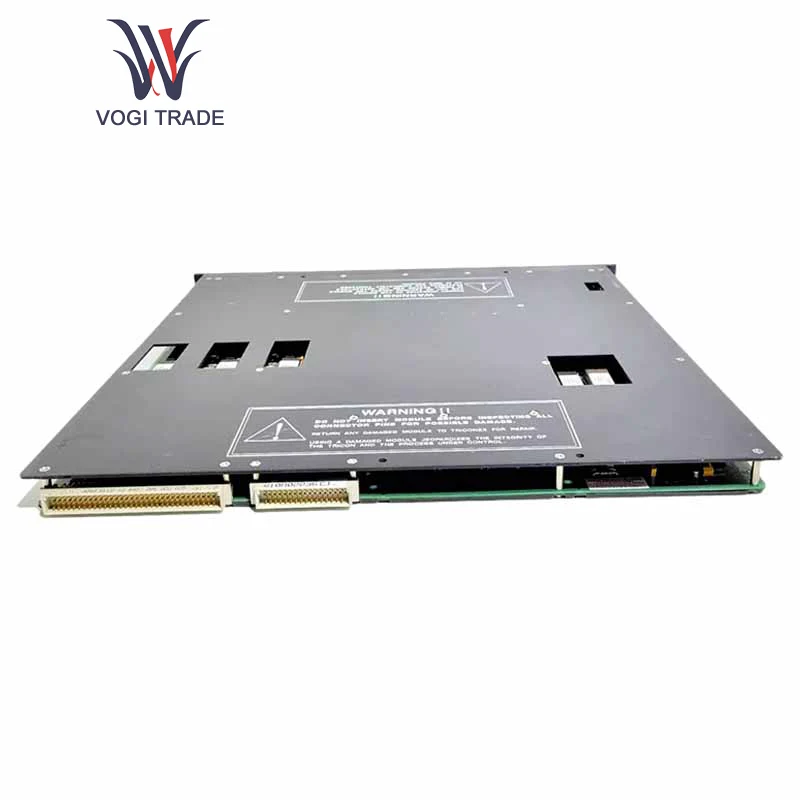

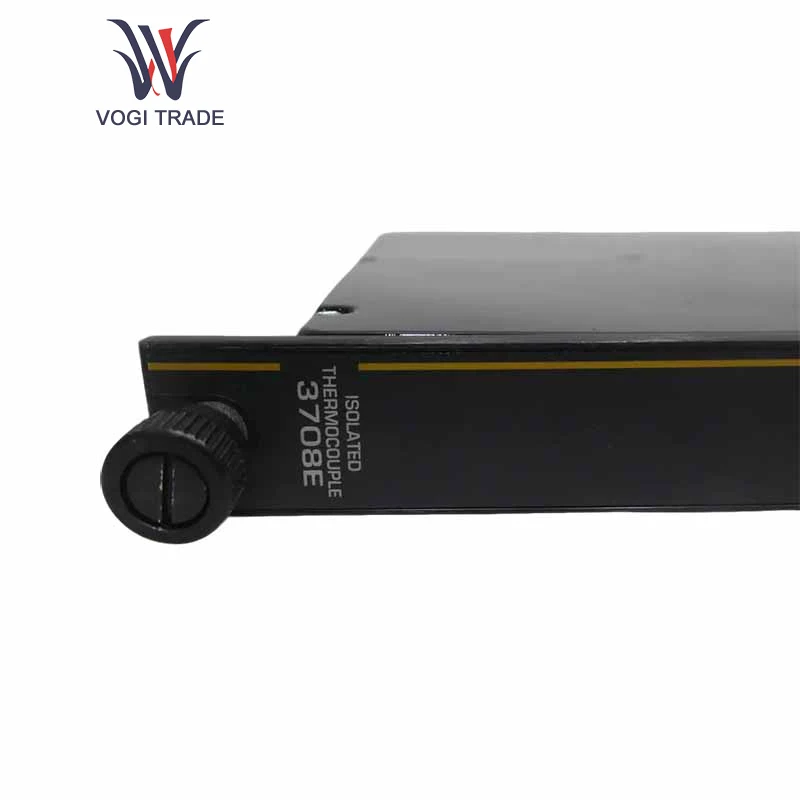

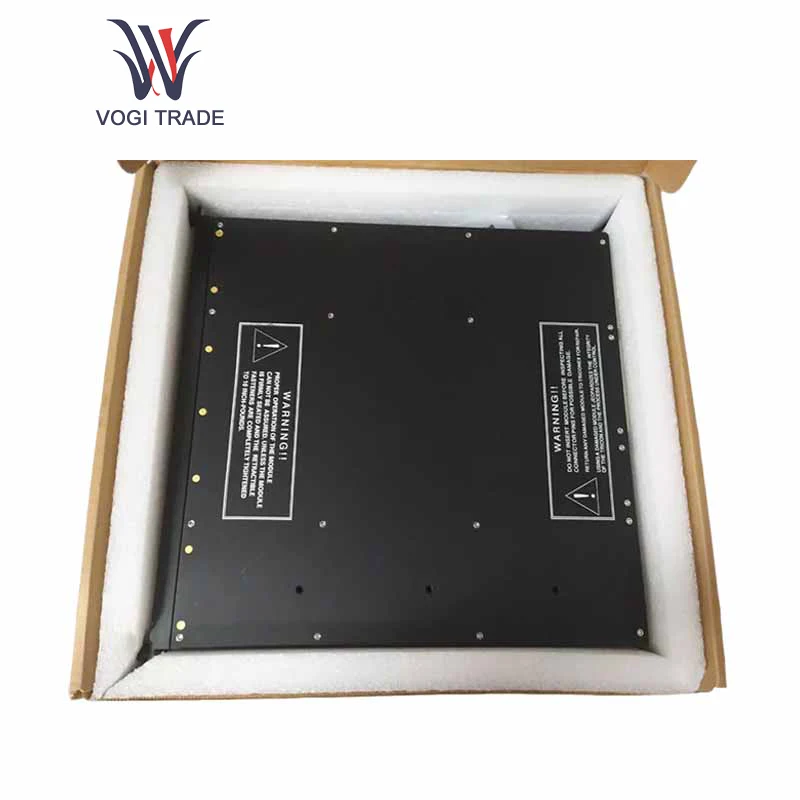

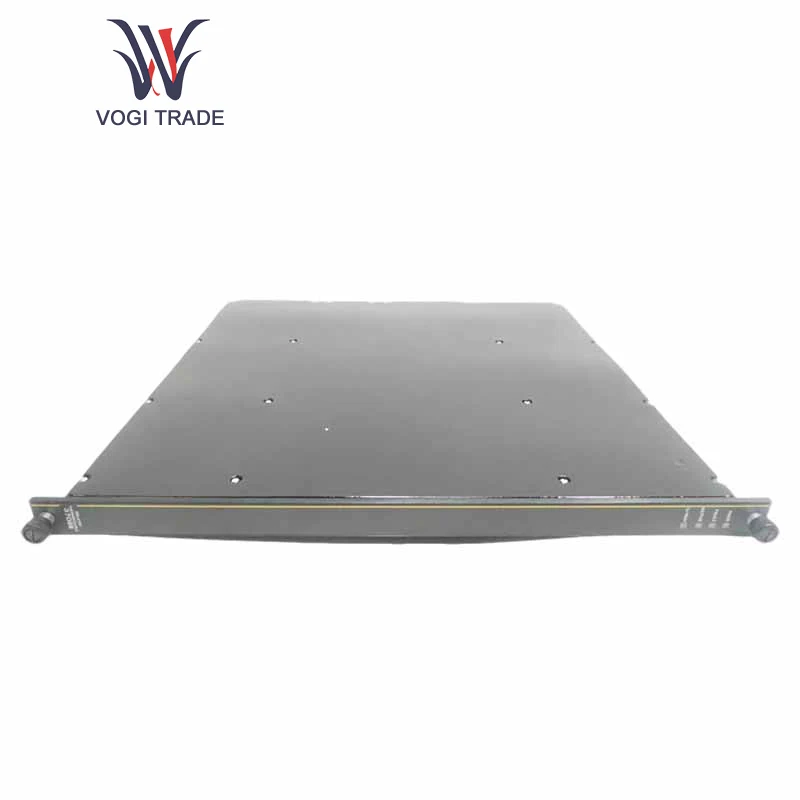

Triconex 3708E

Details

Product Information

Triconex 3708E is mainly applied in industries such as petroleum, chemical, power, and pharmaceutical industries, which have strict requirements for temperature monitoring and control. It can accurately receive the temperature signals sent by thermocouple sensors, convert them into transmittable electrical signals, and then transmit them to the main controller or the host computer system, thus realizing effective monitoring and precise control of temperature.

Functional Characteristics

Precise Temperature Measurement: Triconex 3708E has the ability of independent design and can achieve precise temperature measurement, reliably providing data support for temperature monitoring in the industrial production process. Each channel can conduct high-precision measurement to ensure the accuracy and stability of temperature data, meeting the strict requirements of industrial production for temperature control.

Support for Multiple Thermocouple Types: This device supports multiple types of thermocouples. Users can choose the appropriate thermocouple type according to the actual application scenarios and requirements, which enhances the universality and adaptability of the module and enables it to be widely used in different industrial temperature measurement environments.

Functional Characteristics: Testable and Diagnostic - It has powerful functions and can continuously conduct comprehensive detection on 1 to 6 channels. If a certain channel fails, the fault indicator will light up, and the chassis alarm signal will be activated to issue an alarm in a timely manner. Even if two channels fail, the module can still continue to operate to ensure the stability and reliability of the system framework.

Hot Standby Function: It supports the hot standby function, allowing for quick switching or replacement of faulty modules while the system is still running, which significantly improves the maintainability and availability of the system. It is especially suitable for the critical links in industrial production. In these links, the downtime caused by module failures will lead to various production losses.

Technical Parameters of Triconex 3708E

Input Channels: Each module contains three independent input channels. Each channel receives variable voltage signals from thermocouple sensors and performs related operations such as thermocouple linearization and cold junction compensation. After converting the results into degrees Celsius or Fahrenheit, it sends them to the main processor in the form of 16-bit signed integers, where each count represents 0.125 degrees.

Electrical Isolation: It has good electrical insulation characteristics - it can effectively prevent the spread of signal interference and electrical faults - and can ensure the safe and stable operation of the system, especially suitable for complex industrial field environments with high availability requirements.

Working Temperature Range: Its working temperature can usually vary within a wide range - it can cope with various harsh conditions in the industrial environment and ensure long-term stable operation. The specific working temperature range can be determined by referring to the product specifications.

Application Fields of Triconex 3708E

Petroleum and Natural Gas Industry: During the exploitation, transportation, and processing of petroleum and natural gas, Triconex 3708E can be used to monitor the temperatures of key parts such as wellheads, pipelines, and storage equipment to ensure the safe and stable operation of the production process and prevent safety accidents and production failures caused by abnormal temperatures.

Chemical Industry: Many chemical reactions and physical processes in chemical production have strict requirements for temperature. This module can accurately monitor the temperatures of equipment such as reactors, distillation towers, and heat exchangers, thus providing strong support for the precise control, quality assurance, production efficiency improvement, and product quality enhancement of chemical production.

Power Industry: In the power generation, power transmission, and power transformation processes, Triconex 3708E can be used to monitor the temperatures of power equipment such as generators, transformers, and switch cabinets to timely detect potential overheating problems, ensure the safe and reliable operation of the power system, and prevent equipment damage and power accidents.

System Advantages of Triconex 3708E

High Security: This module is equipped with a complete security mechanism and fault handling capabilities. In case of abnormal situations in the system, it can quickly issue an alarm and take appropriate protective measures to prevent the further expansion of accidents and ensure the safety of personnel and equipment.

Easy Integration: Triconex 3708E has good compatibility and openness and can be smoothly integrated with other Triconex products and various industrial automation equipment to form a complete industrial control system. It can realize information communication and sharing among systems, thereby improving the automation level of the production process and reducing costs.

In conclusion, relying on its rich functional characteristics, reliable technical parameters, wide application fields, and numerous advantages of the whole system, Triconex 3708E has become an ideal choice for temperature monitoring and control in the field of industrial automation control. It provides accuracy and reliability for temperature guarantees in many critical industrial processes, helping enterprises achieve efficient, stable, and sustainable development.
