Triconex 3805E

Details

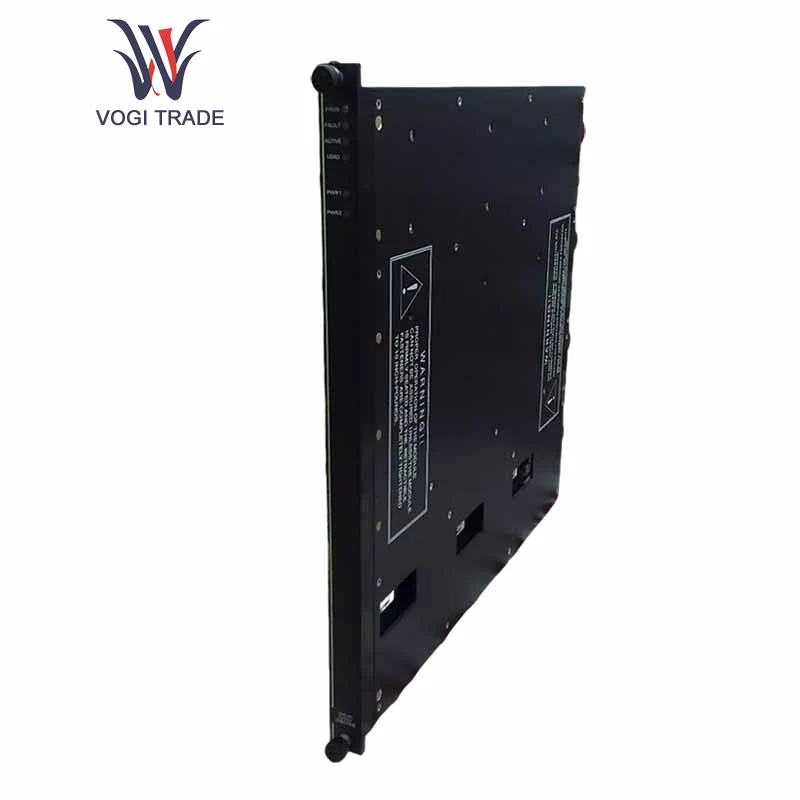

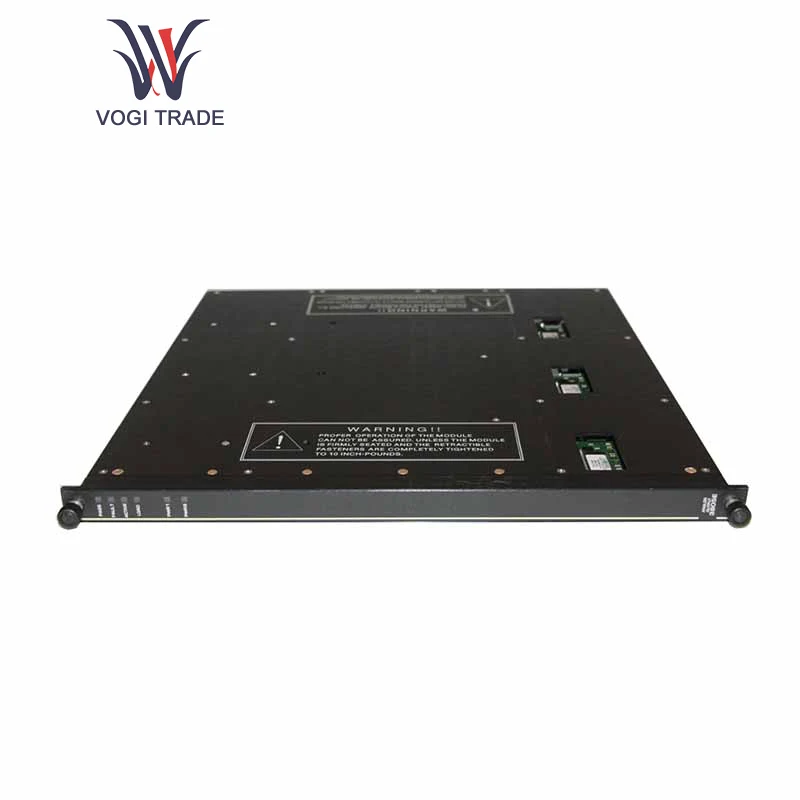

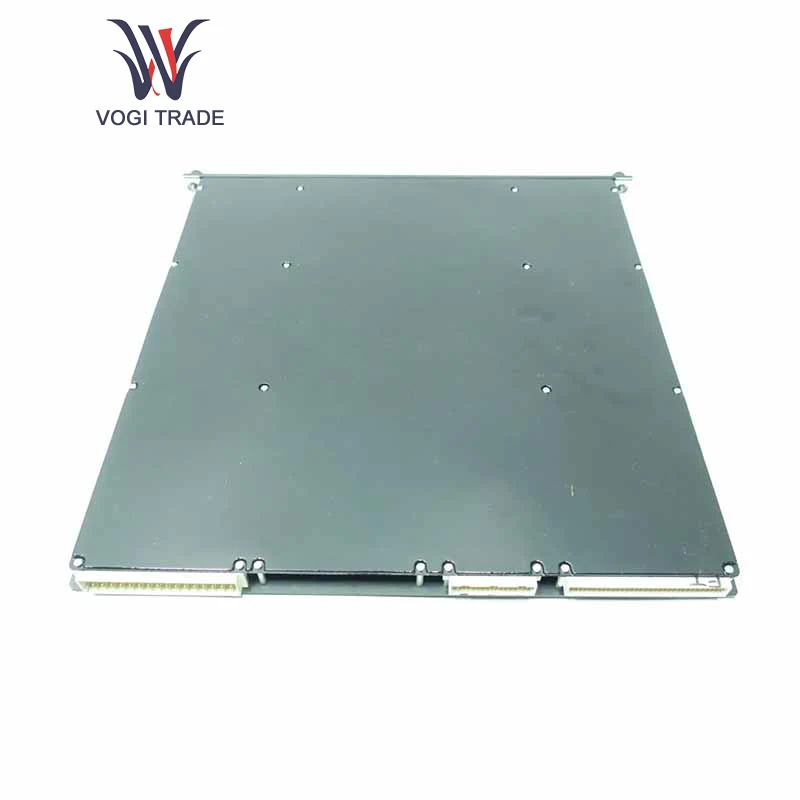

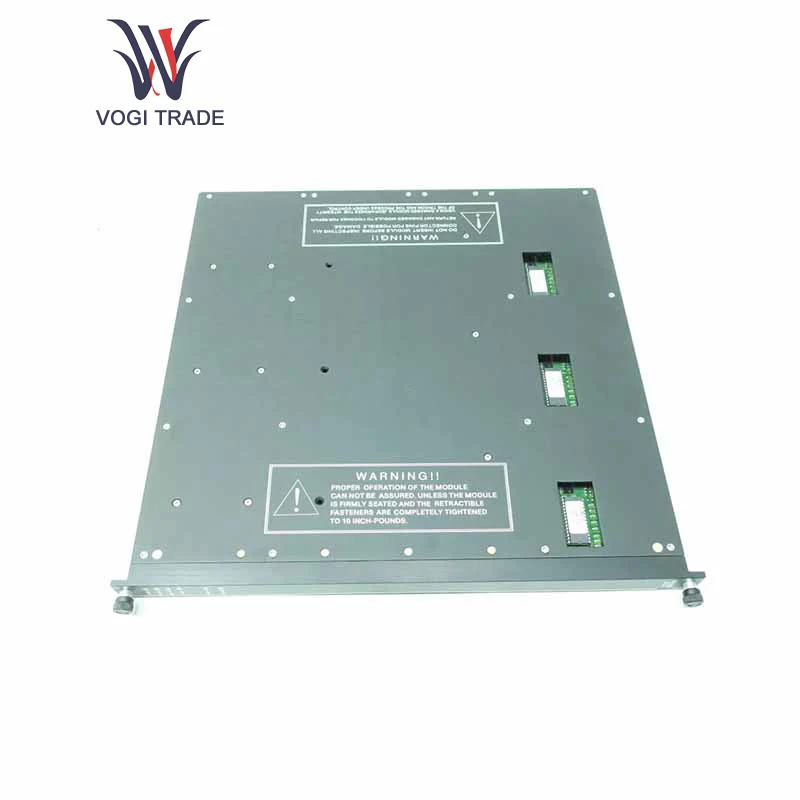

Product Description of Triconex 3805E

Triconex 3805E is a high-performance Programmable Logic Controller (PLC) with numerous powerful functions.

Performance Features of Triconex 3805E:

High-speed Data Acquisition and High-accuracy Control: With the aid of advanced ARM processors and FPGA technologies, it can monitor and control multiple industrial processes in real time and with high precision. It ensures high-speed data acquisition and high-precision control, meeting all the requirements of complex industrial automation control systems.

Multiple Input/Output Interfaces: Triconex provides a variety of interfaces, including digital input/output interfaces and analog input/output interfaces. It can adapt to the connection requirements of different devices and sensors and can be applied in various industrial scenarios.

Storage Expansion: The storage capacity can be expanded as required. That is to say, users can increase the storage capacity according to their own needs to support more complex and extensive control programs, thus enhancing the adaptability and expandability of the system.

Redundancy Processing and Safety Functions: It has redundancy processing functions, including a specific triple modular redundancy fault-tolerant architecture, as well as many safety functions such as over-current protection, over-voltage protection, and over-temperature protection. These features ensure the reliability and safety of the system, minimize the probability of failures, and stabilize industrial production.

Real-Time Monitoring and Alarm Functions: It has real-time digital signal monitoring and alarm functions, which can detect abnormal situations in real time and issue alarms in a timely manner, allowing staff to take immediate actions to prevent accidents.

Programmability: Users can customize the processing logic and control algorithms of digital signals according to specific control requirements, demonstrating high flexibility and customizability, and thus meeting the personalized requirements of different users in different industrial fields.

Rich Communication Interfaces: It supports multiple communication interfaces and protocols such as Modbus, Profibus, and Ethernet, facilitating integration and data exchange with other control systems and thus realizing the interconnection of factory automation systems.

Technical Parameters of Triconex 3805E:

Working Voltage: The working voltage is 24V. Compared with other voltage types, this voltage enables it to be compatible with most electrical systems in the industrial field, ensuring smooth operation.Bit Resolution: It is 12 bits, ensuring the accuracy of the output signal.

Output Current Range: The output current is 4 - 20mA. There are 8 output points, with common return and DC coupling and no isolation points. When the output is within the range of 4 - 20mA, the output accuracy can be less than 0.25% of FSR (0 - 21.2mA), and the branch fault switching time is less than 10 milliseconds.

Application Fields of Triconex 3805E:

Triconex 3805E has been widely used in industries such as petrochemical, oil refining, oil and gas, chemical, power stations, rail transit, aerospace, and nuclear industry. The system performs excellently in aspects like Equipment Safety Interlock System (ESD), steam turbine control, gas turbine control, anti-surge control, offshore oil platforms, and fire and gas monitoring and protection.

In conclusion, relying on its powerful functional characteristics, reliable technical parameters, and wide application fields, Triconex 3805E has become a well-known essential high-performance control product in the field of industrial automation control. It provides precise control for the production processes of many critical industrial fields, promoting enterprises to achieve efficient, stable, and sustainable development.
