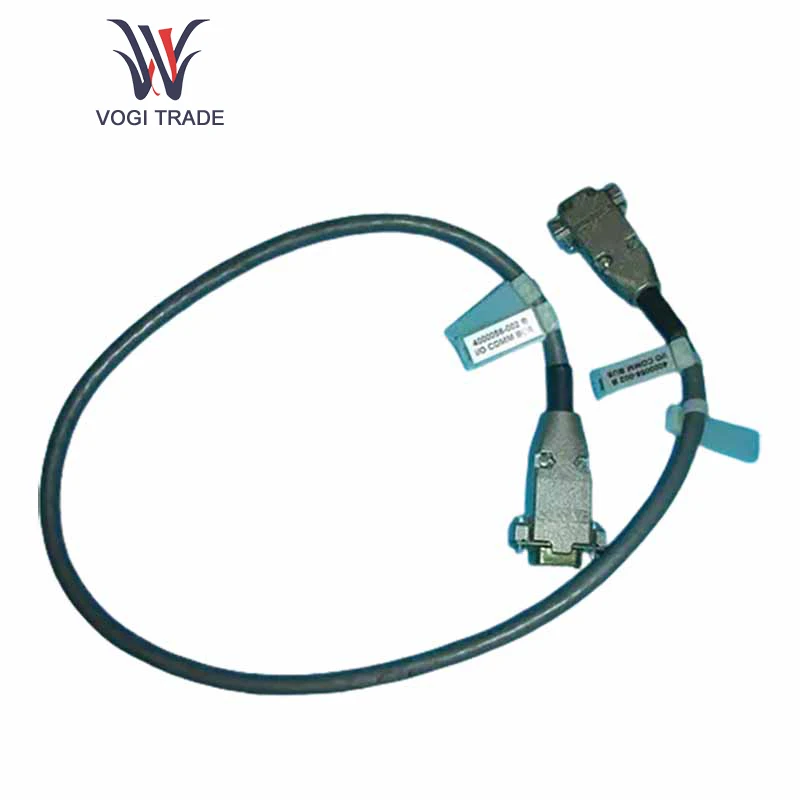

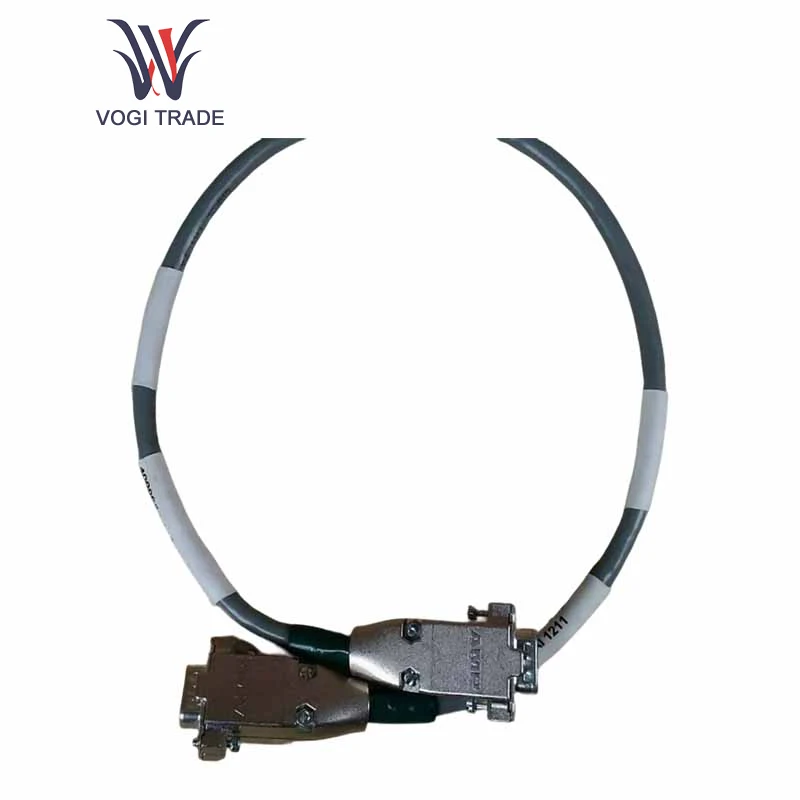

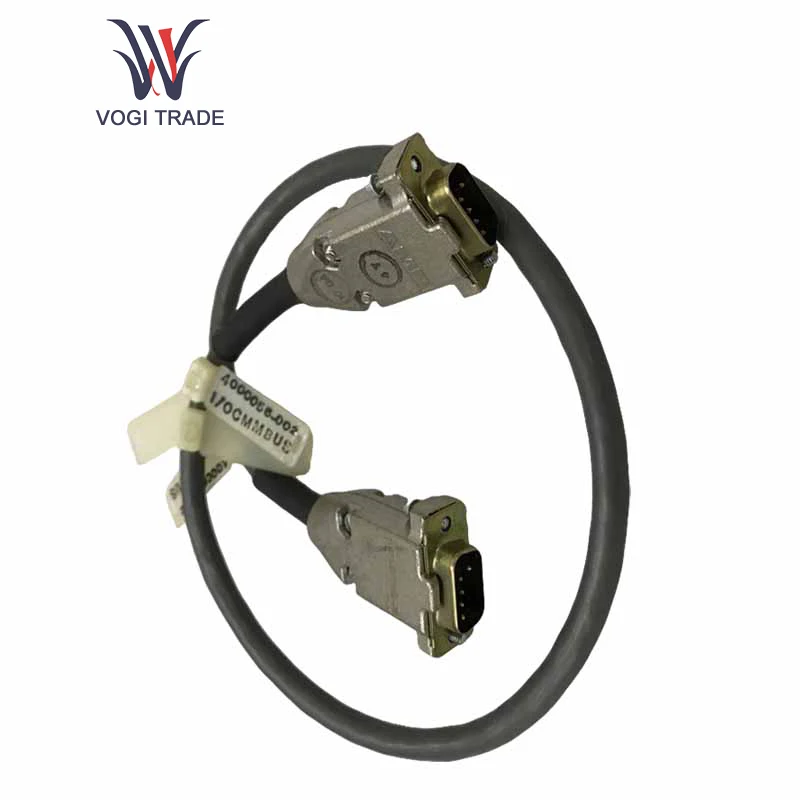

Triconex 4000056-002

Details

Product Introduction

The Triconex 4000056-002 is an I/O communication bus module, which has the following characteristics:

Exceptional Fault Tolerance of Triconex 4000056-002

It adopts the Triple Modular Redundancy (TMR) architecture. From the input module to the main processor and then to the output module, it is completely triple-modular in design. Each I/O module contains three independent channels, namely the so-called "branches". This design ensures that components with hard failures or those subject to internal and external transient failures will not interrupt error-free control, thus achieving the reliability and stability of the system.

Efficient Data Processing and Communication of Triconex 4000056-002：

After each channel of the input module reads the process data, it will transmit the information to its corresponding main processor. The three main processors communicate with each other through the dedicated high-speed bus system - Tribus. During each scan, these three processors will coordinate and exchange information with the two adjacent processors via Tribus. This module will conduct voting on the digital input data, compare the calculation results of the three main processors with the output data, and resend copies of the analog input data to each of the main processors for processing. The main processor executes the control program and then drives the output module with the output generated by the control program. The output module will conduct voting processing on the output data as close to the field as possible. In this way, during the process from voting to the final output to the field, the system can detect and compensate for any errors that may occur within this range.

Flexible Hot Standby Function of Triconex 4000056-002：

The system provides an optional hot standby module for each I/O module. During the operation process, if the main module fails, the hot standby module will immediately take over the control. In addition, the hot standby position can also be used for online system maintenance, thereby improving the availability and maintainability of the system.

Product Features of Triconex 4000056-002：

It has a size of 16 cm in length, 16 cm in width and 12 cm in height, and weighs approximately 0.8 kg. Thanks to its compact size and light weight, it is extremely convenient for installation and use. The working voltage is 220 volts, which is sufficient to adapt to the common industrial power supply environment and provides stable power support for the normal operation of the module.

All-encompassing Application Areas of Triconex 4000056-002：

Due to its high performance and high reliability, the Triconex 4000056-002 is widely used in modern industrial fields such as power, petroleum, mine hoisting, ports, heating, gas supply, water supply, sewage treatment, metallurgy, papermaking, textile, chemical industry and water conservancy. It can serve as an important part of many control systems, such as the DCS monitoring system of power plants, intelligent flat-tempered glass furnace systems, PLC programmable conveyor control systems, DCS distributed control systems, intelligent fire-fighting water supply control systems and computer-controlled constant-flow liquid medicine systems in chemical plants, enabling precise control and management of industrial production processes
