Triconex DI3301

Details

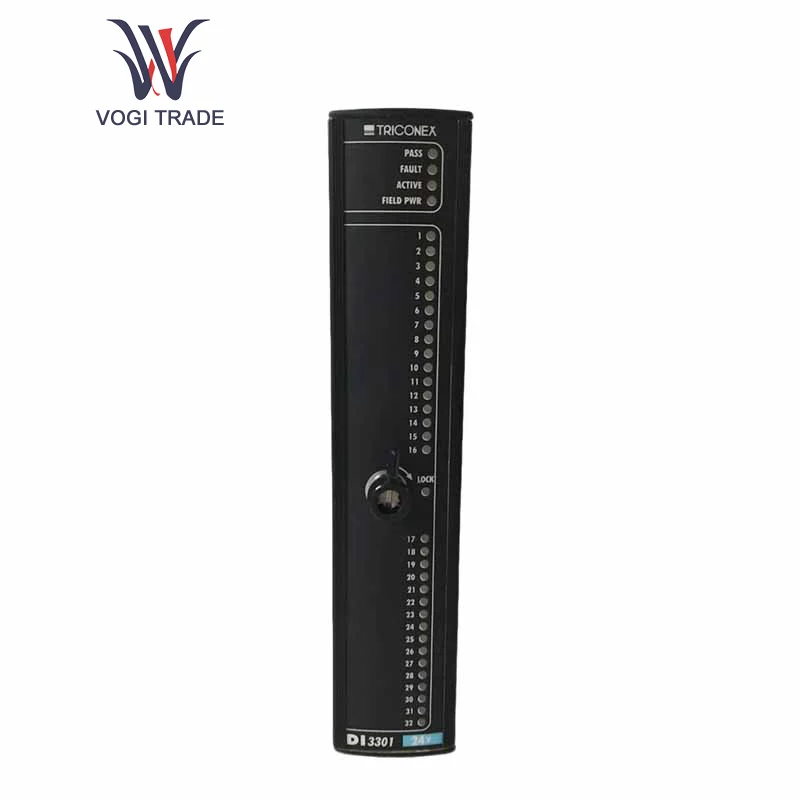

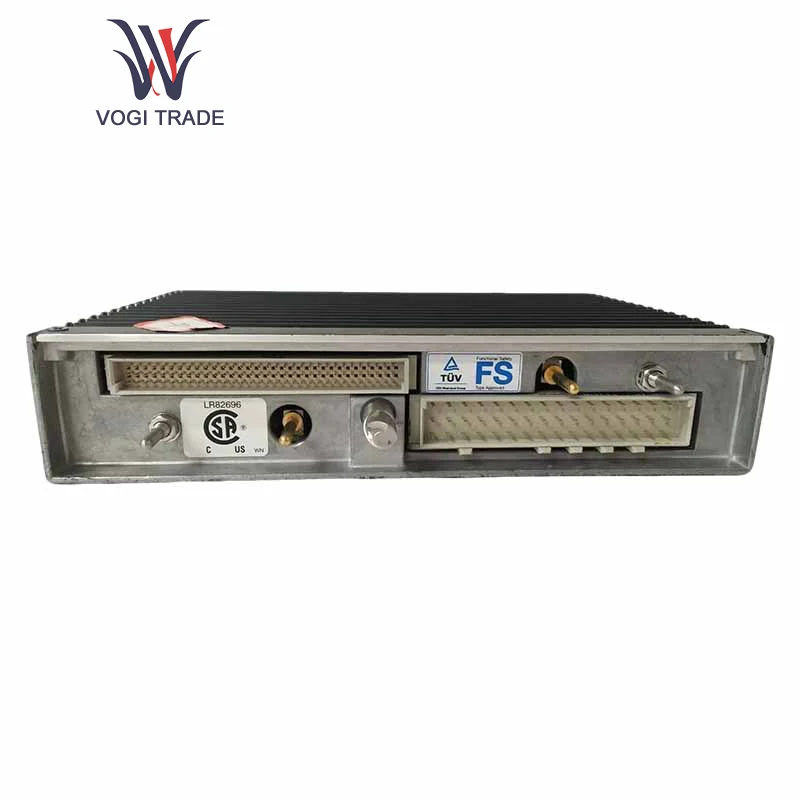

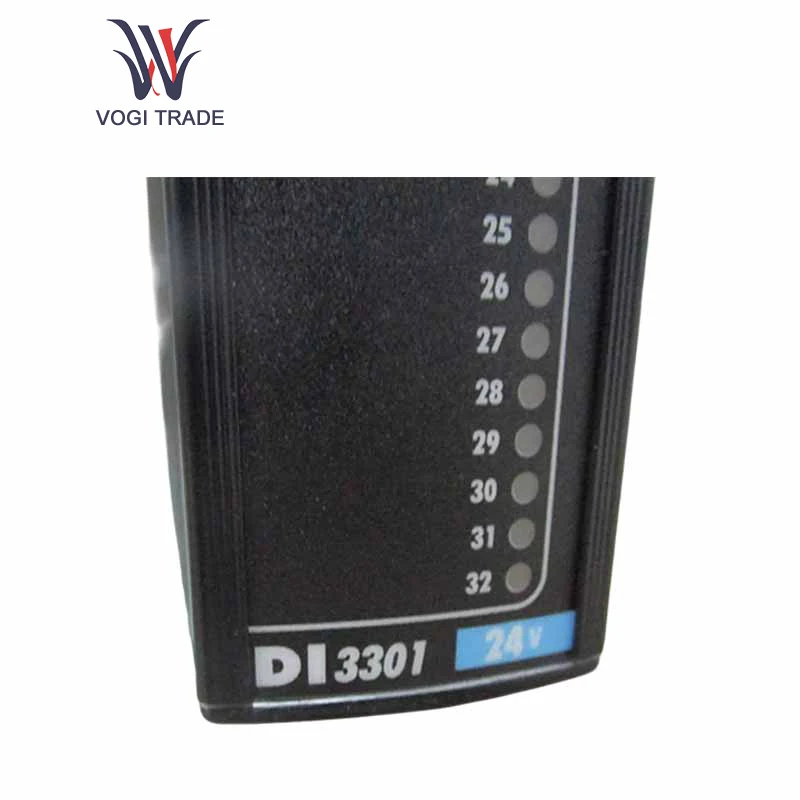

Triconex DI3301 is a high-performance digital input module, which belongs to the series of industrial automation control products manufactured by Triconex Company. It is mainly used to input digital signals from the industrial field into the control system, so as to achieve the control and monitoring of the operation process.

Functional Characteristics of Triconex DI3301:

Accurate Signal Acquisition: It can accurately collect digital signals in the industrial field, such as switch status, limit signals, alarm signals, etc., and convert them into signals that can be recognized by the control system, thus ensuring that the system receives accurate and reliable information from the site.

Triple Modular Redundancy Technology: It adopts the Triple Modular Redundancy (TMR) architecture. Through three identical channels, it independently executes application programs and conducts voting on all inputs and outputs by means of specialized hardware and software mechanisms, thereby highlighting the reliability and fault tolerance of the system. Even if some modules malfunction, the system can still operate normally.

Online Diagnosis and Repair: It has a built-in online diagnosis function, which can monitor the specific state of the module and the validity of the input signal. It can adaptively repair any detected defects and support "hot" maintenance while the controller is running without interrupting the operation of the controlled process, thus reducing system downtime and improving production efficiency.

Flexible Configuration and Expansion: It can be adaptively configured according to different applications. It supports multiple input types and voltage levels and can be connected with other Triconex I/O modules and PLCs and other equipment, enabling the system to be flexibly expanded and upgraded to meet the requirements of industrial automation control systems of different scales and complexity levels.

Application Areas of Triconex DI3301:

Industrial Automation Production Lines: Once applied to various industrial automation production lines, including automobile manufacturing, electronic manufacturing, and food processing, it can monitor the operating status of production equipment, material transportation and positioning, product counting, and activation detection, etc., thus achieving precise control and work allocation in the production process.

Chemical and Petroleum Industries: The chemical and petroleum production processes need to obtain the status of various equipment and confirm safety protection. The DI3301 can be used to collect the valve status, pump start-stop signals, etc. on-site to ensure the safe and stable operation of chemical and petroleum production.

Energy and Power Fields: Energy facilities, including power plants and substations, use it to obtain the switch status and protection signals of equipment and enhance petroleum signal transmission, thereby providing appropriate data support for energy management and equipment maintenance and ensuring the improvement of electrical energy utilization efficiency and the reliability of the system.

Technical Parameters of Triconex DI3301:

Number of Input Channels: It usually consists of several digital input channels. Its terminals include dry contact, DC voltage, and AC voltage signal types, which are sufficient to meet the need for simultaneous digital signal collection. These signals are used in various applications of industrial control systems.

Input Voltage Range: Different channels can support different input voltage ranges, generally including common industrial standard voltage levels such as 24V DC, 48V DC, 110V AC, 220V AC, etc. Users can choose the appropriate input voltage range according to the actual application scenario to improve the compatibility and adaptability of the system.

Product Advantages of Triconex DI3301:

High Reliability: Adhering to the consistent high-quality and reliability standards of Triconex, it adopts advanced electronic components and manufacturing processes, has good anti-interference ability and long-term stability, and can work stably in harsh industrial environments, reducing system failures and maintenance costs, ensuring the continuous and reliable operation of the production process.

Strong Compatibility: It has good compatibility with other Triconex automation products and common industrial automation equipment. It supports seamless integration with various control systems. The system has flexible expandability and upgradability, providing users with numerous choices and conveniences and reducing the difficulty and cost of system integration.

Easy to Use and Maintain: The operation of this module is extremely simple and easy to understand. Users can implement its operation through a few configuration and programming steps. In addition, the modular design reduces the risk of troubleshooting and maintenance, reduces the time and workload of maintenance personnel, and greatly helps to improve the temporary operability and availability of the system.
