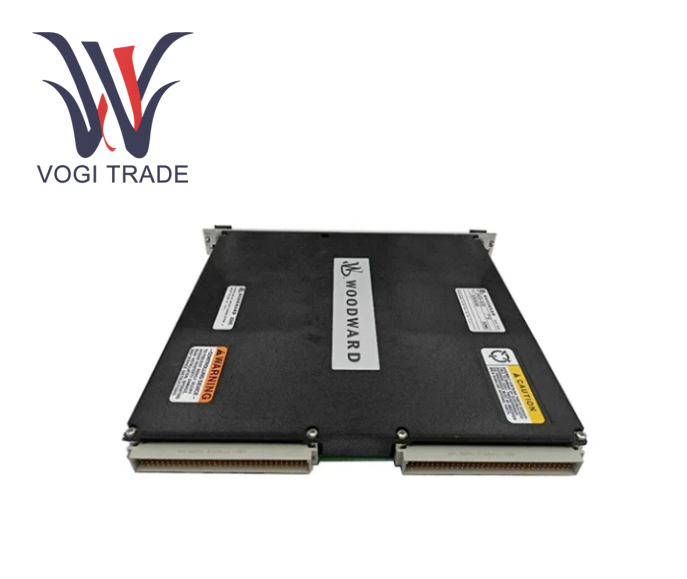

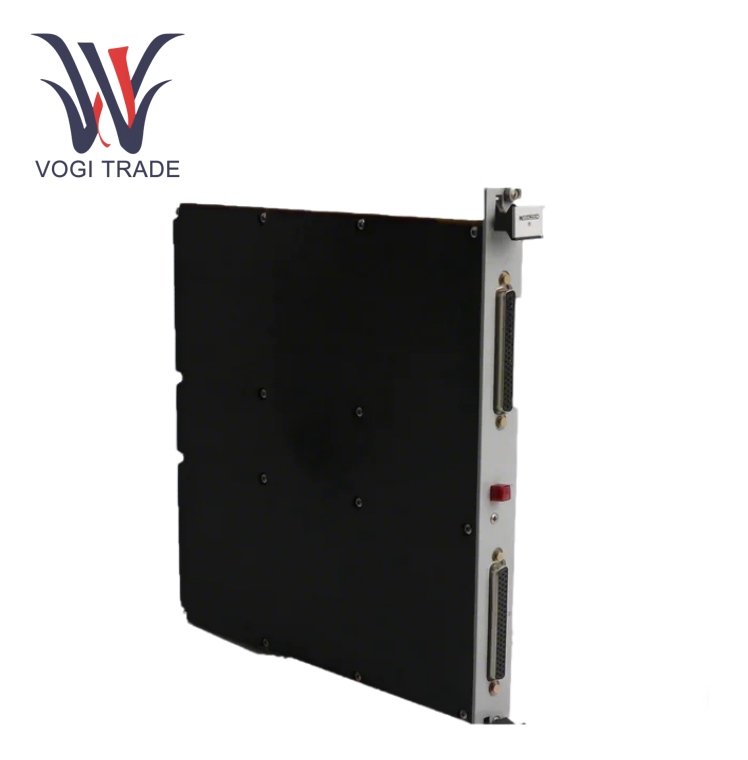

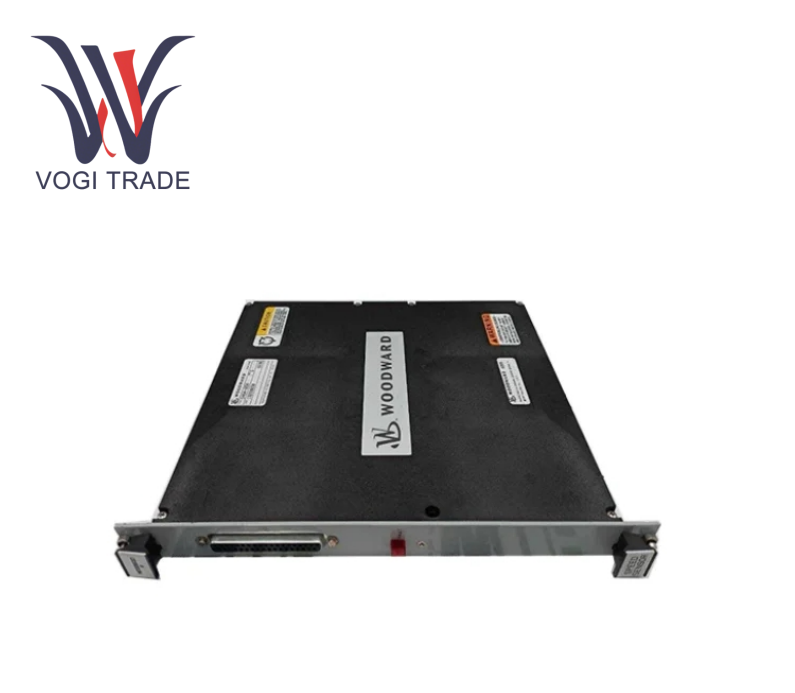

Brand: Woodward Description: Power Supply module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty：5 Payment Term: T/T Shipping Port: Shenzhen Woodward 5466-1000 is a battery module that is suitable for high-precision control scenarios of gas turbines, aircraft engines and generator sets, and can significantly reduce the risk of downtime.
|
Manufacture |
Woodward |
|
Model Number |
5466-1000 |
|
Ordering Number |
5466-1000 |
|
Series |
5466 |
|
Country Of Origin |
USA |
|
HS CODE |
8504902000 |
|
Dimension |
25*15*3cm |
|
Packing Dimension |
27*18*6cm |
|
Weight |
1.5kg |
Technical parameters
Input voltage: 24VDC
Power consumption: Maximum: 15W/Typical: 13.5W
Operating temperature: 0-55℃
Protection level: IP20
Controller compatibility: Woodward 2301 series, NetCon controller
Sensor interface: Supports LVDT, pressure/temperature sensors
System platform: Can be integrated into MicroNet digital control system
Features
1. High-reliability industrial-grade design
The Woodward 5466-1000 uses industrial-grade components and redundant architecture, supports stable operation in a large temperature range, and has passed IP20 dustproof certification.
Its anti-vibration and anti-electromagnetic interference design is particularly suitable for control tasks in harsh environments such as aircraft engines and gas turbines.
2. Modular expansion and hot-swap capabilities
The Woodward 5466-1000 supports modular installation and hot-swap functions, which can quickly expand I/O interfaces or replace faulty modules to reduce system downtime.
By integrating the redundant architecture of the MicroNet digital control system, the overall fault tolerance can be improved
3. Multi-protocol compatibility and system integration
The module is compatible with the Woodward 2301 series, NetCon controllers and third-party brands, and supports industrial communication protocols such as Ethernet/IP and Modbus.
4. Fast response and secure encryption
Woodward 5466-1000 has millisecond-level signal processing capabilities and is suitable for real-time control scenarios.
It supports HTTPS communication encryption to ensure data transmission security and meet the security compliance requirements of the control system in the petrochemical and power industries.
Application scenarios
1. Gas turbine speed control
Integrated into the DCS system of the power plant, it receives speed sensor data in real time, dynamically adjusts the fuel valve opening, and reduces the risk of shutdown.
2. Power system automation monitoring
As a DCS redundant node, it supports HTTPS encrypted communication, collects voltage and frequency data of the generator set in real time, and uploads it to the SCADA center to achieve load distribution and grid-connected synchronous control.
