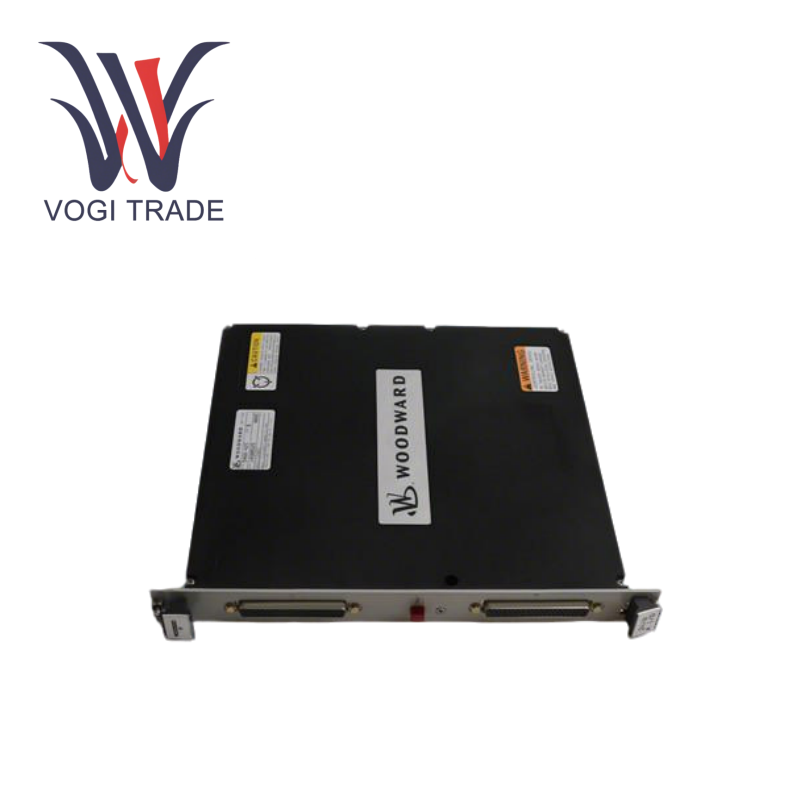

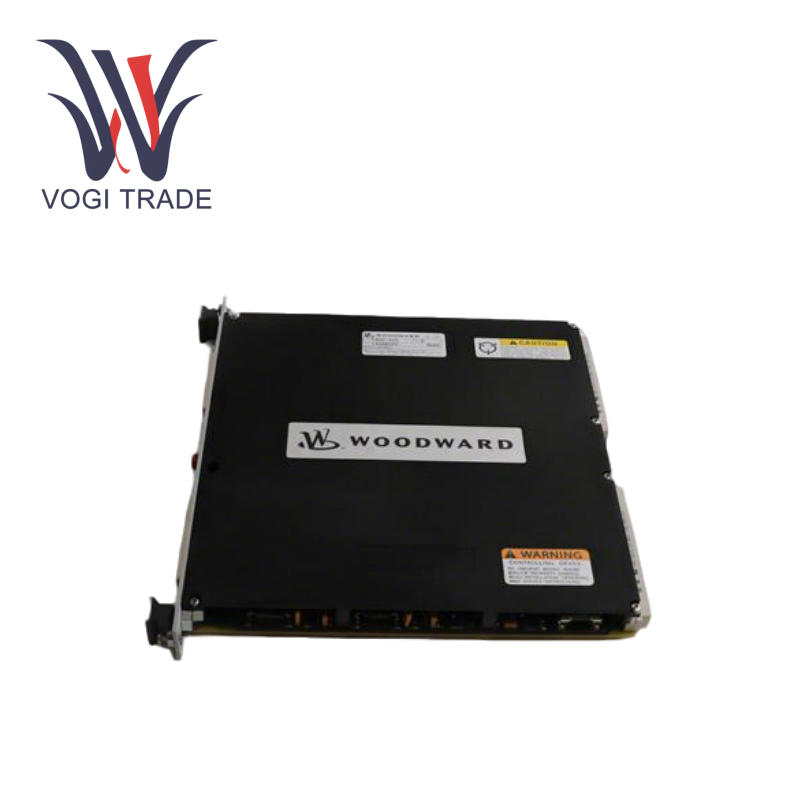

Brand: Woodward Description: :I/O module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty：5 Payment Term: T/T Shipping Port: Shenzhen WOODWARD 5466-425 is an I/O module designed for industrial scenarios that require continuous stable operation and precise control. It ensures high availability and fault tolerance of the system through three independent sub-racks and redundant power supply architecture.
|
Manufacture |
Woodward |
|
Model Number |
5466-425 |
|
Ordering Number |
5466-425 |
|
Series |
5466 |
|
Country Of Origin |
USA |
|
HS CODE |
8538900000 |
|
Dimension |
20*18*2cm |
|
Packing Dimension |
22*20*4cm |
|
Weight |
1kg |
Detailed technical parameters
Input voltage: 24V DC
Output voltage: 0-10V DC
Rated current: 5A
Input type: digital input)
Output type: analog output
Communication protocol: Modbus, Ethernet, RS-232/RS-485, CAN bus
Operating temperature: -40℃ ~ 85℃
Protection level: IP65
Cooling system: integrated efficient cooling design, supporting long-term stable operation
Redundant design: three-module redundant technology, dual redundant power supply architecture
Input channel: 24 digital input channels
Installation method: DIN rail or panel installation
Compatible plug-in: supports RTD temperature sensor plug-in
Industrial certification: meets high safety and reliability industrial standards
Functional features
1. High reliability and redundant fault-tolerant design
WOODWARD 5466-425 adopts three-module redundant technology, through the coordinated operation of three independent sub-racks, combined with dual redundant power supply architecture, to ensure the continuous and stable operation of the system in extreme industrial environments. Its fault-tolerant mechanism can seamlessly switch faulty modules to avoid downtime risks.
2. High-precision control and fast response capability
WOODWARD 5466-425 has built-in high-performance processor and real-time control algorithm, which can achieve millisecond response speed, meeting the needs of high-precision real-time control in scenarios such as factory automation and energy management.
3. Flexible programming and modular expansion
WOODWARD 5466-425 supports multiple programming languages such as user-defined logic programming, and can be seamlessly integrated through third-party devices.
Its modular design allows users to flexibly expand I/O modules or upgrade software functions according to needs.
4. Intelligent data management and communication integration
WOODWARD 5466-425 has built-in 1MB RAM + 4MB flash memory, supports real-time data acquisition and storage, and realizes data interaction with the host computer or SCADA system through the interface.
Application scenarios
1. Industrial high-precision control: used in factory automation production lines (such as trajectory control of automobile assembly robot arms)
2. Power generation : management of gas/steam turbines and diesel generator sets (such as synchronous control of Carter 2400kW units in data centers)
