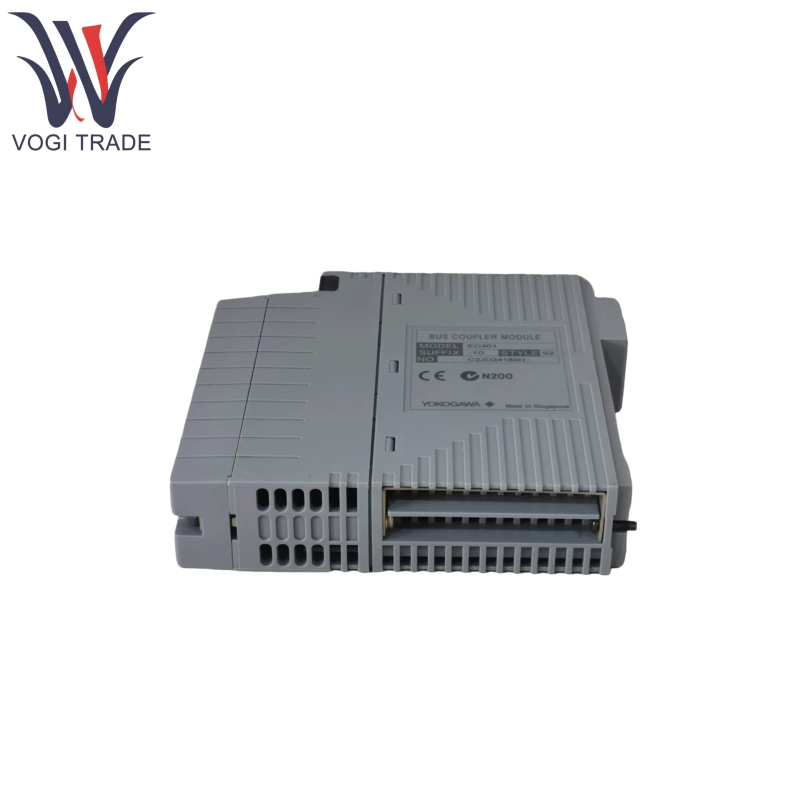

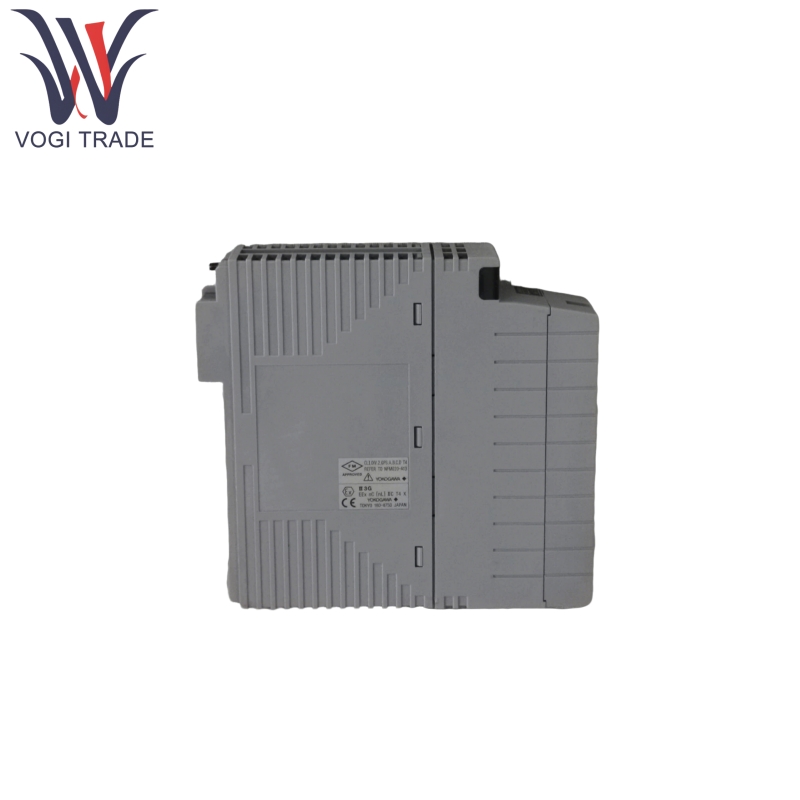

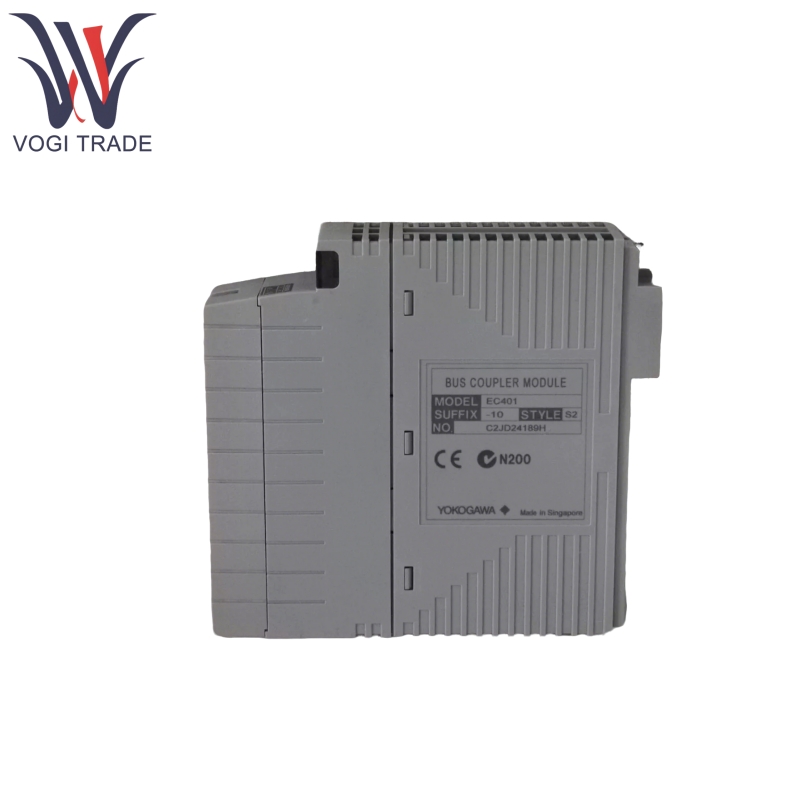

Brand: YOKOGAWA Description: ESB Bus Coupler Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen YOKOGAWA EC401-10 is a communication module connects the Field Control Unit and the Node Unit for ESB Bus, can be installed in the Field Control Unit for FIO. Installing two modules in the Field Control Unit for FIO enables a dual-redundant ESB bus can be set up.
|
Manufacture |
YOKOGAWA |
|
Model Number |
EC401-10 |
|
Ordering Number |
EC401-10 |
|
Catalog |
Centum VP |
|
Country Of Origin |
Japan |
|
HS CODE |
8543709990 |
|
Dimension |
16*16*6cm |
|
Weight |
0.4kg |
Product Features
YOKOGAWA EC401-10 provides EBS bus interface function
YOKOGAWA EC401-10 has maximum connectable 9 units (specifically, up to 9 units of ANB10S, ANB10D, ANT401, ANT411, and ANT421 can be connected to the EC401)
YOKOGAWA EC401-10 has transmission speed (128 Mbps for I/O module data transmission) and transmission distance (Maximum 10m)
YOKOGAWA EC401-10 current consumption is 0.5 A.
YOKOGAWA EC401-10 explosion-proof versions are available in models with explosion protection (suffix - E) and non-explosion-proof standard models (suffix - 5).
Compatible Supporting Equipment
YOKOGAWA EC401-10 compatible with FCU, node unit, processor module, auxiliary components.
Field Control Unit (FCU):
AFV30S, AFV30D, AFV40S, AFV40D, A2FV50S, A2FV50D, A2FV70S, A2FV70D, and others.
Node Unit:
ANB10S, ANB10D, ANT401, ANT411, ANT421 (up to 9 can be connected).
Processor Module:
Style Code S3 and higher are compatible with the CP471 processor module.
Auxiliary Components:
dummy module (used to cover slot 8 in non-redundant configurations), ESB bus cable, explosion-proof enclosure (for -E models).
Product Specification
The drawing and table below include the YOKOGAWA EC401-10
