YOKOGAWA EC401-51

Product Feature

YOKOGAWA EC401-51 provides a single-port ESB bus interface, which serves as a communication bridge between the Field Control Unit (FCU) and the Node Unit (NU), realizing efficient data transmission.

YOKOGAWA EC401-51 can be configured with dual redundant ESB buses by installing two modules in slots 7 and 8 of the FCU, which greatly improves the reliability of the system communication and avoids interruption of communication caused by a single point of failure.

YOKOGAWA EC401-51 flexible adaptation for a non-redundant bus, the module must be installed in slot 7 of the designated field control unit, and slot 8 must be covered with a dummy module. For dual redundant buses, slots 7 and 8 are occupied simultaneously.

Product Applications

Industrial automation control system:

YOKOGAWA EC401-51 is mainly used in Distributed Control System (DCS) as a communication hub for small and medium-sized systems, connecting field control units and various types of node devices.

Process control field:

YOKOGAWA EC401-51 is widely used in production process control in petrochemical, electric power, metallurgy, pharmaceutical and other industries, such as production line equipment status monitoring, process parameter acquisition and transmission and other scenarios.

Explosion-proof environment scenarios:

YOKOGAWA EC401-51 with explosion-proof protection model (-E) is suitable for the presence of flammable and explosive gases or dust in hazardous areas, such as the periphery of the chemical reactor, oil and gas processing equipment.

Scenario with high reliability requirements:

YOKOGAWA EC401-51 can realize uninterrupted communication through dual redundancy configuration in situations that require high communication continuity (such as auxiliary control system of nuclear power plants and control of large units).

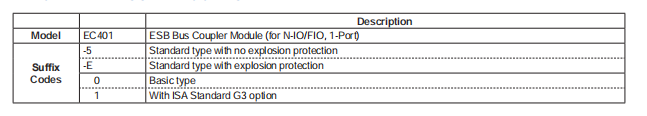

Ordering Information

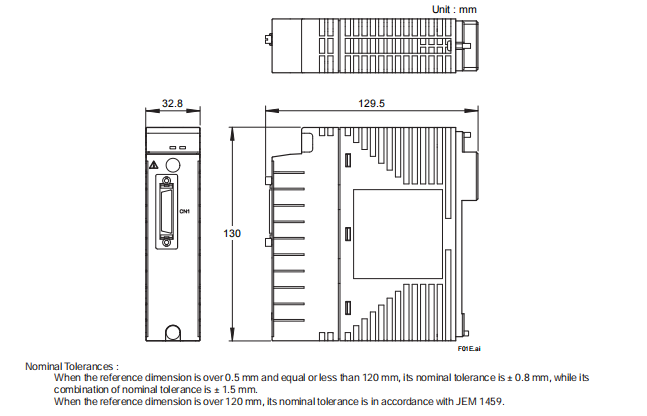

The product detail drawing and datasheet of the YOKOGAWA EC401-51 can be found in the following pictures.
