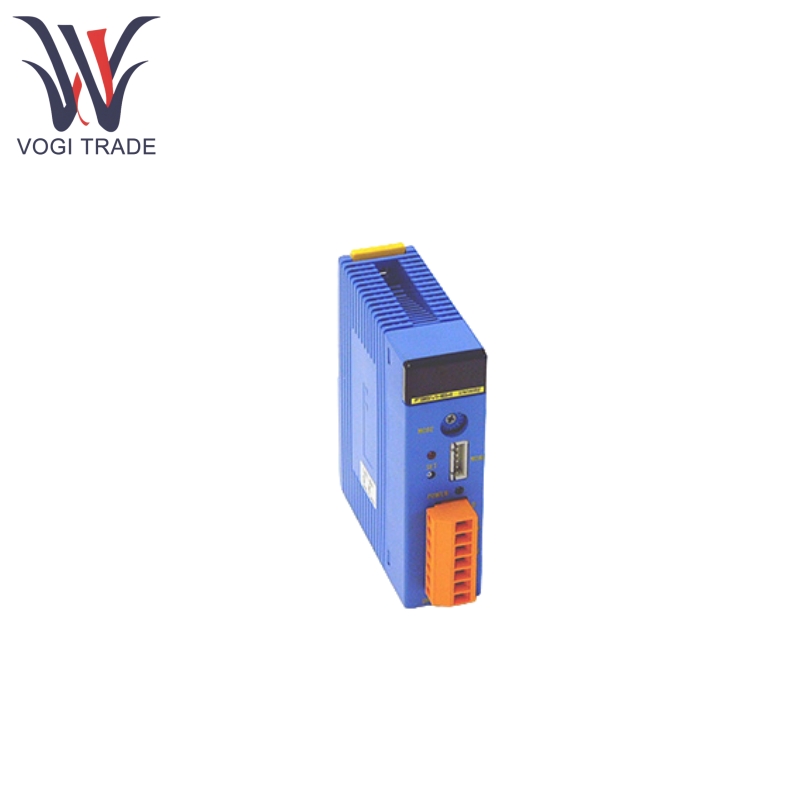

Brand: YOKOGAWA Description: Digital Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: Shenzhen YOKOGAWA F3SV64 is designed to achieve high-precision, high-reliability signal acquisition and processing for industrial automation control systems. This module can receive multiple DC voltages and receives optical coupling isolation to minimize interference, it is suitable for complex industrial scenarios with very high speed response and real time control.
|
Manufacture |
YOKOGAWA |
|
Model Number |
F3SV64 |
|
Ordering Number |
F3SV64 |
|
Catalog |
- |
|
Country Of Origin |
Japan |
|
HS CODE |
8538900000 |
|
Dimension |
14*8*6cm |
|
Weight |
0.4kg |
Product Features
YOKOGAWA F3SV64 supports 12-24V DC voltage input (Sink/Source compatible) and is compatible with a variety of sensors and switch signals. Input types include voltage-free contacts, DC high-speed inputs, and more, meeting the interface requirements of different devices.
The input sampling time is configurable (0 μs to 16 ms) and supports high-speed signal capture (such as encoder pulses). Optical coupling isolation technology ensures stable signal transmission and strong interference resistance.
YOKOGAWA F3SV64 features a compact DIN rail mounting design, saving control cabinet space and facilitating maintenance and expansion. It supports hot-swap functionality, allowing modules to be replaced without interrupting system operation.
YOKOGAWA F3SV64 input points are grouped (8 points/common terminal), supporting independent channel diagnostics and fault isolation. Built-in LED indicators display input status in real time, facilitating quick troubleshooting.
Product Using Principle
YOKOGAWA F3SV64 isolates external input signals from internal circuits via an optocoupler, converts them into digital signals, and transmits them to the e-RT3 series CPU module. The workflow is as follows:
Signal acquisition: DC voltage signals from external sensors or switches are connected to the module via terminals.
Isolation and conversion: The optocoupler converts analog signals into digital signals while cutting off external interference paths.
Data Processing: The digital signals are processed by the internal circuitry and transmitted via the backplane bus to the CPU for logical operations.
Status Feedback: LED indicator lights display the input status in real time, facilitating user monitoring and debugging.
Product Parameter
The following detail is for YOKOGAWA F3SV64.
|
Parameter |
Specification |
|
Number of input points |
64 points (8 points / common terminal) |
|
Rated input voltage |
24V DC (12-24V DC optional) |
|
Input current |
4.1 mA per point (at 24V DC) |
|
Response time |
Configurable from 0 μs to 16 ms (adjustable according to sampling period) |
|
Isolation method |
Photoelectric coupling isolation, insulation voltage 500V AC (for 1 minute) |
|
Communication interface |
Supports Modbus RTU protocol (requires expansion via CPU module) |
|
Operating temperature |
-25°C to +65°C (no condensation) |
|
Protection class |
IP20 (for indoor use) |
