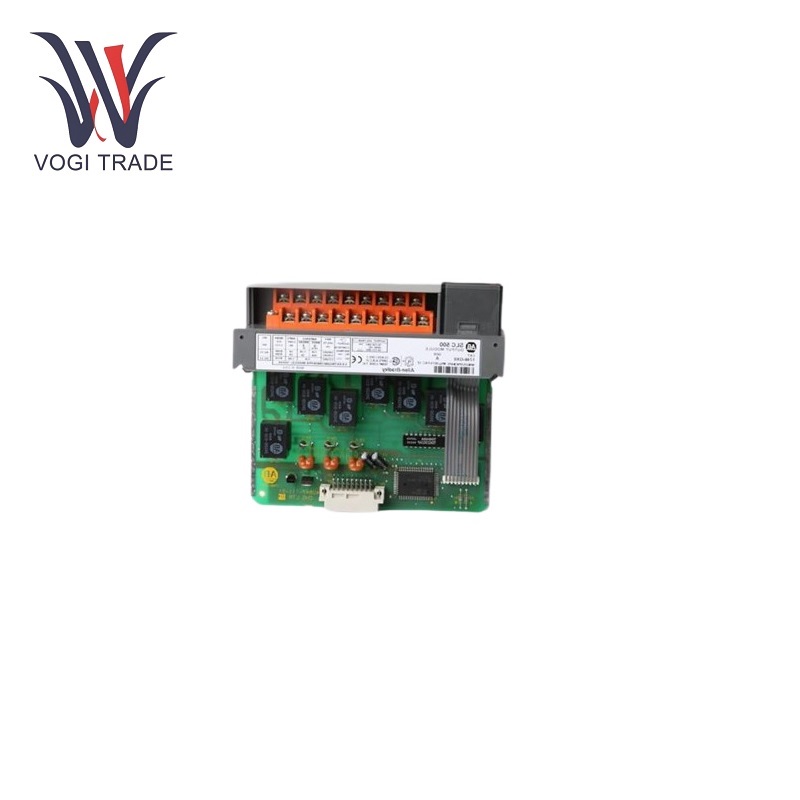

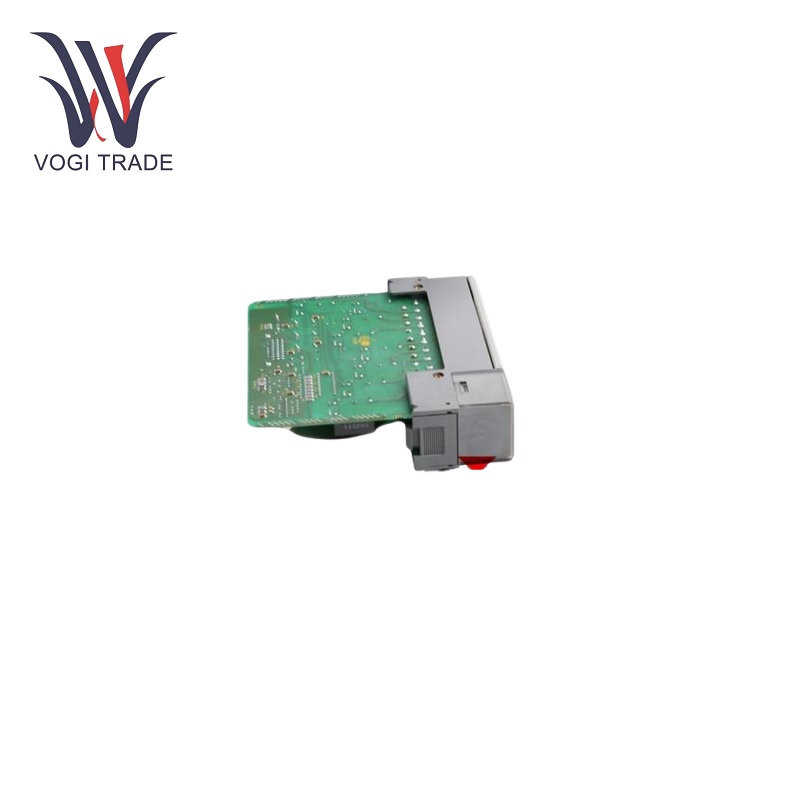

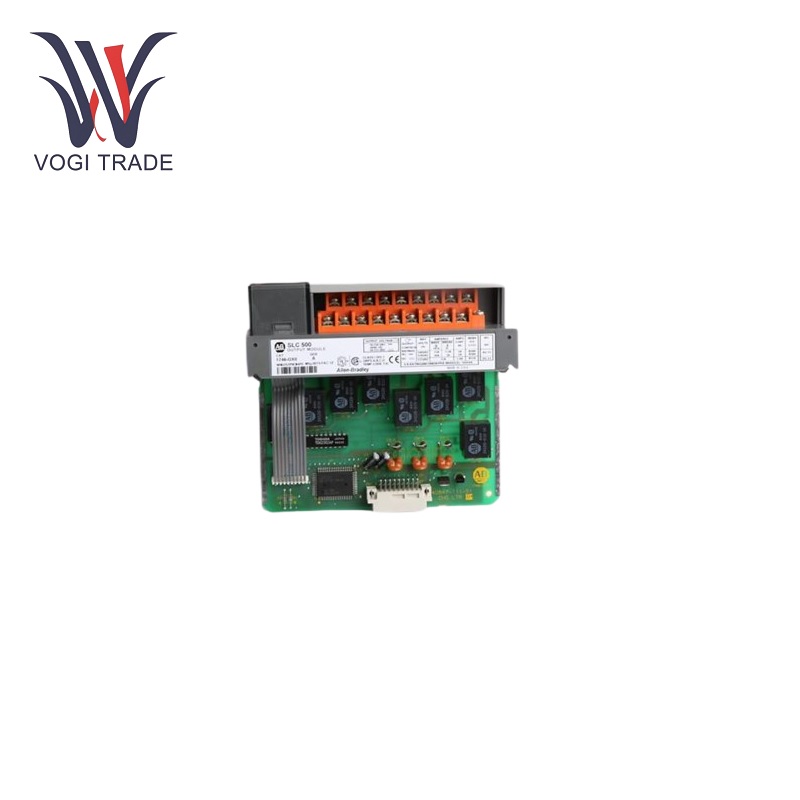

Allen Bradley 1746-OX8

Technical Parameter

Operating Temperature: 0 to 60 degrees Celsius .

Storage Temperature: -40 to 85 degrees Celsius .

Operating Vibration: At 5 to 57Hz, peak displacement is 0.015 inches; at 57 to 2000Hz, acceleration is 2.5g .

Operating Shock: 10g .

I/O Terminal and Control Logic Isolation: 1500V electro-optical isolation .

Noise Immunity: NEMA standard ICS 2 to 230 .

Operating Voltage: 5-265V AC or 5-125V DC .

Output Current: 3A at 120V AC, 1.2A at 24V DC .

Function Features

Flexible Configuration: Allen Bradley 1746-OX8 is set up easily within Allen Bradley PLC. It offers individual programming of every output point, thus precise control of a variety of devices operates in the industry based on specific requirements.

Status Indication: The output point in Allen Bradley 1746-OX8 is indicated by an LED indicator corresponding to the state of the relay, whether or not it is energized or de-energized. This feedback from the LED makes it easier to carry out maintenance and troubleshooting work since the operator can readily figure the output state.

Surge Protection: Built-in surge protection circuitry protects Allen Bradley 1746-OX8 and other connected devices from transients and voltage spikes in the industrial environment. This enhances the equipment life of the entire control process and reliability.

Reliability: These are strong, durable solutions because of relays. They can effectively handle high surge currents and can stay long under harsh industrial conditions. Their life of operation is broader, and they're not responsive to temperature and humidity changes compared to semiconductor-based output devices.

Compatibility: Allen Bradley 1746-OX8 is fully compatible with Allen Bradley's entire family of PLCs and other control components, such that this smooth integration facilitates efficient design and expansion of systems. Engineers can easily incorporate it existing control architectures or into new ones.

Versatility: The ability to handle both AC and DC loads makes it compatible for different applications in the industry. These have heart Men in varying types of works such as in manufacturing plants, process control, and power generations.

Applications

Manufacturing: Allen Bradley 1746-OX8 involves starting and stopping motors for driving conveyor systems, actuation of solenoids for guiding and holding operations during machining processes, and controlling KLM equipment.

Power Distribution:  It is used in power substations and distribution centers to control the switching of relays and contactors for power management. Allen Bradley 1746-OX8 can switch power in or out of the center depending on load demand or fault conditions.

Process Control: In chemical plants and refineries, it can control valves, pumps, and heaters. For instance, it can open and close valves to regulate the flow of fluids in a chemical process, or turn on and off pumps for transferring liquids between different stages of production.
