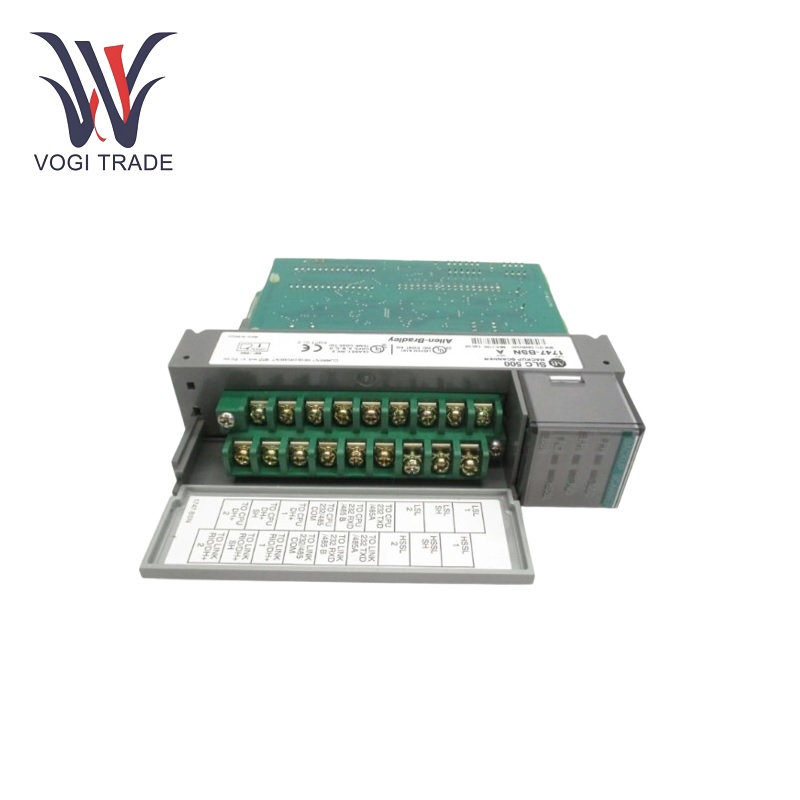

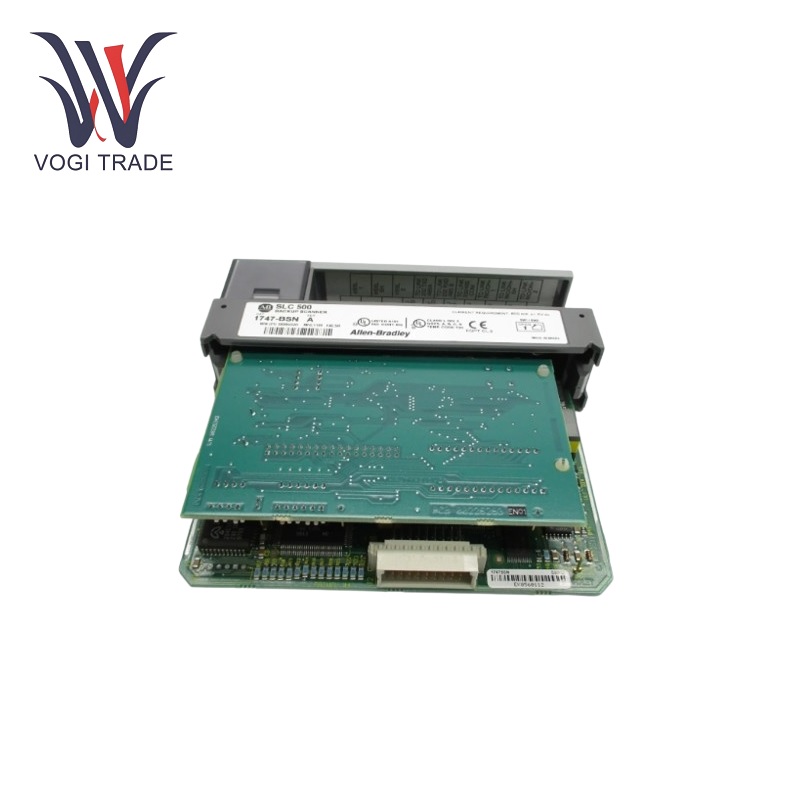

Allen Bradley 1747-BSN

Technical Parameter

Compatible Processors: SLC 5/02, 5/03, 5/04, 5/05.

Cable: Belden 9463.

Backplane Current: 800 mA at 5 volts.

Ambient Operating Temperature: 0-60℃.

Ambient Storage Temperature: -40-185℃.

Relative Humidity: 5-95% noncondensing.

Function Features

Digital Input Monitoring: The digital input points of Allen Bradley 1747-BSN monitor the states of various external devices like switches, sensors, etc. They will report the on/off or open/closed position of the device to the control system for further processing.

Programmable Logic Capability: It often has built-in programmable logic functions. This subsequently enables the users to develop their customized control algorithms and sequences without any need for extensive programming from any external sources. The logic is configurable, oriented on certain input conditions, and issuing corresponding output actions.

Diagnostic and Status Indicators: Allen Bradley 1747-BSN has diagnostic LEDs or indicators that provide visual feedback about the status of the module itself and its inputs or outputs. This enables faster location of faults or abnormal conditions, facilitating repair or maintenance.

Digital Output Control: Digital output points are utilized in the actuation of relays, solenoids, or motors. Based on commands from the control system,  Allen Bradley 1747-BSN is capable of energizing and de-energizing these actuators when appropriate; thus, this critical control of industrial processes is very finely tuned.

Applications

Manufacturing industries： Allen Bradley 1747-BSN is widely used in factories to control the production line. The inputs can monitor statuses, such as that of conveyor belts and related machine tools; back-to-the-end of switches for motors, valves, and other actuator outputs. In doing this, it can automate manufacturing processes to improve productivity and reduce errors.

Automation and Robotics: It forms a key aspect of their robotic control systems. Allen Bradley 1747-BSN can interface with robots' sensors to provide environmental information that controls how the robots would move or act. The control can determine grippers of a robotic arm based on sensor inputs so that the robots can handle objects precisely.

Process Control: In industries such as chemical, pharmaceutical, and food processing, it works to monitor and control various process parameters. Allen Bradley 1747-BSN control could operate pumps, heaters, and other equipment based on temperature, pressure, and flow rate sensors to ensure optimum operation and safety of processes.
