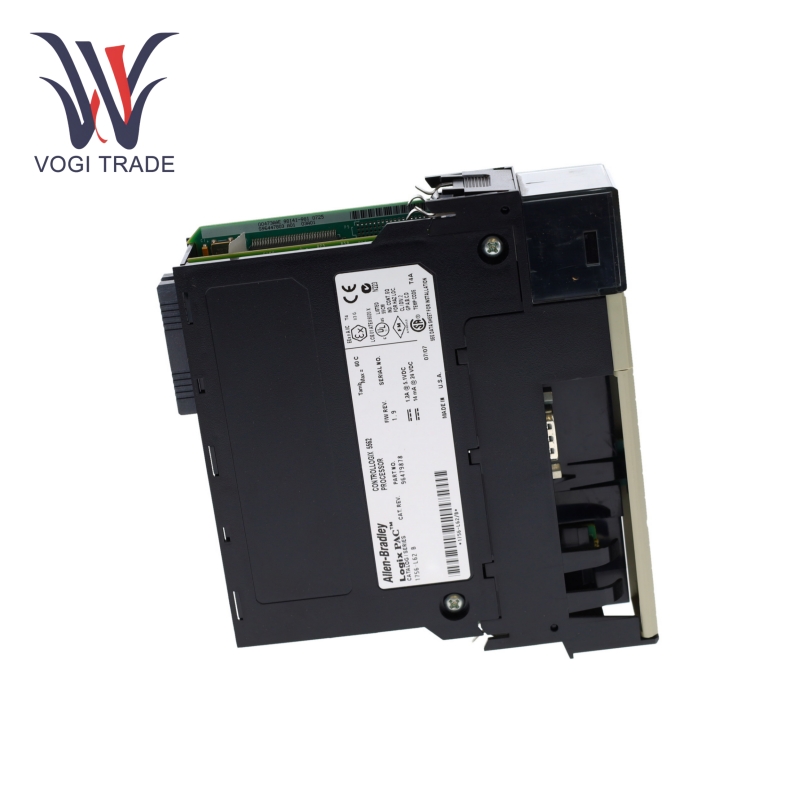

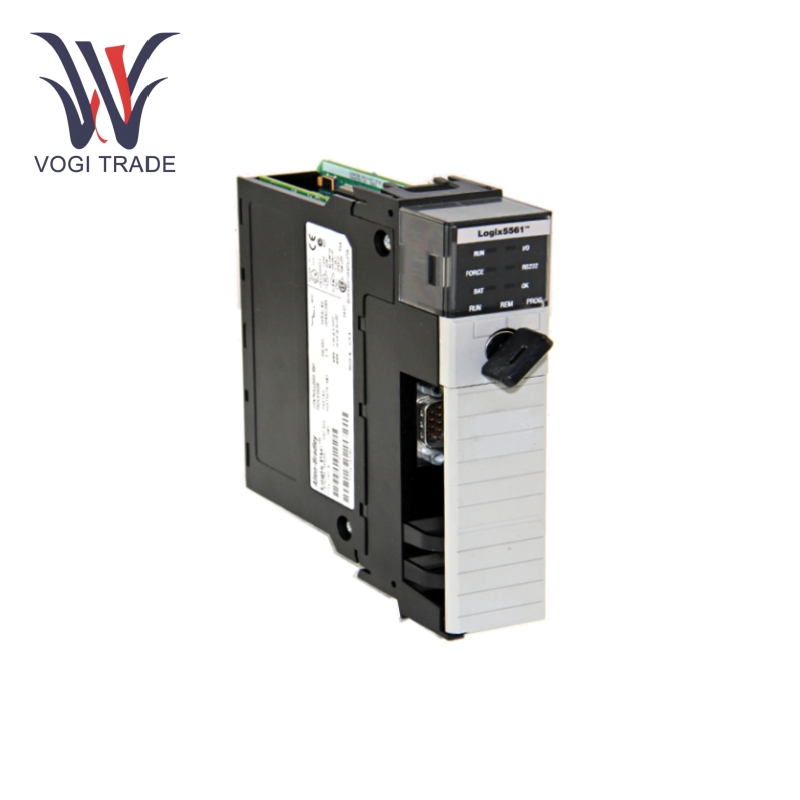

Allen Bradley 1756-L62

Technical Parameter

User Memory: 4 MB.

I/O Memory: 478 KB.

Optional Non-volatile Memory Storage: 128 MB.

Digital I/O, Max: 128000.

Analog I/O, Max: 4000.

Total I/O, Max: 128000.

Current Draw @5.1V DC: 1200 mA.

Current Draw @24V DC: 14 mA.

Power Dissipation: 3.5 W.

Thermal Dissipation: 11.9 btu/hr.

Slot Width: 1.

Module Location: Chassis-based, any slot.

Wire Category: 2 - on RS-232 port.

North American Temperature Code: T4a.

Function Features

High Processing Power: Allen Bradley 1756-L62 houses a powerful CPU enabling it to perform complex control of extensive data management with high efficiency for complex industrial automation applications.

Wide Communication Options: It supports Ether Net/IP, Control Net, and Device Net plus other communication protocols for a wide deployment in industrial devices and systems. The fast backplane communication allows rapid transfer of data between the processor and I/O modules.

Full Programming Features: The Ashland 1756-L62 uses Rockwell Automation's RSLogix 5000 (now Studio 5000) software for programming. This gives an intuitive environment as well as advanced tools for creating, debugging, and managing complex control programs. The instruction sets are extensive, with support for advanced math, data handling, motion control, and PID control functions.

Robust Diagnostics and Monitoring: Present LED indicator lights will inform the status of power, run, fault, force, and communication for easier troubleshooting purposes. Allen Bradley 1756-L62 can present detailed diagnostic information for keeping a check on system health and performance while troubleshooting. Flexibility in I/O Configuration: Can host many I/O modules, allowing for customized control systems best suited for specific applications. Allen Bradley 1756-L62 also supports distributed I/O configurations, to enhance flexibility and further scalability of the system.

Scalability: Its ability to be expanded by the addition of I/O modules and support for distributed I/O configuration makes for a scalable system design such that the system can be adjusted according to shifts in production needs and extended whenever necessary.

Programming Too Convenient: RSLogix 5000/Studio 5000 software provides a simplified mechanism for programming and easy-to-use tools with more extensiveness for developing and managing control programs.

Applications

Complex Process Control: Allen Bradley 1756-L62 is an ideal candidate for precise process control in industries such as chemical processing, pharmaceuticals, and food and beverage production processes where broad data handling is required for complex processes. It also monitors and controls various parameters and processes to secure product quality and ensure production efficiency.

Manufacturing Automation: Automation of sophisticated machinery, production lines, and manufacturing processes, improving production effectiveness while minimizing labor costs and assuring product quality and reliability. Allen Bradley 1756-L62 has functions for motor, conveyor, robotic, and other equipment control for smooth production operations.

Motion Control: It fits the advanced control jobs involving robots, CNC machines, and material handling systems. It allows for the accurate movement and positioning of an object to create very effective operation for a motion control system.

Building Automation: Allen Bradley 1756-L62 links with BMS for HVAC, lighting, security, and other control systems, especially in big and complex buildings. It enhances energy efficiency, further building control, and a more comfortable and secure environment.
