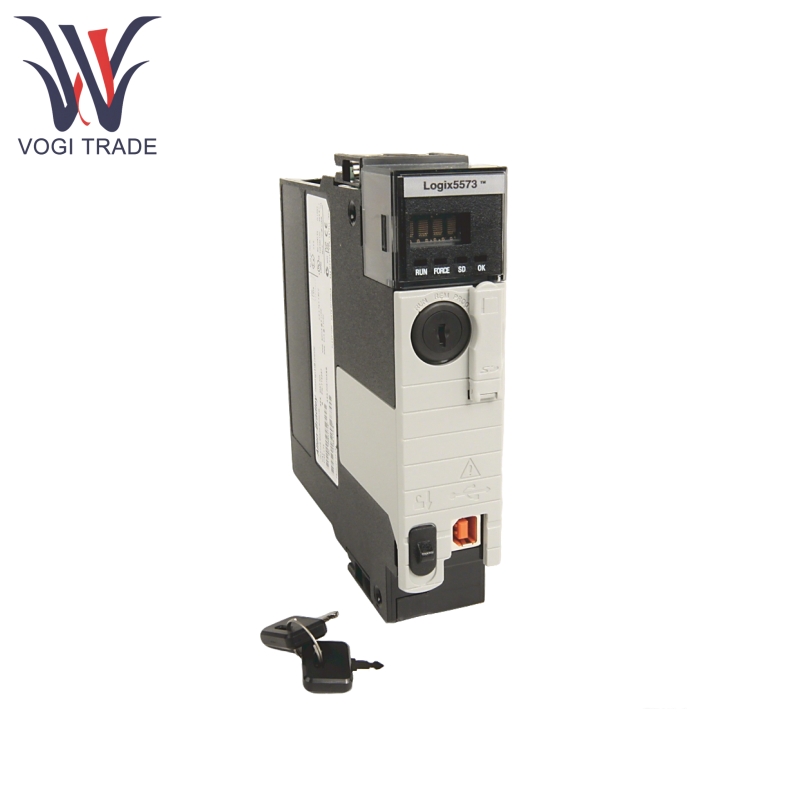

Brand: Allen Bradley Description: Controller Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Allen Bradley 1756-L73K Controller is designed for harsh, corrosive environments, its core function is to provide high-performance industrial automation control and support complex I/O monitoring and control for industrial scenarios requiring corrosion protection.
|
Manufacture |
Allen Bradley |
|
Model Number |
1756 |
|
Ordering Number |
1756-L73K |
|
Catalog |
ControlLogix |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9031900090 |
|
Dimension |
14*8*4cm |
|
Weight |
0.4kg |
Product Features
Allen Bradley 1756-L73K supports 32 tasks (with 1 sequential, periodic and event task). Starting with Logix Designer application v24.00.00, it supports 1000 programs / tasks.
Allen Bradley 1756-L73K has programming languages, Relay Ladder Logic (RLL), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC).
Allen Bradley 1756-L73K has a built-in USB 2.0 full-speed port (12 Mbps) for temporary local programming, configuration, firmware updates, and online editing only, not for use in hazardous areas.
Allen Bradley 1756-L73K supports multiple communication protocols such as EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SERCOS, and third-party process/device networks.
Allen Bradley 1756-L73K fully supports controller redundancy for increased system availability and has a conformal coating for increased protection against corrosive environments.
Allen Bradley 1756-L73K supports SERCOS interfaces (requires Studio 5000 Logix Designer v31.00.01 and above), analog options (encoder inputs, LDT inputs, SSI inputs), integrated motion control on EtherNet/IP networks
Product Parameters
Allen Bradley 1756-L73K has network connectivity:
528 EtherNet/IP connections + 512 TCP connections (with 1756-EN4TR module)
256 EtherNet/IP connections + 128 TCP connections (with 1756-EN2x module)
128 EtherNet/IP connections + 64 TCP connections (with 1756-ENBT module) 100 ControlNet connections + 64 TCP connections (with 1756-ENBT module) ENBT module)
100 ControlNet connections (with 1756-CN2/A module)
User memory: 8 MB
I/O memory: 0.98 MB
Digital I/O Maximum capacity: 128,000 points
Analog I/O Maximum capacity: 4,000 points
Maximum capacity of total I/O: 128,000 points
Current consumption: 800 mA at 5.1 V DC; 5 mA at 1.2 V DC
Power consumption: 2.5 W
Thermal Dissipation: 8.5 BTU/hr
Standard Power Supplies: 1756-PA50, 1756-PA72, 1756-PA72K, 1756-PA75, 1756-PA75K
Redundant power supply: 1756-PA75R, 1756-PA75RK, 1756-PB75R
Temperature: 0°C ≤ Ta ≤ +60°C (32°F ≤ Ta ≤ +140°F)
Non-operating Temperature: -40°C ~ +85°C (-40°F ~ +185°F)
Relative Humidity: 5% ~ 95% non-condensing (per IEC 60068-2-30)
Corrosive environments: Accelerated ASTM B845-97 Method H testing (20 day exposure) to ANSI/ISA 71.04-2013, Level G3 and IEC 60721-3-3:2019, Level CX (Copper corrosion rate of up to 9.6 microns/year)
Vibration: 2 g @ 10 ~ 500 Hz
Shock (operating): 30 g
Shock (non-operating): 50 g
