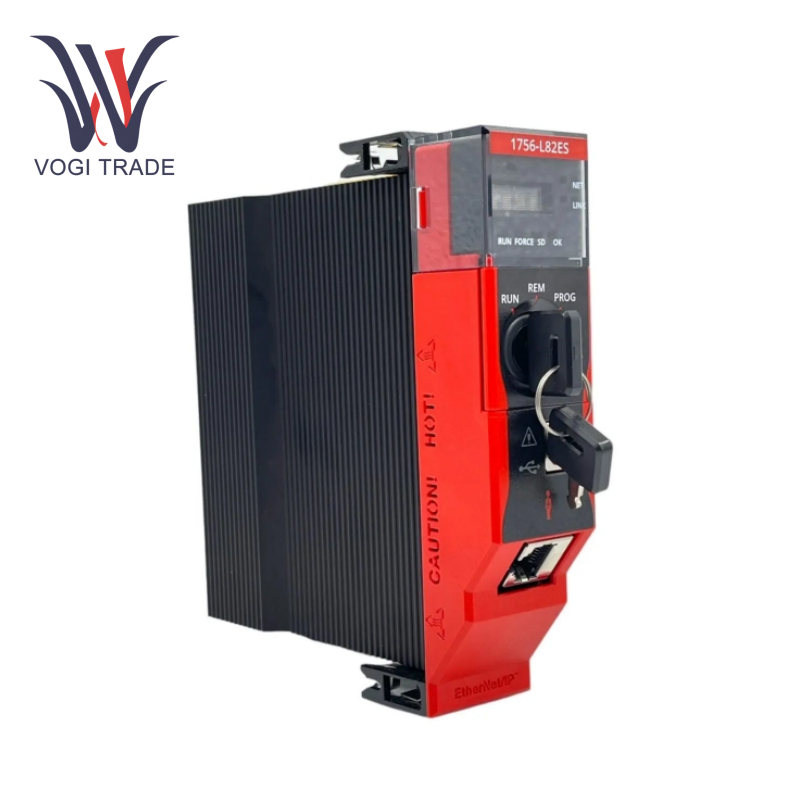

Brand: Allen Bradley Description: Safty Controller Condition: New Warranty: 1 year Inventory Qty:10 Payment term: T/T Shipping Port: ShenZhen The Allen Bradley 1756-L82ES is a GuardLogix 5580 series safety controller designed for medium and high risk scenarios in industrial automation, supporting SIL 3 (safety integrity level) and PL e (performance level) certifications, enabling high integration of standard control and safety control.
|
Manufacture |
Allen Bradley |
|
Model Number |
1756-L82ES |
|
Country Of Origin |
United States |
|
HS CODE |
8538900000 |
|
Dimension |
26*26*5CM |
|
Packing Dimension |
30*30*10CM |
|
Weight |
1.2kg |
Technical Parameters
Processor: GuardLogix 5580
Memory: 5MB standard + 2.5MB security
Communication interfaces: 1×USB 2.0, 1×10/100/1000 Mbps Ethernet port
Supported devices: 175 EtherNet/IP devices
I/O support: 128,000 digital I/O, 4000 analog I/O
Power supply: 1.20A at 5.1V DC, 5.0mA at 1.2V DC
Power consumption: 6.2W
Temperature range: 0-60°C
Certifications: CE, UL, IEC 62443-4-2
Display: 4-character alphanumeric display
SD card: 2GB pre-installed
Features
Integrated safety control: Allen Bradley 1756-L82ES supports SIL3 safety level, built-in safety logic engine, can handle key functions such as emergency shutdown (ESD) and safety interlock, and seamlessly integrates with standard control logic. Security memory is independent of user memory to prevent unauthorized access and ensure the integrity of security data.
Multi-tasking architecture: The real-time operating system supports periodic tasks and event-triggered tasks with configurable priorities, suitable for high-precision timing control scenarios.
Redundancy and fault tolerance: Through dual controllers, dual communication modules and redundant power supplies, disturbance-free switching is achieved to meet the needs of high-risk industries such as nuclear power and chemical industry.
Programming flexibility: Allen Bradley 1756-L82ES supports multiple programming languages such as ladder diagram (LAD), function block diagram (FBD), structured text (ST), etc., and is compatible with RSLogix 5000 and Studio 5000 software.
Compatible supporting products
Ethernet module: 1756-EN2TR (dual-port Gigabit), 1756-EN3TR (three-port).
Redundancy module: 1756-RM2XT (redundant synchronization module).
Digital input module: 1756-IB16 (16-point DC input).
Analog output module: 1756-OF8I (8-channel isolated output).
Software tools
Studio 5000 Logix Designer V33 and above, supports redundancy configuration and safety logic programming.
FactoryTalk View for HMI integration, FactoryTalk Historian for data archiving.
