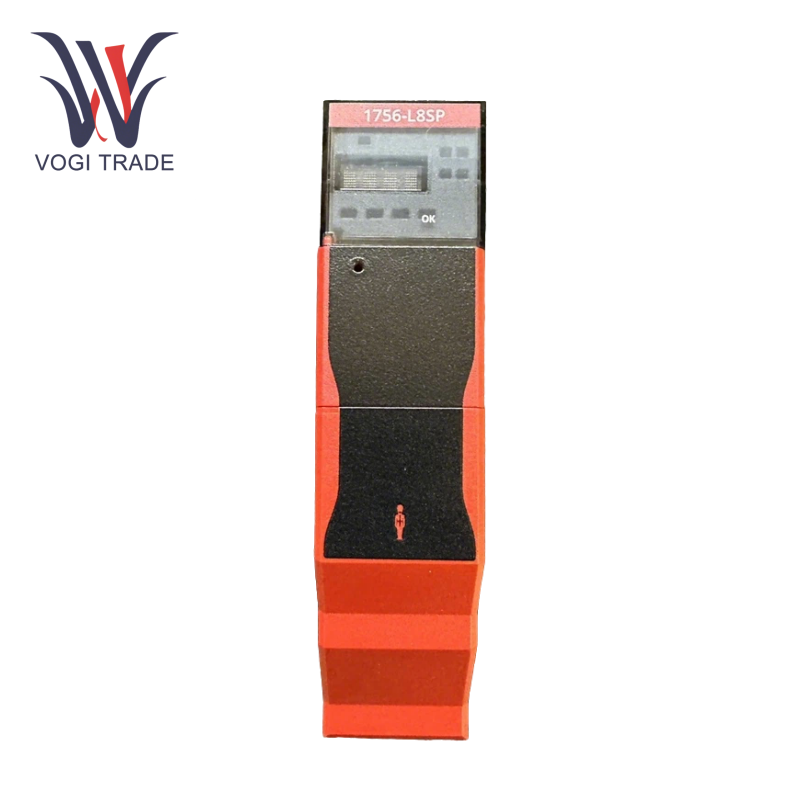

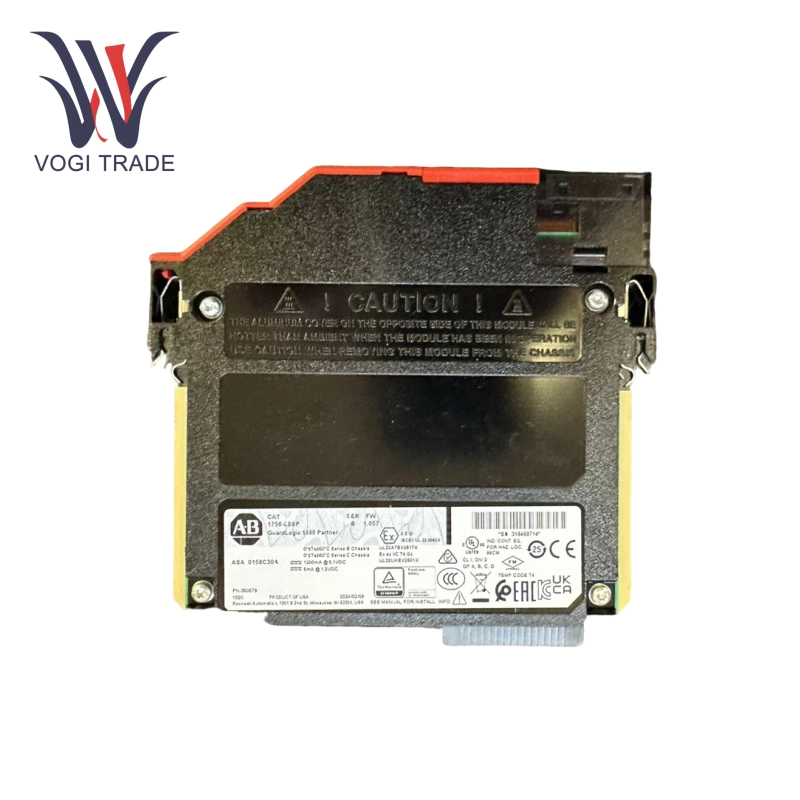

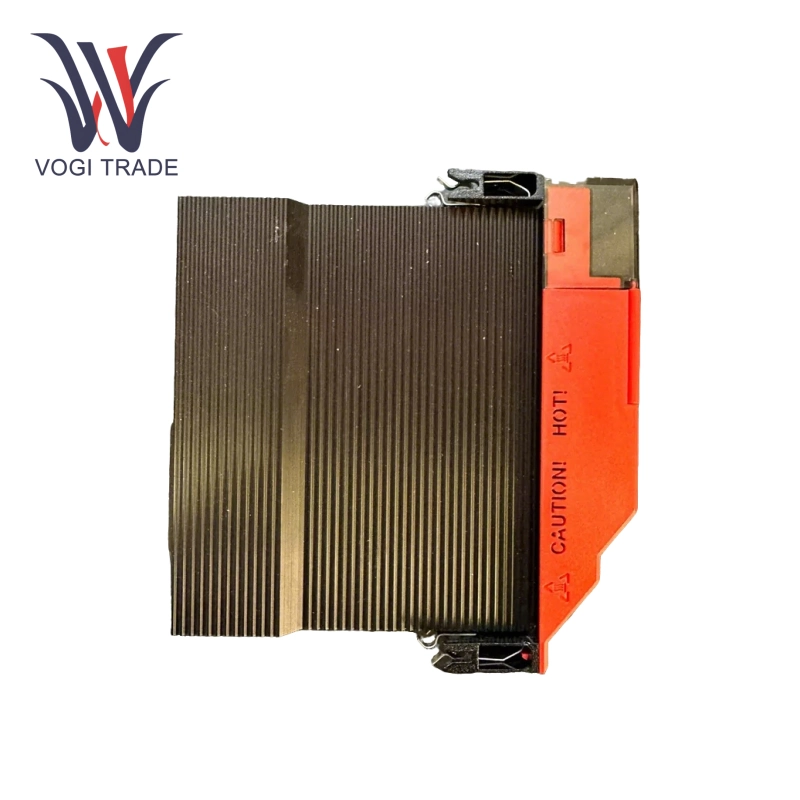

Brand: Allen Bradley Description: Safety Partner Controller Condition: New Warranty: 1 year Inventory Qty: 6 Payment term: T/T Shipping Port: ShenZhen The Allen Bradley 1756-L8SP is a controller designed for high reliability and safety-critical applications. With its redundant architecture, high-performance processing, and flexible expansion capabilities, it has become a core control device in the fields of energy, transportation, and industrial automation.
|
Manufacture |
Allen Bradley |
|
Model Number |
1756-L8SP |
|
Country Of Origin |
United States |
|
HS CODE |
8538900000 |
|
Dimension |
25*25*8CM |
|
Packing Dimension |
27*27*10CM |
|
Weight |
0.8kg |
Processor type: Dual-core ARM Cortex-A9, main frequency 1.0 GHz
Memory capacity: 4 MB SRAM, 512 MB DDR3
Non-volatile storage: 2 GB flash memory
Scan cycle: Supports minimum 0.5 ms high-speed logic scan
Maximum local I/O points: 256 points (
Communication interface: Integrated dual Gigabit Ethernet ports (support EtherNet/IP, CIP Sync protocol)
Dual power input: 24V DC
Operating temperature: -20°C to +60°C
Usage method and principle
Hardware installation: Allen Bradley 1756-L8SP installed through the 1756 backplane, supporting 4, 7, 10, 13 or 17 slot racks. Dual controller modules must be installed for redundant configuration, and data synchronization is achieved through the 1756-SRM synchronization module.
Power and communication connection: Allen Bradley 1756-L8SP supports redundant power supply and requires a 24V DC power supply (±10% fluctuation range). The Ethernet port supports ring or star topology and can be connected through Studio 5000 configures IP address and network parameters.
Programming and configuration: Use Studio 5000 Logix Designer software for programming, supporting ladder logic, structured text (ST) and function block (FBD) languages. Supports online editing and downloading, and can update programs without stopping.
Compatible supporting products
I/O modules
Digital quantity: 1756-IB16 (16-point input), 1756-OB16 (16-point output)
Analog quantity: 1756-IF8 (8-channel input), 1756-OF8 (8-channel output)
Safety module: 1756-IB16S (safety input), 1756-OB16S (safety output)
Communication module
1756-EN2T (dual-port EtherNet/IP)
1756-CNB (ControlNet communication)
Software tools
Studio 5000 Logix Designer (programming)
FactoryTalk View SE (HMI Configuration)
Redundant components
1756-SRM (Redundant Synchronization Module)
1756-RM2 (Redundant Rack Expansion Module)
Third-party integration
ProSoft MVI56-GEC (Communicates with Siemens PROFIBUS)
Anybus X-gateway (Supports Modbus TCP/RTU protocol conversion)
