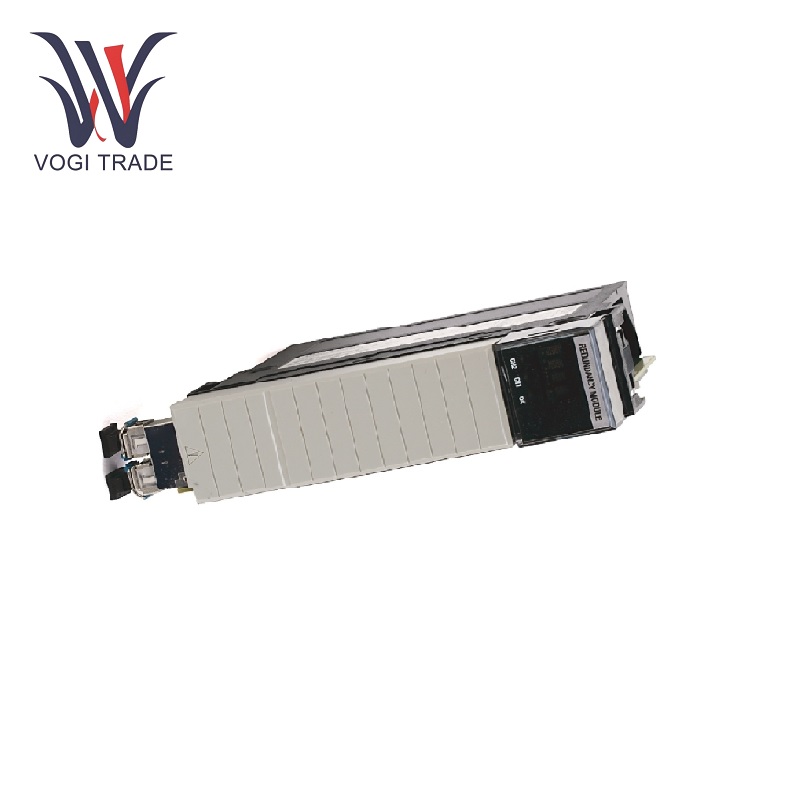

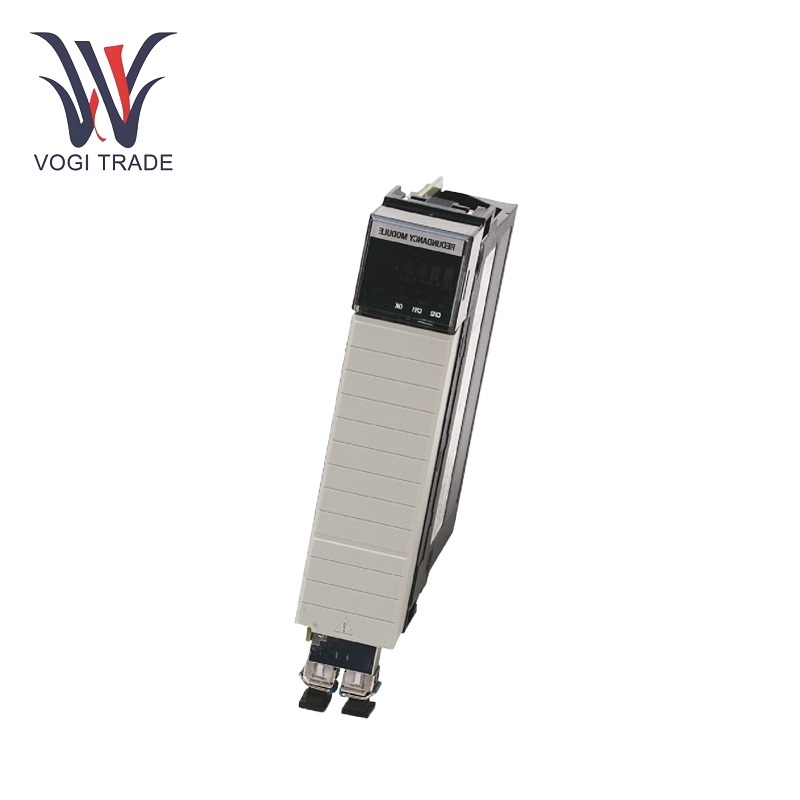

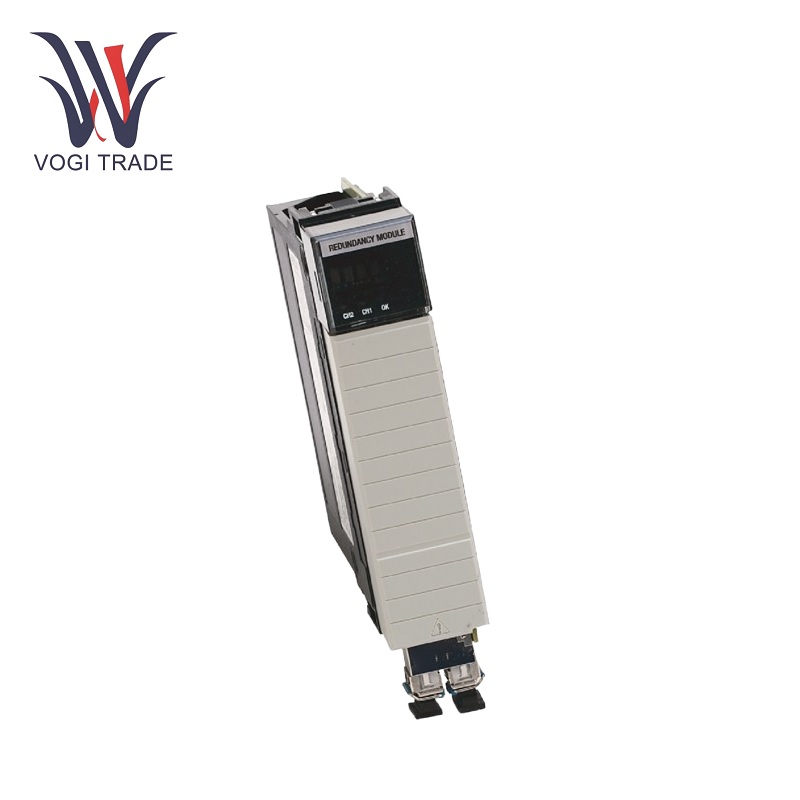

Allen Bradley 1756-RM2XT

Working Conditions

Operating Temperature: Ranges from 0 to 60ºC (32 to 140ºF). Such a wide temperature range allows it to operate reliably in a variety of industrial environments, from normal indoor environments to those that encounter more severe environments due to high temperature fluctuations.

Storage Temperature: -40 to 85ºC (-40 to 185ºF). Such a wide storage temperature range ensures the safety of the product when it is not operated or transported in extremely cold or hot environments.

Relative Humidity: Relative humidity varies, 5% to 95% without condensation. Such specifications allow it to operate well in different humidity levels, which is very important because many industrial sites may experience humidity fluctuations due to processes such as water treatment, chemical manufacturing or food processing.

Power Supply: The Allen Bradley 1756-RM2XT is typically powered by a 24V DC power supply. Efficiently utilize and maximize power to achieve optimal operation with minimal energy consumption. Sufficiently stable power supplies provide continuous and reliable operation for internal circuits and other components.

Product Features

High-speed communication: The Allen Bradley 1756-RM2XT is used as a communication module to facilitate high-speed data transmission between other devices in the industrial network. It can support sufficient data rates to meet the requirements of real-time control and monitoring applications. For example, sensor data can be sent back and forth quickly between field devices and control systems, ensuring timely decisions and adjustments to processes.

Network connectivity: The module is designed to connect with a variety of industrial networks. It can be incorporated into Ethernet/IP networks to achieve seamless communication between PLCs, HMIs, and other networked devices. Connectivity promotes efficient data sharing, ensuring that all components of automated industrial processes are synchronized and coordinated. Provide redundant paths: It provides redundant assistance for critical communication paths. If the primary link fails, the backup path ensures immediate takeover, significantly reducing downtime while ensuring that the industrial process continues to operate. This is particularly important in industries such as manufacturing, where any downtime can result in significant production losses.

Diagnostics: The Allen Bradley 1756-RM2XT offers integrated diagnostics: it proactively monitors the health of the communication link, identifies the occurrence of cable faults, signal interference or congestion, and provides in-depth diagnostic information. This enables maintenance personnel to quickly assess and troubleshoot faults, thereby reducing maintenance time and ensuring reliable service.

Application Areas

Manufacturing: Allen Bradley 1756-RM2XT In automotive manufacturing, PLCs that control assembly line robots, conveyor systems, and quality inspection equipment are interconnected. High-speed, reliable communications ensure that these devices operate in close coordination, ensuring efficient production and high product quality.

Manufacturing: In the electronics industry, it provides a direct communication link between manufacturing equipment and quality control systems; that is, real-time checks of manufacturing parameters can be monitored and changes made when performance deviates from specifications.

Process Industries: In chemical plants, it connects sensors that measure temperature, pressure, and flow in reactors and pipelines to the control system. This redundancy is particularly important in hazardous environments, where communication failures can indeed lead to safety incidents. In the oil and gas industry, refinery and pipeline monitoring systems require it to achieve reliable data transmission between field equipment and the central control room.

Power generation: In power plants, it connects control systems with generators, transformers, and switchgear. Diagnostics can detect communication problems that may arise during power generation and distribution in advance, thereby ensuring a stable power supply.
