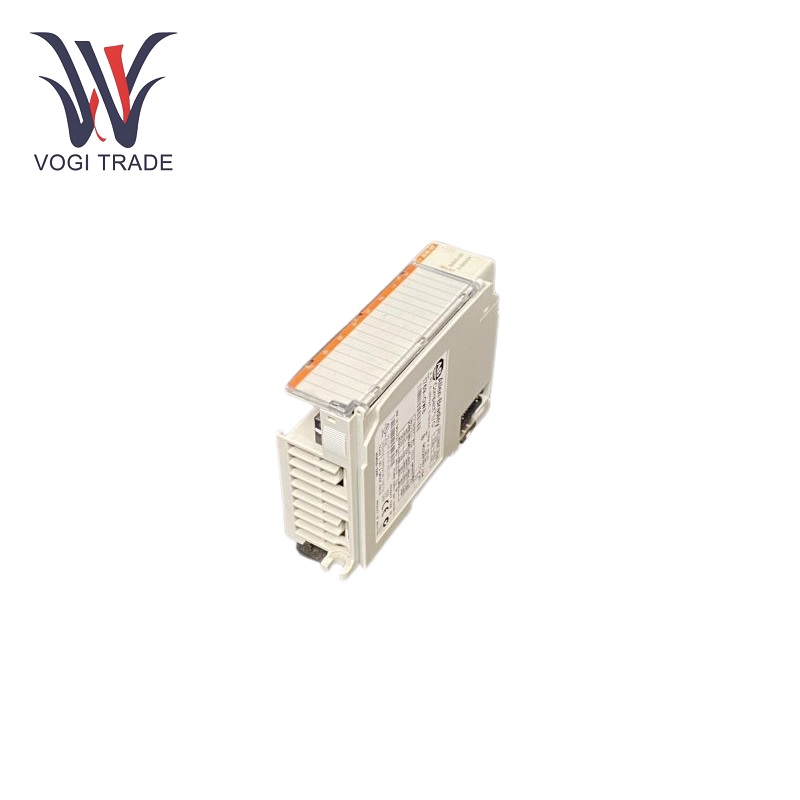

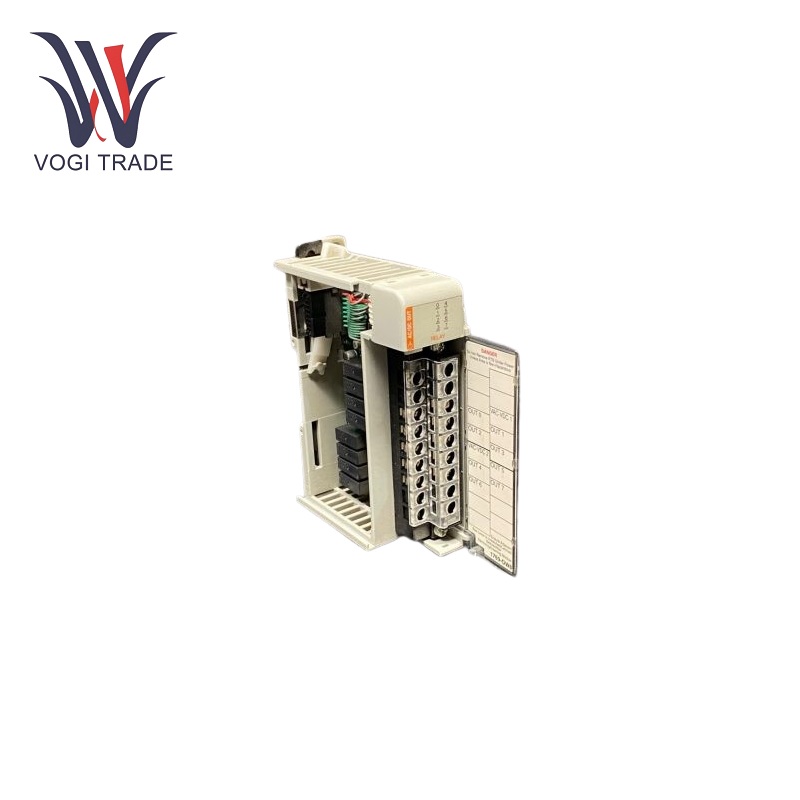

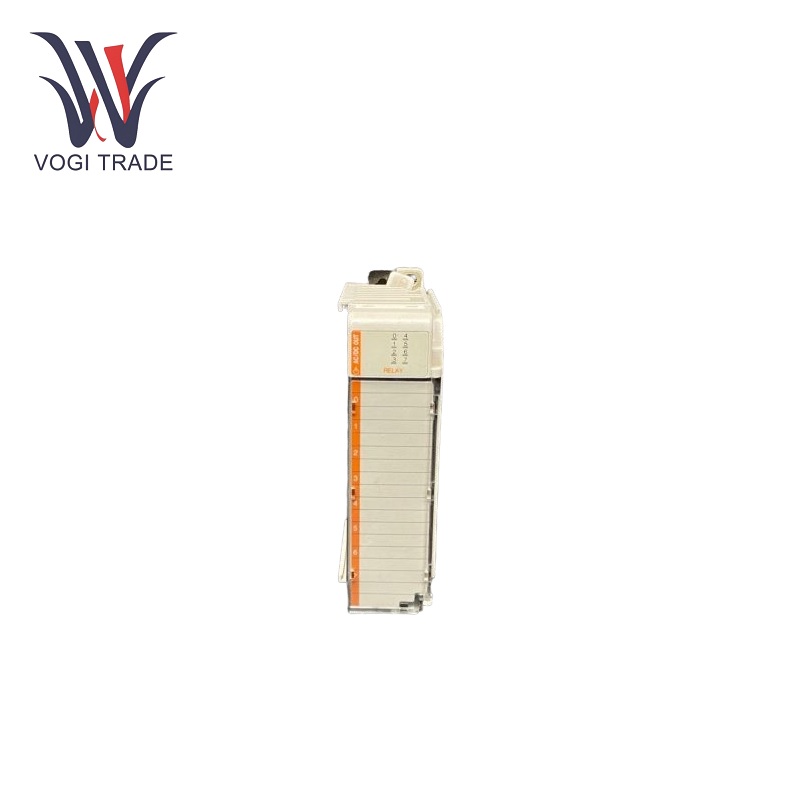

Allen Bradley 1769-OW8

Working parameters

Rated voltage: The working voltage is 24VDC. This voltage level is suitable for many industrial control circuits because it provides a stable power supply level for the correct and safe operation of the equipment.

Current carrying capacity: The Allen Bradley 1769-OW8 is designed to control current levels up to 2.0A per point. This ensures that it can effectively control the electrical load assigned to it within the operating voltage range without overloading.

Response time: The Allen Bradley 1769-OW8 has a relatively fast response time, almost in milliseconds. The role of this device in industry is very important for the instant action of control. This means that in some manufacturing processes, an example of its instant action can be observed from the timing of related operations.

Output function

Output switching: The Allen Bradley 1769-OW8 is widely used for the switching of electrical loads. The module can switch different types of loads, including solenoids, relays, and small motors. In simple terms, it can activate solenoid valves in automated assembly lines, regulate the flow of gas or oil, or open/close relays to ensure that current flows to other components in the circuit.

Diagnostic Function: Diagnostic functions have monitoring functions that can identify faults or undesirable conditions. For example, the status of output channels is monitored, short circuits or open circuits are detected, and feedback is provided to the control system, ideally, the fault can be diagnosed and repaired in the shortest possible time, thereby minimizing downtime and related costs.

Isolation Protection: In addition, the module also provides electrical isolation between the control circuit and the output load, which needs to switch to protect the control system when there is a surge or fault on the load side, thus helping to ensure that industrial control settings have higher reliability and safety.

Application Range

Automotive Industry: Allen Bradley 1769-OW8 can be used in automotive production plants to assist in controlling robotic arms, conveyors, assembly tools, etc. For example, the unit can control the start and end of power to the conveyor drive motor to ensure that parts move smoothly along the production line. Electronic production plants use it to control soldering irons, pick-and-place machines, and test equipment.

Process Control: In chemical plants or refineries, the unit can be used to control valves, pumps, and heaters. For example, control of the flow of chemicals can be ensured by opening and closing valves; thus, temperature changes within a container can be controlled by appropriate thermometer control of the power supply heating. It is also conceivable to use the unit in a water treatment plant to operate various pumps and valves, acting as an inlet pump, filter pump or distribution pump.

Packaging Industry: The Allen Bradley 1769-OW8 can also control various operations on packaging machines, fillers, cappers and labelers. For example, the operation may include any power required to drive the filling machine; thus, the operation control may be tied to the on/off reference level of the motor responsible for actually loading the item into the package. By doing so, the scope of the conveyor belt in transporting packaged items for processing or storage will be greatly appreciated.
