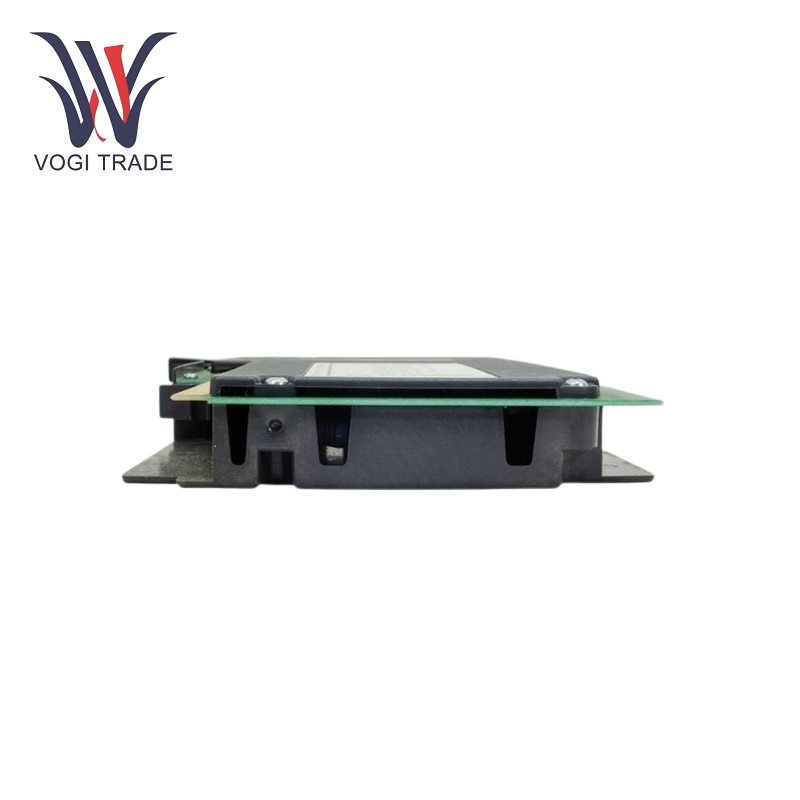

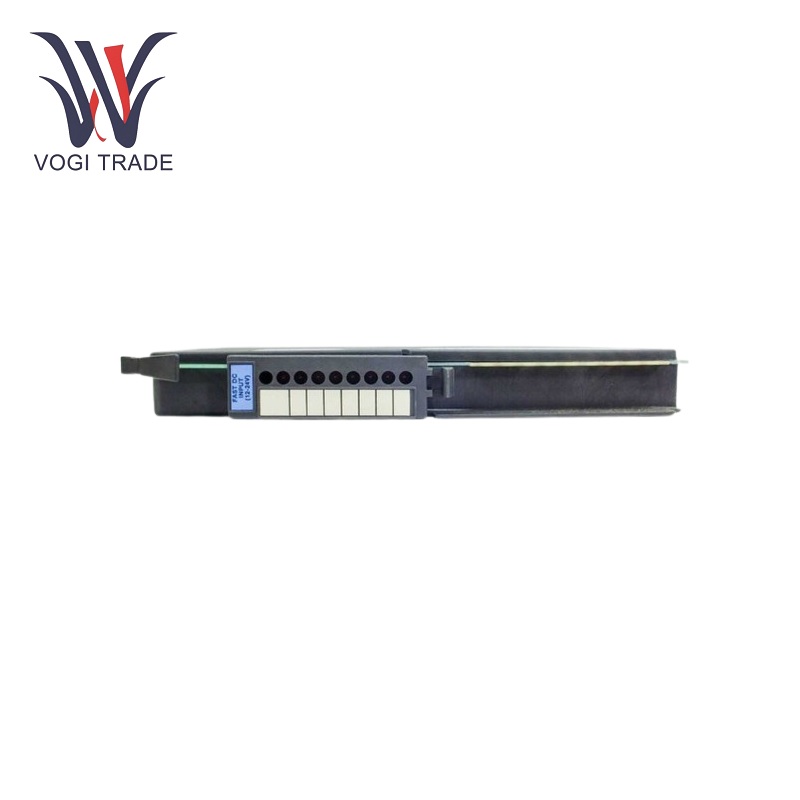

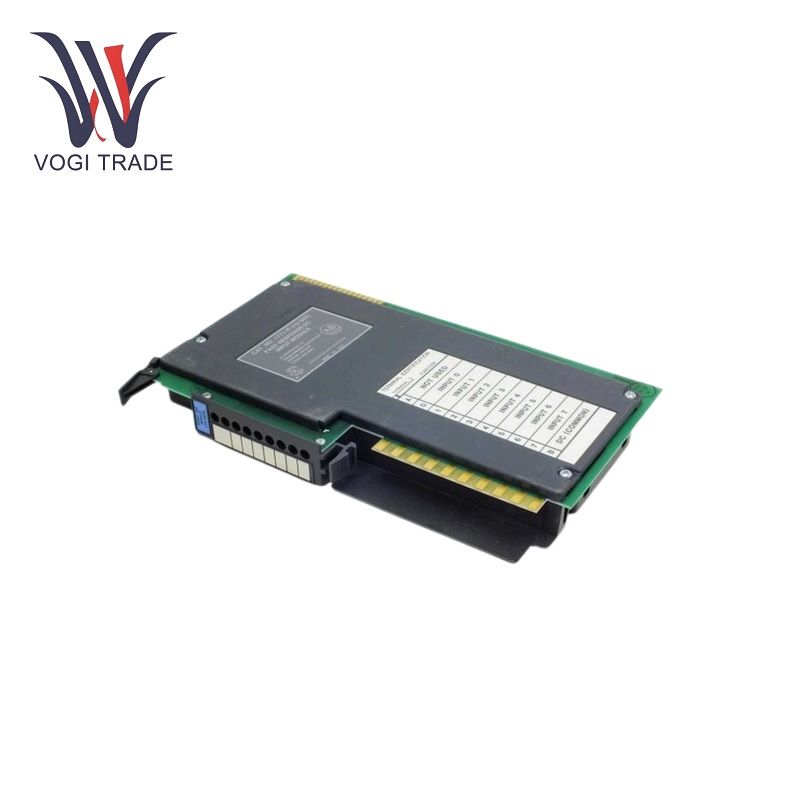

Allen Bradley 1771-IT

Operating Parameters

Voltage Input: The device operates within a certain voltage range. Most commonly, it works with standard industrial control voltages between 10-30 VDC, making it compatible with many types of loads used in industry.

Rated Current: The Allen Bradley 1771-IT has a defined load current. That is, for example, it applies up to 20 mA of input current to each input channel. This property is important because it determines the type and number of input elements or sensors that can be connected without overloading the module.

Response Time: The Allen Bradley 1771-IT operates very quickly. It can detect input changes and respond within a few milliseconds, typically in the range of 2 to 10 milliseconds. This fast response enables it to perform real-time acquisition and control in dynamic industrial processes.

Isolation Voltage: The Allen Bradley 1771-IT offers considerable isolation voltages, such as 1500 VAC. Therefore, the high isolation voltage protects connected components or the entire control system from noise, transients, and damage caused by ground loops or voltage spikes in industrial environments.

Product Function

Analog Input Capability: The Allen Bradley 1771-IT acts as an input module for analog signals. It processes signals from different types of sensors, such as temperature sensors (thermocouples, RTDs), pressure sensors, and flow sensors. It converts these analog signals into digital values that can be used by a programmable logic controller (PLC) or other control system. For example, when a temperature measurement system in a commercial process analyzes the temperature, it may provide a digital lens for future control operations.

Scaling and Calibration: It provides scaling and calibration of input signals. This means that the raw signal from the sensor must be adjusted and converted into engineering units with specific meaning. For example, the voltage from a pressure sensor can be calibrated so that the output represents the pressure value in pounds per square inch (psi) or other desired units, providing accurate and reliable measurement and control.

Diagnostic Capabilities: The Allen Bradley 1771-IT provides integrated self-diagnostic capabilities. The health of the input channels is continuously monitored, detecting open, shorted, or out-of-range signals. After detecting an abnormal service, it will sound an alarm or report an error. This helps the staff to quickly pinpoint and resolve the problem, thus minimizing downtime during industrial sessions.

Data transmission: The Allen Bradley 1771-IT effectively routes the acquired data to the host controller. With high-speed communication protocols such as Allen Bradley Data Highway or some other industrial Ethernet protocols, data transmission is fast and the settings are efficient. The controller can make decisions quickly based on the input values. The same is true for manufacturing process control. For example, these devices are used for temperature, pressure, and flow control in chemical plants that operate under process control mechanisms. By adjusting various process parameters, accurate inputs to the control system help maintain the quality and consistency of the product overall.

Applications

Power generation: In power plants, it can be used to monitor parameters such as winding temperature, cooling system pressure, and lubricant flow of generators, transformers, and other electrical equipment. Tracking these processes is essential to ensure safe and efficient operation of power generation equipment and to perform preventive maintenance.

HVAC systems: In heating, ventilation, and air conditioning systems, the Allen Bradley 1771-IT can measure temperature and humidity. This provides data to the control system to adjust heating, cooling and ventilation rates to provide a comfortable indoor working environment suitable for energy conservation.
