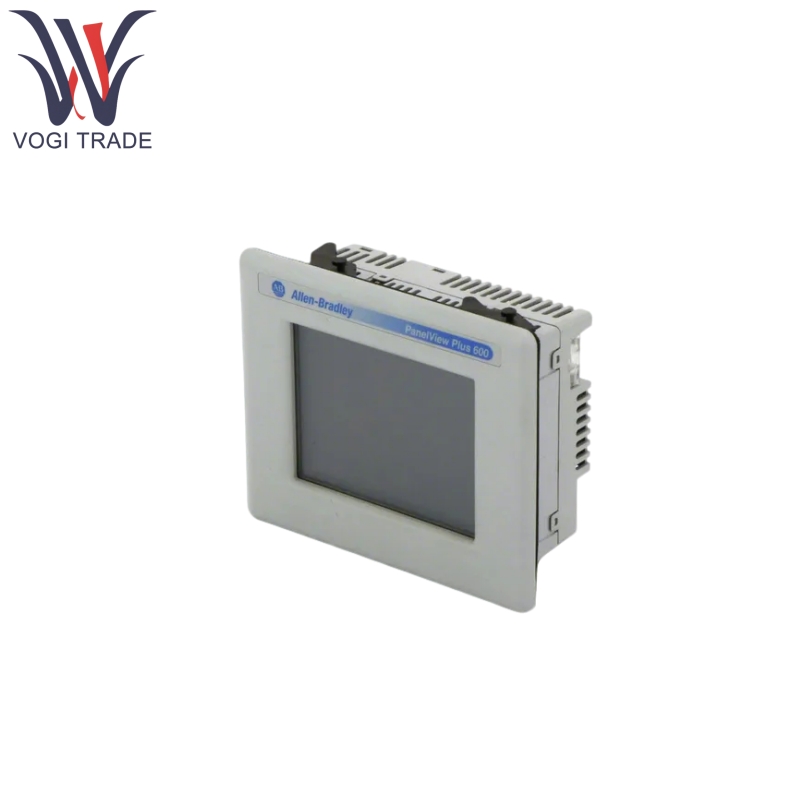

Brand: Allen Bradley Description: A PanelView Plus 600 HMI Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Allen Bradley 2711P-T6C20A8 runs Windows CE 6.0 operating system and supports FactoryTalk View Machine Edition software, which is used to realize real-time monitoring, data display and operator command input of industrial equipment, and is widely used in automation processes such as production line and machine control.
|
Manufacture |
Allen Bradley |
|
Model Number |
2711P-T6C20A8 |
|
Ordering Number |
2711P-T6C20A8 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8543709990 |
|
Dimension |
16*16*16cm |
|
Weigh |
0.6kg |
Product Features
Allen Bradley 2711P-T6C20A8 features a touch-only input method (the “T” in the model number stands for Touch), a 5.7-inch color display, and support for graphical interface displays (e.g., real-time data, alarms, trend graphs, etc.). It is also compatible with FactoryTalk View ME runtime software (v6.10 and above), which allows you to customize the interface layout and achieve linkage with control logic.
Allen Bradley 2711P-T6C20A8 has one 10/100 Mbps Ethernet port (Auto-MDI/MDI-X), one RS-232 port (DB9), and two USB 2.0 high-speed ports (1 USB-A, 1 USB-B) to support data interaction with PLCs, sensors, and other devices.
Allen Bradley 2711P-T6C20A8 has a Secure Digital High-Capacity (SDHC) slot compatible with 1784-SDx series memory cards for program backup, data log storage and firmware updates.
Allen Bradley 2711P-T6C20A8 runs Windows CE 6.0 operating system and supports .NET Compact Framework 3.5 for stable compatibility with industrial control software.
Allen Bradley 2711P-T6C20A8 has a built-in real-time clock and supports data timestamp logging; there is no battery to back up the data, but the non-volatile memory can save the configuration and program.
The model number ends with “8” and does not include extended functions (such as Web browser, remote desktop, Microsoft Office file viewer, etc.), focusing on basic HMI functions, which is suitable for scenarios with concise functionality requirements.
Product Using Principle
Allen Bradley 2711P-T6C20A8 can be connected to PLC or other control devices via Ethernet or RS-232 interface to receive real-time sensor data, equipment status, and visually display them in the form of graphics, text, charts, etc. via 5.7-inch color screen.
The operator inputs control commands by touching the screen, and the terminal converts the commands into control signals and transmits them to the controller through the communication interface to realize remote operation of the equipment.
Allen Bradley 2711P-T6C20A8 runs the application developed by FactoryTalk View ME, supports customized interface logic, and expands storage via SD card to save historical data or backup configuration.
Allen Bradley 2711P-T6C20A8 acts as an intermediate node, transmitting device data to the host computer and connecting to the control layer devices to form a closed-loop control of “Sense - Decision - Execution”.
Product Parameter
Below detail is for Allen Bradley 2711P-T6C20A8 A PanelView Plus 600 HMI.
|
Parameter |
Specification |
|
Input Type |
Touch screen (touch-only, no keypad) |
|
Display |
5.7-inch color ( "C" in the model stands for Color) |
|
Processor |
ARM architecture, 1.0 GHz |
|
Memory |
256 MB DDR2 RAM 512 MB non-volatile memory (approximately 73 MB free user memory) |
|
Power Input |
AC power supply ( "A" in the model stands for AC), non-isolated power supply |
|
Operating System |
Windows CE 6.0 |
|
Communication Interfaces |
- Ethernet: 1×10/100 Mbps (Auto-MDI/MDI-X) - Serial: 1×RS-232 (DB9) - USB: 1×USB-A (V2.0), 1×USB-B (V2.0) |
|
Storage Expansion |
1×SDHC slot (supports 1784-SDx memory cards) |
|
Compatible Software |
FactoryTalk View ME runtime v6.10 and above |
|
Operating Temperature |
0°C~60°C (horizontal mounting) 0°C~40°C (vertical mounting) |
|
Storage Temperature |
-40°C~70°C |
|
Electromagnetic Compatibility |
ESD immunity (8kV air discharge, 6kV contact discharge) Surge immunity (1kV line-to-ground for power supply) |
