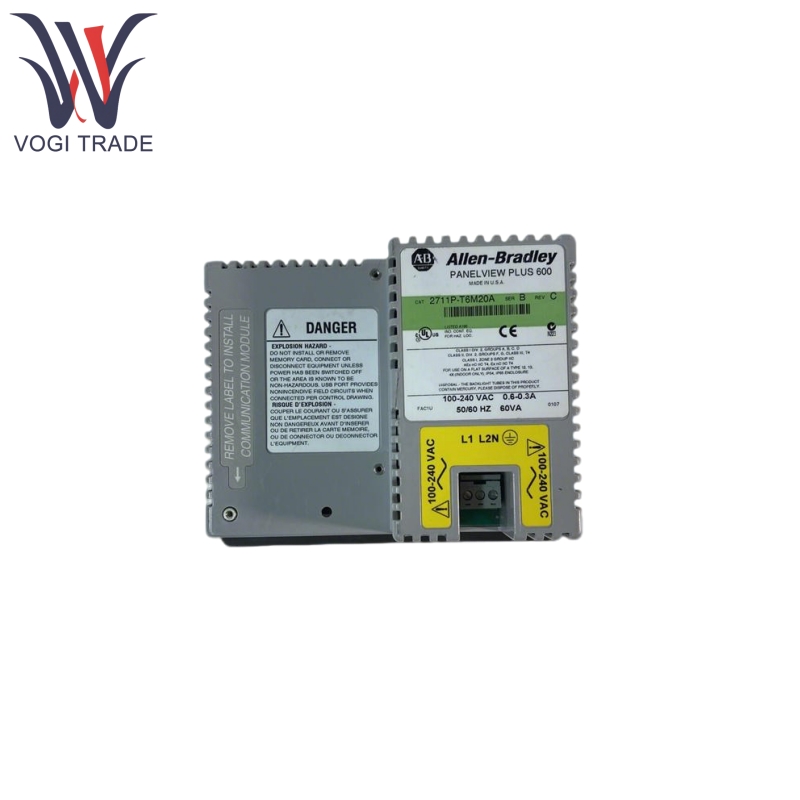

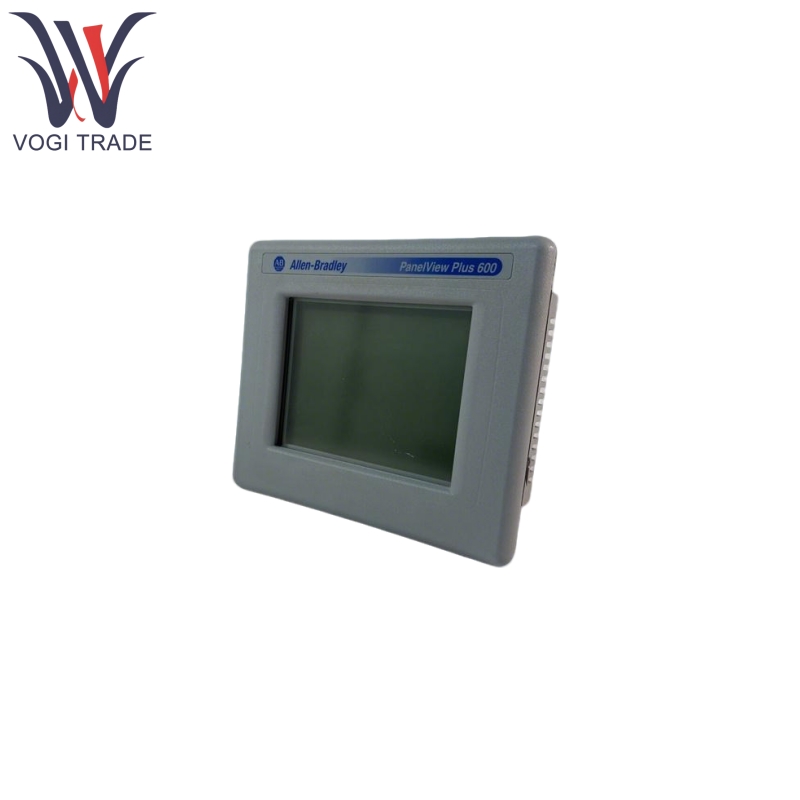

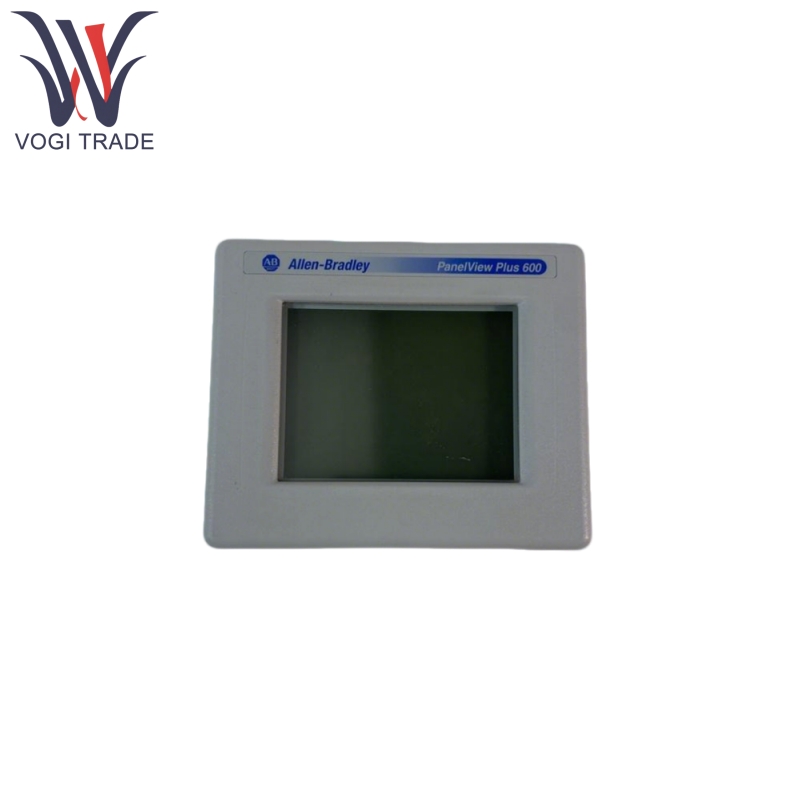

Brand: Allen Bradley Description: A PanelView Plus 600 HMI Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Allen Bradley 2711P-T6M20A belongs to legacy product, which is mainly used for human-machine interaction (HMI) in industrial automation scenarios. It is designed to realize visual interaction between operators and industrial control equipment, including real-time data display, equipment status monitoring, alarm prompts and command input.
|
Manufacture |
Allen Bradley |
|
Model Number |
2711P-T6M20A |
|
Ordering Number |
2711P-T6M20A |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8543709990 |
|
Dimension |
16*16*16cm |
|
Weight |
0.6kg |
Product Features
Allen Bradley 2711P-T6M20A is a pure touch input (the “T” in the model number stands for Touch), no physical buttons, operated through the 5.7-inch grayscale screen, and supports graphical interface display.
Allen Bradley 2711P-T6M20A is compatible with legacy FactoryTalk View ME application, which allows customization of interface logic and linkage control.
Allen Bradley 2711P-T6M20A supports Ethernet (10/100 Mbps), RS-232 (DB9) and USB interfaces (V1.1), with “20” in the model number standing for the combination of “Ethernet, RS-232, USB”, and can communicate bi-directionally with PLCs, Sensors and other devices can communicate with PLCs, sensors and other devices in both directions.
Allen Bradley 2711P-T6M20A is equipped with one CompactFlash (CF) Type I slot for program backup, data log storage and firmware update (standard on legacy terminals).
Allen Bradley 2711P-T6M20A runs Windows CE 4.1 operating system (the standard OS of legacy PanelView Plus 400/600) and supports protocols such as DH-485, ControlNet, etc. (by adding a communication module, e.g., 2711P-RN3), which is adapted to the legacy industrial bus environment.
Allen Bradley 2711P-T6M20A has a built-in real-time clock, supports data timestamp recording, and non-volatile memory for storing configurations and programs, with short-term data retention after power failure.
Allen Bradley 2711P-T6M20A is adaptable to industrial environments, with an operating temperature range that meets legacy terminal standards (typically 0°C to 50°C) and an anti-electromagnetic interference performance that meets industrial-grade requirements.
Product Using Principle
Allen Bradley 2711P-T6M20A can be connected to PLC via Ethernet or RS-232 interface to receive real-time data, which can be displayed in the form of text and graphs through the 5.7-inch grayscale screen.
The operator inputs control commands by touching the screen, and the terminal converts the commands into electrical signals and transmits them to the controller to drive the actuators.
Allen Bradley 2711P-T6M20A can store historical data logs or backup application programs via CF card, and supports the extension of bus protocols via communication modules to meet the needs of multi-device networking.
Product Parameter
Below detail is for Allen Bradley 2711P-T6M20A A PanelView Plus 600 HMI.
|
Parameter |
Specification |
|
Input Type |
Touch screen (touch-only, no keypad) |
|
Display |
5.7-inch grayscale ( "M" in the model stands for Grayscale) |
|
Processor |
NEC VR5532A MIPS architecture, 350 MHz (standard CPU for legacy PanelView Plus 400/600) |
|
Memory |
64 MB PC100 SDRAM (RAM) 64 MB non-volatile memory (built-in storage) |
|
Power Input |
AC power supply ( "A" in the model stands for AC), non-isolated power supply |
|
Operating System |
Windows CE 4.1 |
|
Communication Interfaces |
- Ethernet: 1×10/100 Mbps - Serial: 1×RS-232 (DB9) - USB: 1×USB-A (V1.1) |
|
Storage Expansion |
1×CompactFlash (CF) Type I slot |
|
Compatible Software |
FactoryTalk View ME runtime 3.20~5.10 |
|
Operating Temperature |
0°C~50°C (typical range for legacy terminals) |
|
Electromagnetic Compatibility |
Compliant with industrial standards, resistant to ESD and surges (refer to legacy terminal specifications for detailed parameters) |
