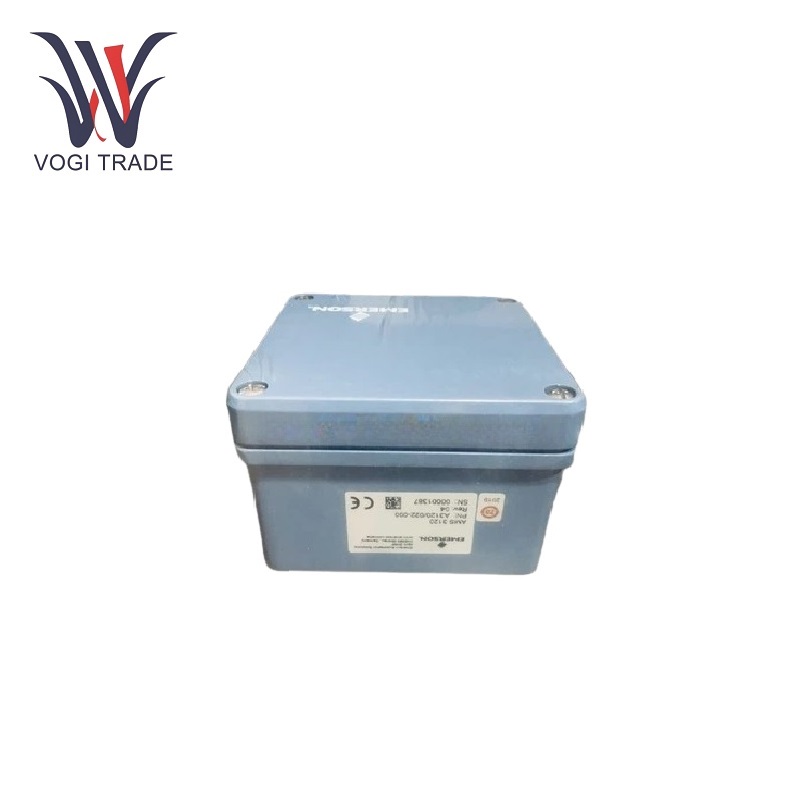

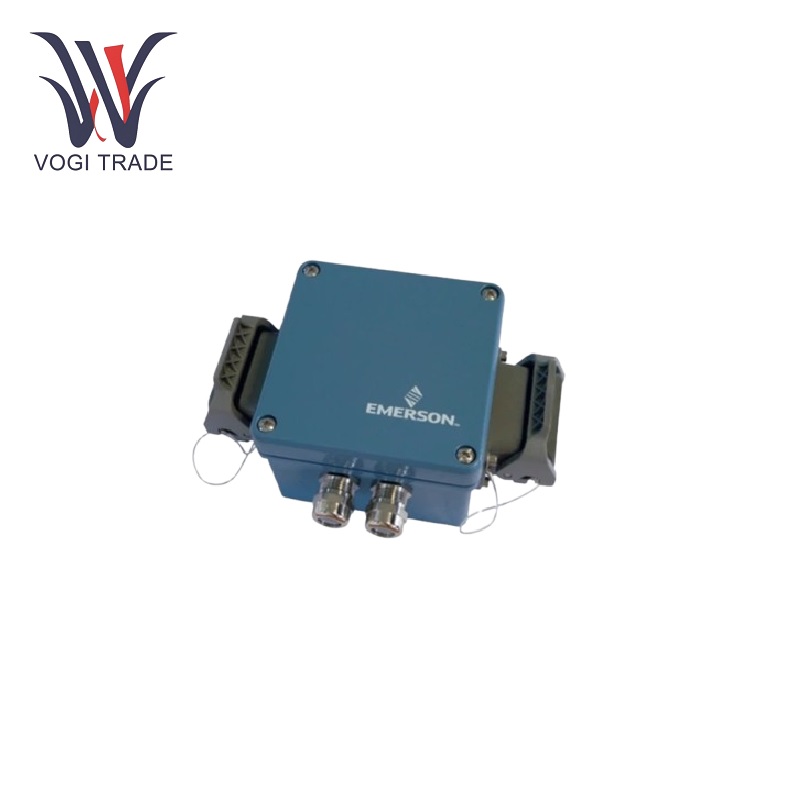

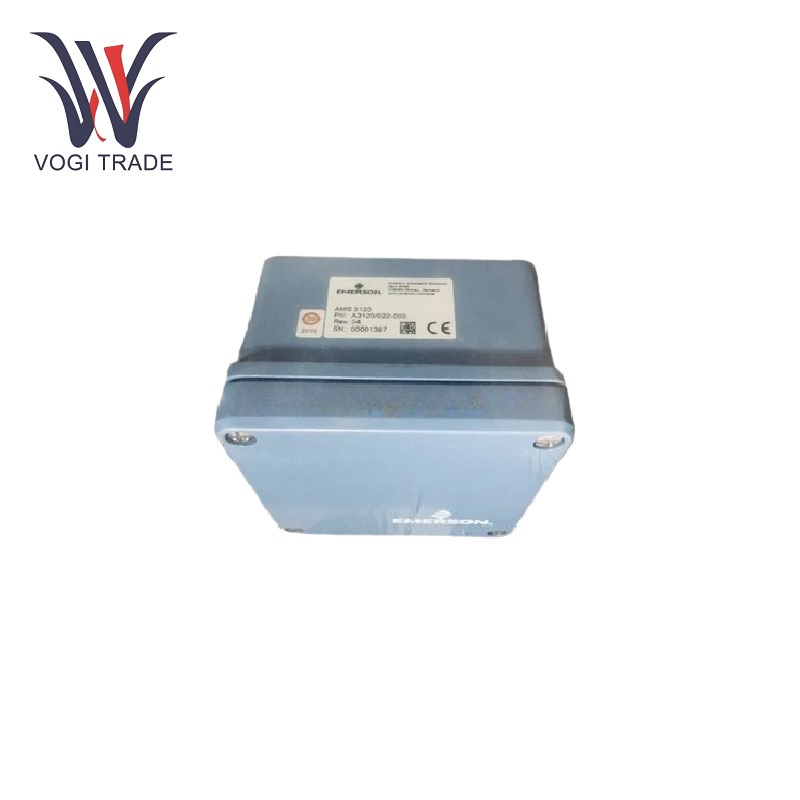

Brand: EPRO Description: Dual Channel Vibration Monitor Condition: New Warranty: 1 year Inventory Qty: 3 Payment term: T/T Shipping Port: ShenZhen EPRO A3125/022-010 has a temperature range of -20-65°C with an environmental shock limit of 20 g pk, allowing it to function reliably in extremely harsh conditions. EPRO A3125/022-010 also embodies relatively high accuracy, synchronization, and durability, thus making a valuable component in a wide variety of industries.
Manufacture |
EPRO |
Model Number |
A3125/022-010 |
Ordering Number |
A3125/022-010 |
Catalog |
CSI 6500 |
Country Of Origin |
Germany |
HS CODE |
85389091 |
Dimension |
16*16*12cm |
Packing Dimension |
18*18*14cm |
Weight |
0.8kg |
Specification
Sensor Input Type: ICP Piezoelectric Sensors.
Measurement Range: Freely selectable through configuration software, depending on the measuring range of the applied sensors.
Linearity Error: 0.2% at 25 degrees Celsius with sensor<2.2% at 25 degrees Celsius.
Output Stability as function of Temperature: < 0.08%/10k.
Long-term Drift: Max. 1% of measuring range.
Frequency Range: High-pass filter from 5 Hz up to 5000 Hz, low-pass filter from 50 Hz to 5000 Hz.
Connection type: "Harting" socket.
Environmental Shock Limit: 20 g pk.
Temperature Range: -20 up to 65 degrees Celsius.
Sealing: IP65.
Features
Versatile Measurement Configuration: EPRO A3125/022-010 was designed particularly for measuring absolute bearing vibration signals, which promotes a range of common applications for it, based on the monitoring of vibration conditions of rotary machines, such as small steam, gas, and hydro turbines, compressors, pumps, and fans.
Configurable Settings: Configurable settings for measurement, alarm, and output provided, allowing the user to tailor the monitor to specific application needs and operational conditions.
High Precision: With a linearity error of 0.2% at 25 degree Celsius and output stability better than 0.08%/10k, EPRO A3125/022-010 can deliver extremely precise vibration measurements, which provides sufficiently early fault detection and accurate diagnostics of machinery problems.
Wide Compatibility: The combination of an ICP piezoelectric sensor with the "Harting" socket connection type allows compatibility with several sensors and easy integration into existing monitoring setups, thereby providing system flexibility for expansion and upgrades.
Reliable Pertformance: EPRO A3125/022-010 has a tough design, an environmental shock limit of 20 g pk, together with an extended temperature range of -20 degree Celsius up to 65 degree Celsius, to be implemented in harsh industrial environments ensuring stable and reliable operation.
Application Fields
Power Generation: EPRO A3125/022-010 can find applications in power plants for measuring the bearing vibration of small and medium-sized steam, gas, and hydro turbines, ensuring safe and stable operations of power generating equipment, thus enhancing power generation efficiency and reducing maintenance costs.
Petrochemical industry: EPRO A3125/022-010 is mostly applied to rotating machinery such as compressors and pumps in petrochemical plants continuously monitoring the vibration status of the equipment, allowing to predict a potential failure beforehand and hence prevent a production accident and losses triggered by equipment failure.
Industrial Manufacturing: In different manufacturing areas such as auto manufacturing and machine processing, EPRO A3125/022-010 can be the instrument for monitoring the vibration of production equipment like motors, fans, and machine tools in normal operation of the production line, which in return improves the quality of products by substantially reducing production downtimes.
HVAC Systems: EPRO A3125/022-010 can monitor the vibration of fans and pumps in heating, ventilation, and air conditioning systems alike to promote efficient operations of the system, improving energy efficiency and lowering noise and vibration pollution.
