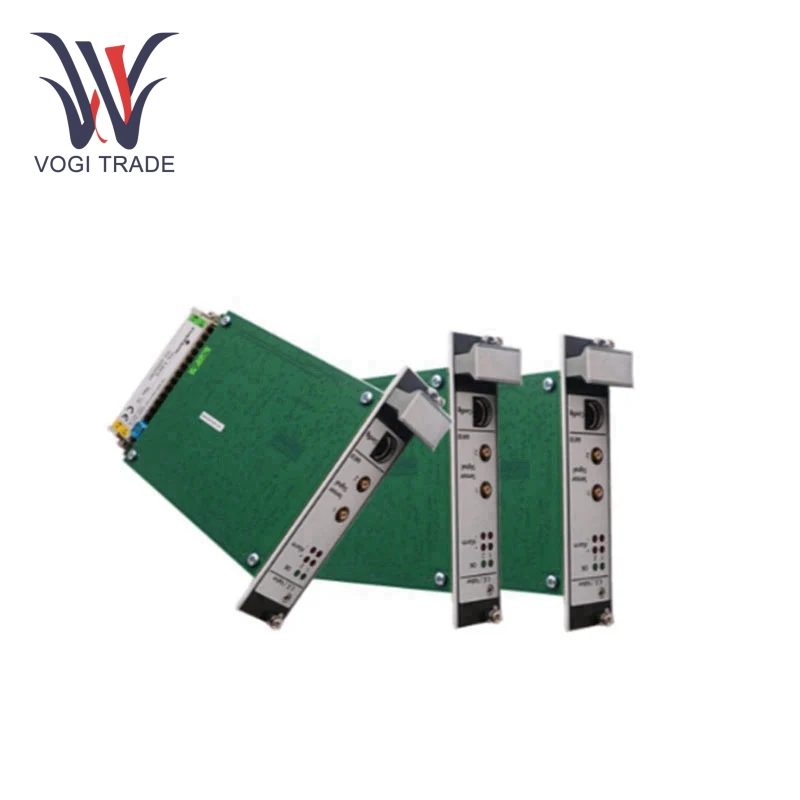

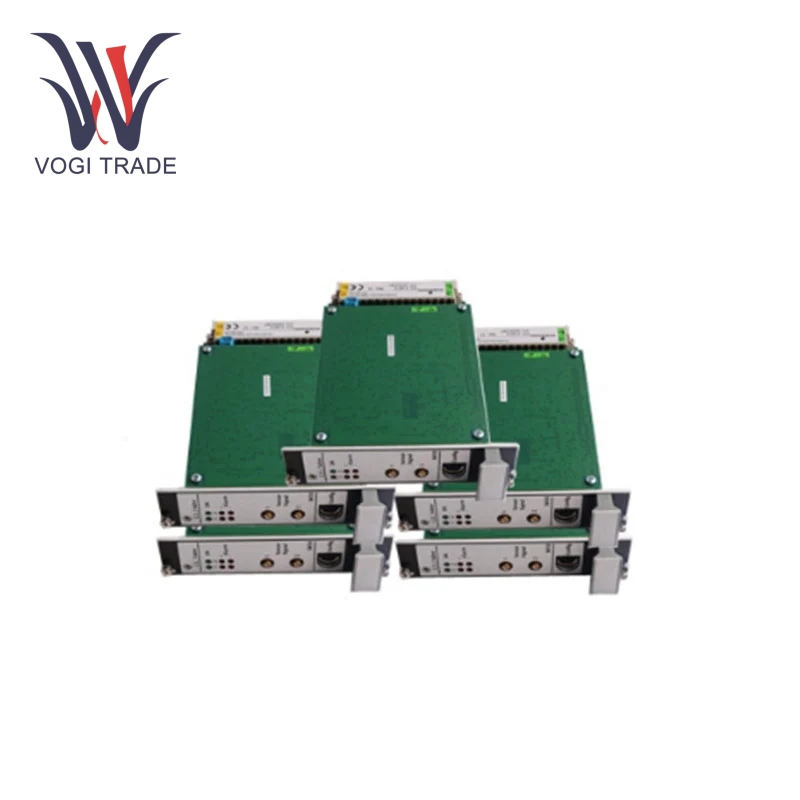

EPRO A6120

Technical Parameter

Input voltage range: -5 to +15 VDC, with two inputs of electro-dynamic (electro-mechanical) type and a differential input. Output circuit with analog voltage, 4-20 mA, is provided by an alarm relays section.

Accuracy: ± 0.5%;

Resolution: 0.001 V;

Sampling Rate: 1000 Hz;

Operating Temperature Range: −10 to +60 °C;

Storage Temperature Range : −55 to +85 °C;

Humidity:  0 to 95 % RH, Non-condensing.

Features

Dual-channel monitoring: EPRO A6120 contains two inputs, which allow simultaneous monitoring of relative vibration between two shafts, such as rotor and stator in a motor or generator.

Wide sensor acceptance: EPRO A6120  provides a concentric input from a number of electro-dynamic vibration sensors, thus giving freedom in choosing sensors according to unique application requirements.

Differential input: The differential input can help eliminate the effects of common-mode noise, thus allowing for more accurate and reliable vibration measurements.

Alarm and Shutdown: Configurable for alarm and shutdown based on user-defined threshold, thus protecting critical rotating machinery in a timely way.

Field Configuration: EPRO A6120C is capable of being a field-settable module without the need for complicated programming or hardware alteration.

High Precision: EPRO A6120 gives accurate vibration measurements with accuracy ± 0.5% and 0.001 V resolution, allowing for early detection of even tiniest vibrations and faults in machines to prevent major breakdowns and cut back on maintenance costs.

Wide Frequency Range and High Sensitivity: The machine is able to sense wide-frequency vibrations with high sensitivity, capable of detecting even the slightest vibrations. This is important in monitoring the health of rotating machinery and structures.

Low Noise Floor: The low noise features of EPRO A6120 facilitate the accurate monitoring of small vibrations from background noise, thus allowing the provision of reliable data analysis.

Application Fields

Manufacturing Industry: EPRO A6120 is utilized in various manufacturing processes to monitor the vibration of motors, pumps, fans, and similar heavy machinery. Thus, It help manufacturers detect the early signs of a potential equipment failure, optimize scheduled maintenance, and also enhance the production efficiency by having fewer unplanned interruptions in production lines due to No mechanical breakdowns are reported.

Petrochemical Industry: EPRO A6120 is employed in refineries and chemical plants to appoint for monitoring the vibration of compressors, pumps, and any of the critical equipment which utilize hazardous or precious substances.

HVAC Systems: It monitor the vibrations of fans and pumps is done in heating, ventilation, and air conditioning systems. As a means of guaranteeing the smooth functioning of these components, this allows an efficient level of energy usage and noise reduction during optimal system performance.

Structural Health Monitoring: In addition to material machines, EPRO A6120 can be utilized in monitoring the vibrations of buildings, offshore platforms, and bridges. By providing indications of unusual vibrations that could cause structural damage, it can alert fast to maintain and repair the structures efficiently and ensure their safety and integrity.
