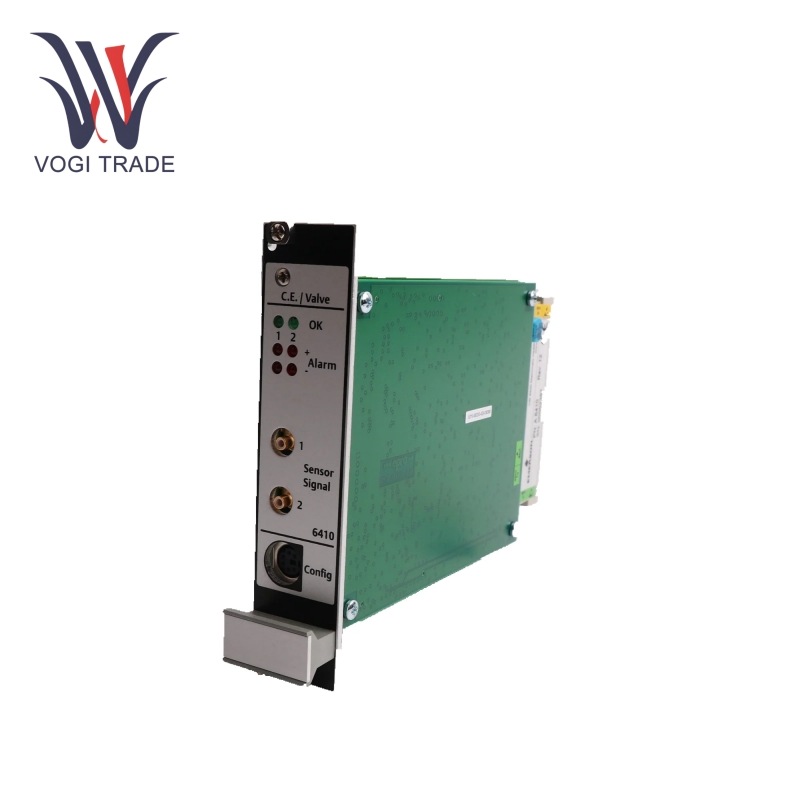

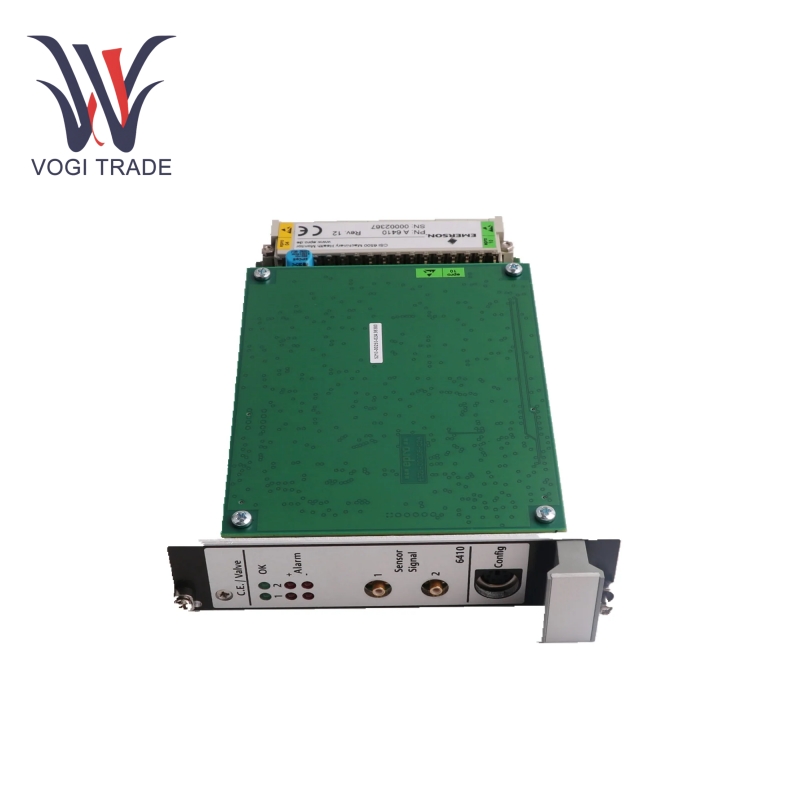

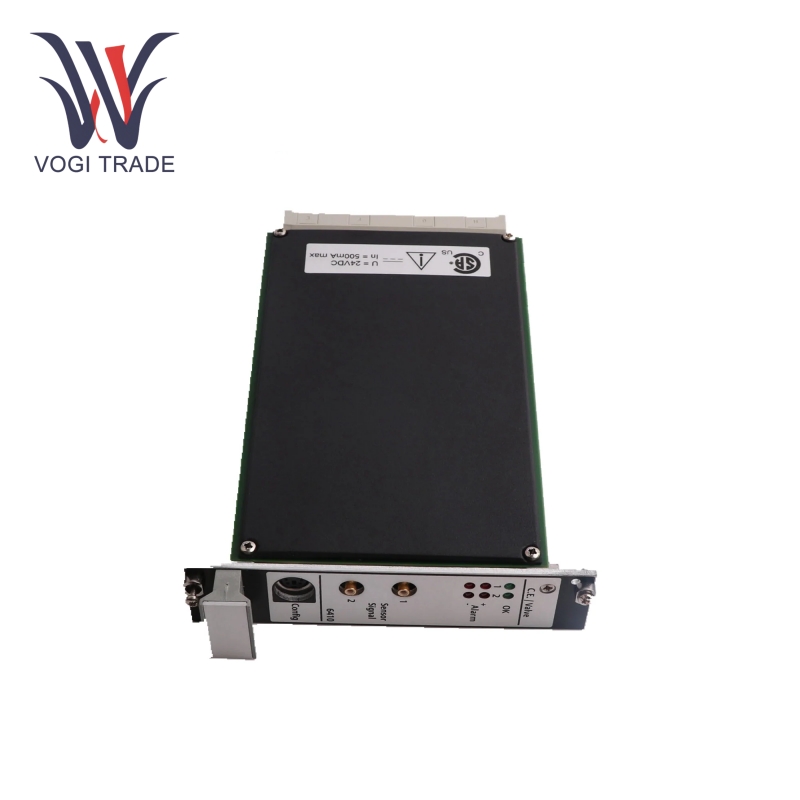

EPRO A6410

Technical Parameter

Power Supply: 24V DC is usual; current is up to 250 ma, and maximum power consumption is 6W.

Inputs: Two independent, differential inputs; the input type may be inductive, half bridge, full bridge, or a differential transformer; compatible with Emerson sensor inputs such as PR 9350/xx and K 20315/xx.

Input impedance: 200 kΩ.

Input voltage range: 3.6 VDC.

Outputs: EPRO A6410 provides front-and rear-buffered outputs of 0/4-20 ma output and 0-10 V output for each channel. The output accuracy is ± 1% of full scale and load < 500 ω. The rear buffered outputs provide a raw buffered output signal of 0-12 V peak to peak with permissible load >100 kΩ, and the DC voltage outputs yield an accuracy of ± 1% of range with a load higher than 10 kΩ.

Measurement Range and Resolution: ± 10 mm.

Precision: ±0.2% of full range for position monitoring and ± 1% of full scale for other measurements.

Working Temperature: 0 °C - 65 °C.

Storage temperature: -30 °C - 85 °C.

Relative Humidity: 5 - 95%, non-condensing.

Vibration and Shock Resistance: EPRO A6410 fulfills IEC 68-2 specifications with 0.15 mm vibration at 10-55 Hz and 19.6 m/s² at 55-150 Hz, withstanding peak shock over 98 m/s² for 16 ms.

Features

Dual-channel Measurement: Status of two channels could be simultaneously monitored; measurements in position, vibration, displacement, angles, forces, torsions, or any other physical quantity applicable to rotating equipment can be measured.

Sensor Compatibility: Subject to the type of application, Embro A6410 can be provided with inductive-style displacement sensors so that flexibility within sensor selection is permitted.

Self-checking functions: generally accepted as relevant to the monitoring of the hardware environment.

Communication interface: The configuration, parameter, and status monitoring of the hardware can be performed and can easily integrate to other devices and systems using RS-232 interface in EPRO A6410.

Compact and Space-Saving/Internal Use Design: 3U-size, 1-slot plug-in module design of it reduces cabinet space more than an old model of four-channel 6U size because of the compact output. The hot-swappable module allows for quick and easy replacement and addition of modules without shutting down the system, thus minimizing the attendant costly downtime during repairs or upgrades.

Application Fields

Oil and gas： EPRO A6410 performs monitoring of position and motion of valves, pumps, and compressors in oil and gas plants. This allows operators to detect any abnormal behavior or potential leaks earlier, increasing safety and reliability while avoiding expensive production stoppages and environmental contamination.

Chemical industry: It is used to monitor chemica reactor vessels, pipes, and other equipment in chemical processing. Through its provision of information on the condition of such equipment, it works towards enhancing the optimization of the maintenance schedule and hence prevention of chemical spillage, thereby allowing for the continuous operation of chemical processes.

Pulp and paper industry: EPRO A6410 monitors the position and vibration of paper machine rolls, motors, and other rotating equipment. This results in improved product quality and reduced equipment downtime, all of which contribute to enhanced production efficiency.

Metallurgical:To monitor the position and movement of different metallurgical equipment-applied rolling mills, crushers, and conveyors. It allows for a steady-state operation of these machines, EPRO A6410 assists in enhancing product quality, averting further repairs and accidents in the workplace setting.
