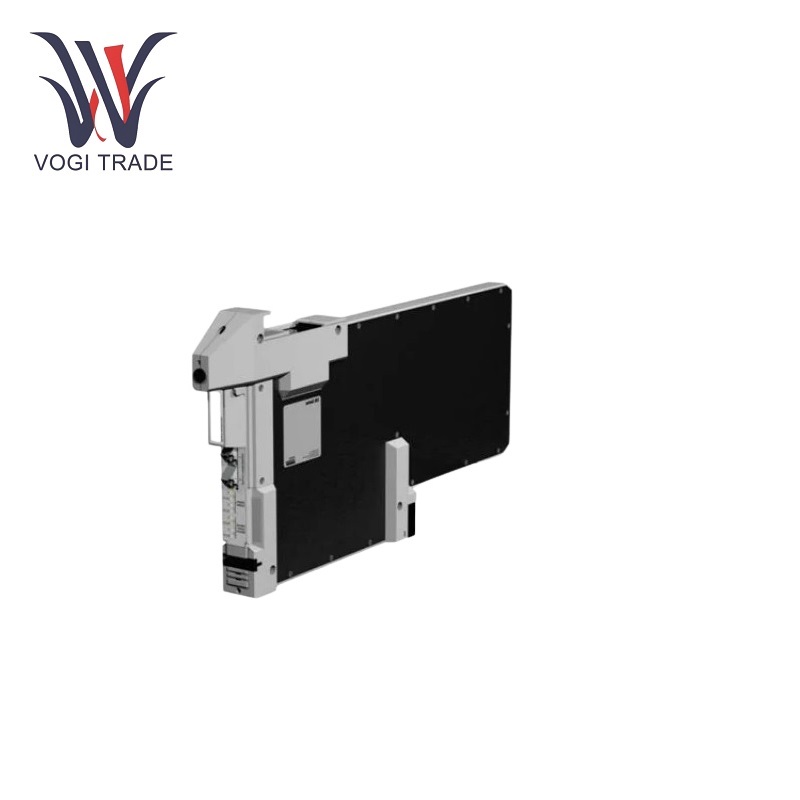

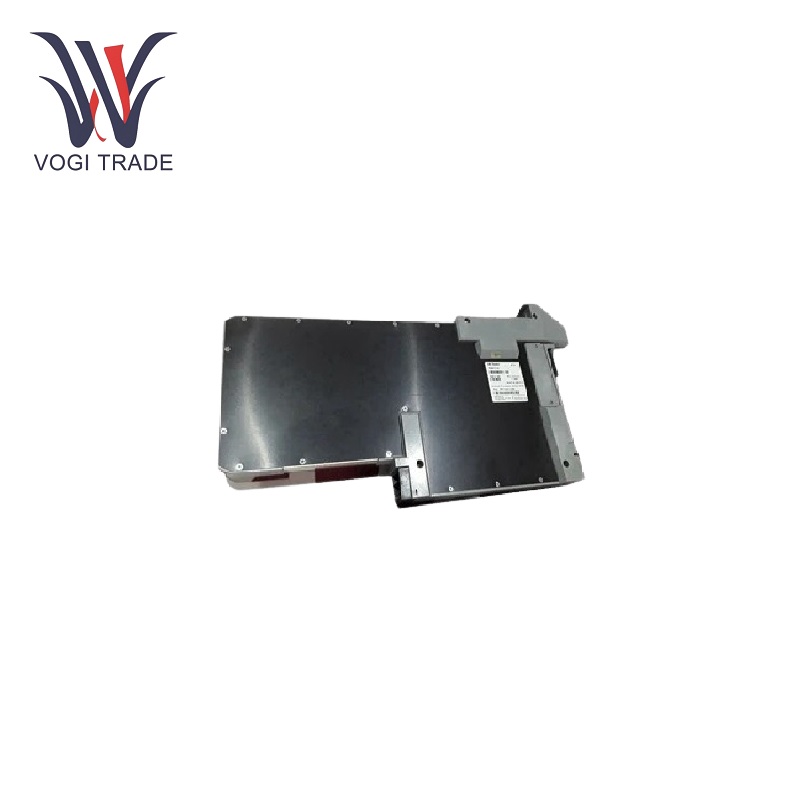

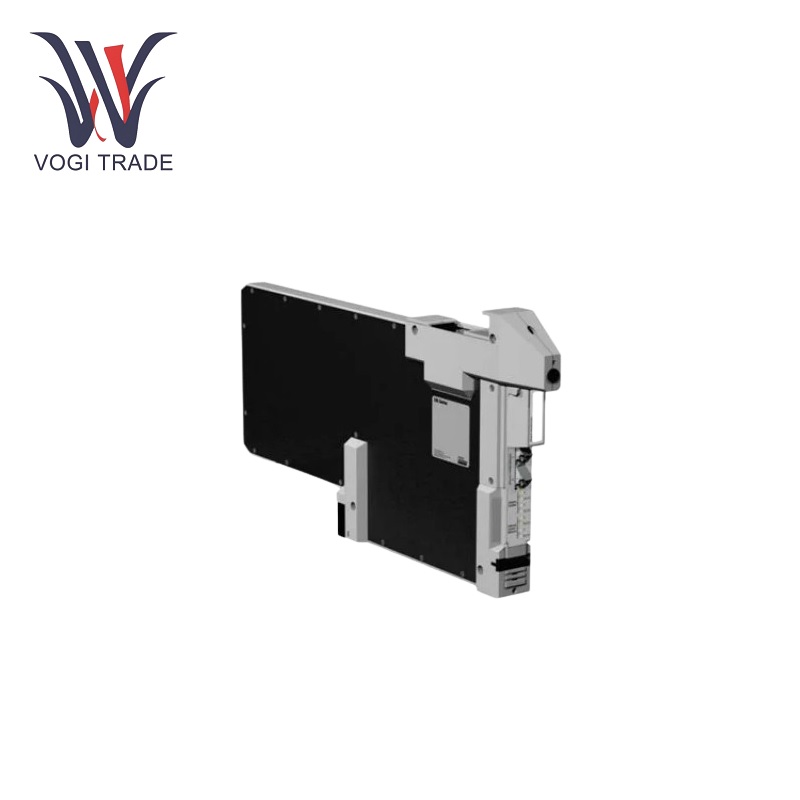

Foxboro CP60 P0961FR

Working parameters

Power supply: Foxboro CP60 P0961FR operates at 24VDC. This is a common and fairly reliable voltage level in most industrial environments. The voltage input tolerance is high. The value is ± 20%, so the device can work normally even if there is a slight fluctuation in the voltage input. Therefore, it can withstand various power supply conditions and is therefore immune to power quality issues to a certain extent.

Processor and memory: It has a powerful processor that is powerful enough to cope with complex control algorithms and high-speed data processing tasks. The memory configuration has volatile and non-volatile memory. Volatile memory, such as RAM, is a fast-access memory required for running programs and temporary data storage in the running state. Non-volatile memory, such as flash memory, is used to store control programs, configuration settings, and historical data. Although the memory size may vary, they provide enough power to store a large amount of control logic and data history in typical industrial control applications.

Communication Interfaces: There are several such communication interfaces available on the device. Ethernet at 10/100Mbps can be used to connect this device to an industrial Ethernet network for fast communication with devices such as programmable logic controllers (PLCs), human-machine interfaces (HMIs), and supervisory control and data acquisition (SCADA) systems. Serial communication ports such as RS232 and RS585 may also be present. While RS232 communicates with traditional devices or provides simple point-to-point communication, RS485 is able to support multi-drop communication, allowing daisy-chain connection to multiple field devices. All of these communication interfaces ensure that the CP60 P0961FR is capable of efficient data and command exchange in such a complex industrial control environment.

Product Features

Control Capabilities: The Foxboro CP60 P0961FR is a versatile multi-loop controller that offers a variety of control strategies, including proportional-integral-derivative (PID) control, which is commonly used for process variable control such as temperature, pressure, flow, or level. It can also be set up as a complex model-based control algorithm to precisely control industrial processes to better optimize production efficiency. Multiple control loops with their own parameters and tuning options can be configured to meet the different needs of various processes.

Data Acquisition and Monitoring: The device can collect data from many field sensors and instruments. It can interface with analog and digital input signals and convert them into digital values for further processing. The acquired data can be used to monitor industrial processes in real time, and the current values of process variables, trends over time, and historical data can be projected to operators through a connected HMI or SCADA system. This data is essential to evaluate the performance of the process, identify any abnormal conditions or deviations from normal operation, and implement corrective actions.

Alarm and Event Management: The Foxboro CP60 P0961FR enables a fully integrated comprehensive alarm and event management system. It can be configured to monitor certain conditions in the process and generate alarms based on exceeding specific limits or abnormal events. Alarms can also be categorized according to severity, and actions can be defined for each level. For example, a minor alarm may only notify the operator, while a severe alarm may allow a shutdown, avoiding equipment damage or saving human lives. It tracks all occurring alarms and events for troubleshooting, process failure analysis, and reliability improvements.

Programmability and flexibility: The unit has a very high programmability, enabling engineers to customize/control logic according to process requirements. It has a user-friendly programming environment that allows the use of various programming languages and even graphical programming tools. It can then use proprietary control algorithms, operation sequencing and interlocking functions. The flexibility of the equipment makes it suitable for a variety of industrial applications - they are customized to suit different process requirements and changes in production processes over time.

Application Scope

Process Industry: Foxboro CP60 P0961FR can control chemical reactions, flow rates and temperatures of reactants in the chemical industry, ensuring the quality and safety of chemical production processes. In the petrochemical industry, it is suitable for refining processes such as distillation, cracking and mixing , where very precise control of temperature, pressure and flow is required to maximize product yield and quality. In the pharmaceutical manufacturing sector, this helps control the sterility of the drug manufacturing process, quality and production conditions under strict compliance with regulatory controls.

Power Generation: Foxboro CP60 P0961FR is used in thermal and nuclear power plants to control boiler operation, turbine speed and generator output. It monitors and controls steam pressure, temperature and flow to achieve economical and safe power generation. It also assists power plant protection and control systems to detect faults and abnormal conditions and take practical measures to avoid major failures and ensure grid stability.

Manufacturing and Automation: In automotive manufacturing plants, it can be used to control robotic assembly lines, welding processes, paint booths and conveyor systems. It ensures the positioning and operating performance of robots in a very precise manner, achieves the required welding and painting quality, and ensures smooth material flow on the production line. In food and beverage manufacturing, it controls processes such as mixing, heating, cooling and packaging to ensure the quality and consistency of the final product and guarantee certain sanitary conditions. In general manufacturing, machine control, process automation and quality control are its common applications to increase production efficiency, reduce waste and improve product quality.
