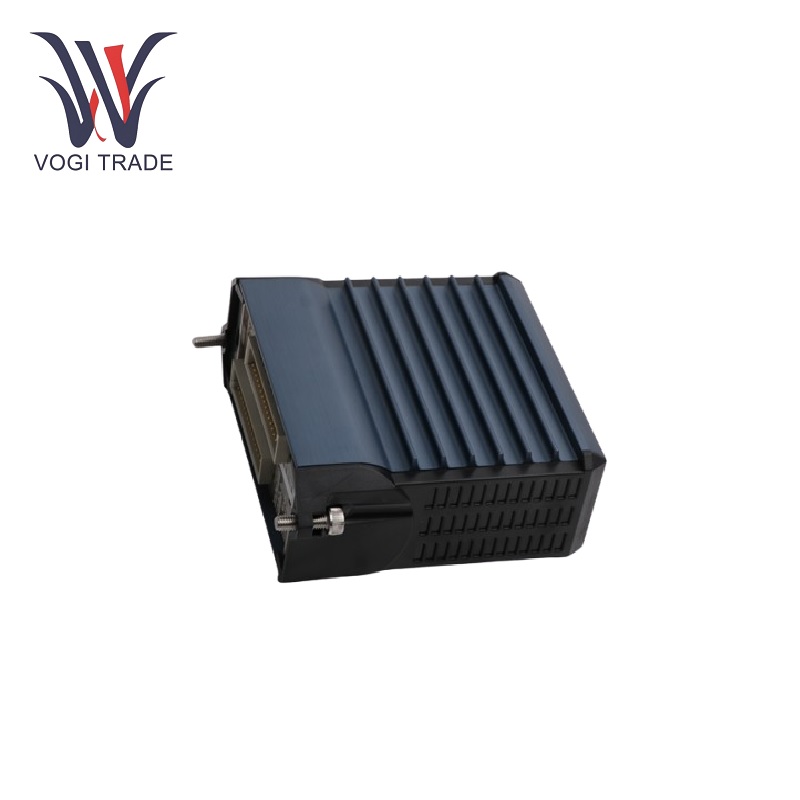

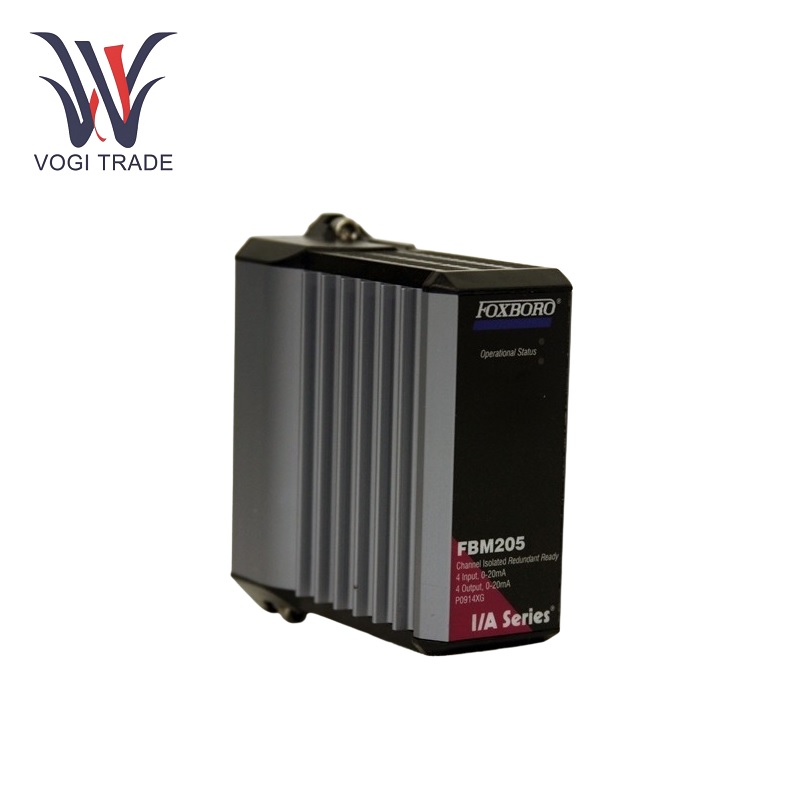

Foxboro FBM205

Operating Parameters

Operating Voltage: Most of its operating current consumption is nominally 24VDC. The stable voltage input gives the module impressive continuity and reliability. The low voltage used ensures efficient operation.

Temperature: The Foxboro FBM205 can operate over a wide temperature range; from -40°C to 85°C. This makes it a good interface for working within a variety of industrial boundaries, from extremely hot and cold outdoor plants to industrial process destruction environments that affect temperature levels.

Input/Output Characteristics: The Foxboro FBM205 may be quite gifted in the careful arrangement of input and output channels. It usually has several analog input channels. Signals of different types and ranges can be easily acquired through these channels. They can accommodate input signals from 4 to 20mA or 0 to 10VDC. This is often seen in the output of factory-installed sensors. These are digital input channels that can accept images of one or more variants. Digital output channels are usually able to drive certain actuator or indicator devices.

Product Features

Signal Acquisition: Basically, the Foxboro FBM205 samples signals from field devices. It samples analog signals from signal sensors such as temperature sensors, pressure sensors, and flow sensors and converts them into digital binary values with a determined resolution so that they can be processed in the control system. The conversion is very accurate, ensuring that the transmitted data has minimal errors.

Data Communication: The Foxboro FBM205 connects field devices with the control system. It transmits the acquired and processed data back to the central processing unit or other system control elements. It uses reliable communication protocols such as Foundation Fieldbus to ensure fast and accurate data transmission. Real-time monitoring and control of industrial processes is established. For example, an industrial furnace will send furnace temperature information to the control room instantly so that immediate action can be taken if necessary.

Self-diagnosis: The Foxboro FBM205 has a complete self-diagnostic unit. It constantly monitors the integrity of itself and the connected field devices. If it detects any abnormality, such as sensor failure or communication error, it will issue an alarm or diagnostic message, which again saves some time in the detection process while preventing equipment downtime and enhancing continuous activities.

Application Areas

Process Industries: The Foxboro FBM205 has many applications, especially in the chemical and petrochemical industries. It is used in a variety of process monitoring and control applications, such as in the areas of chemical reactions, multimodal flows, and condenser temperature control. Chemical plants that produce fertilizers allow for the management of raw material flows as well as temperature and pressure conditions during the synthesis process.

Power generation: It is used to monitor and control input and output parameters of generators, turbines, and boilers, both in thermal and nuclear power plants. This includes processing signals from sensors that measure steam pressure, turbine speed, and generator output voltage and current. This ensures safe and efficient operation of power generation facilities.

Manufacturing: Used in industrial manufacturing plants to monitor and control machines. It can be integrated with production lines to control the operation of motors, actuators, and other equipment. For example, it can control robotic arms in the automotive assembly process and monitor the performance of machining tools.
