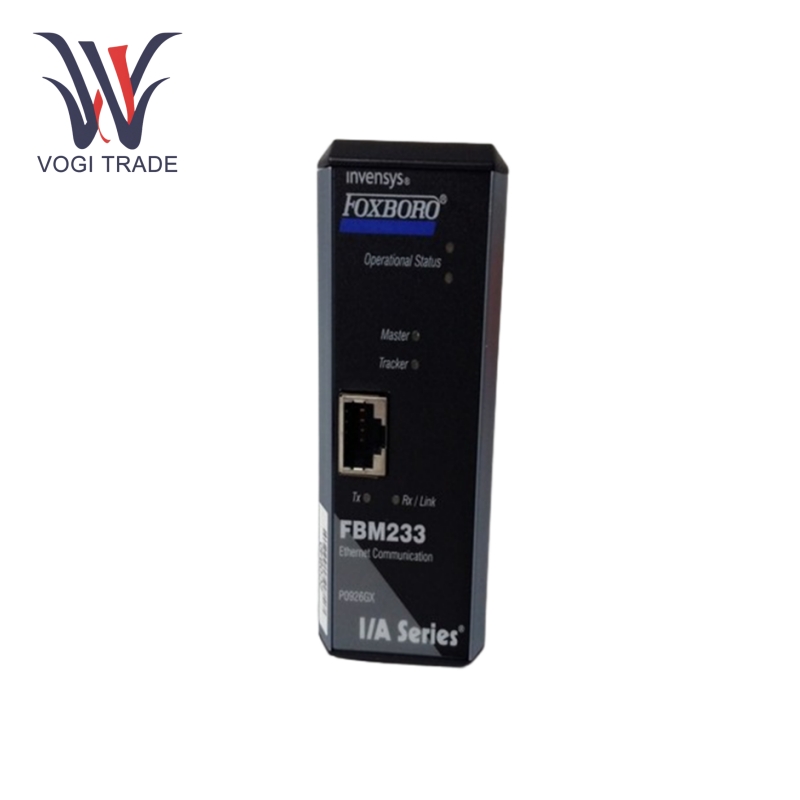

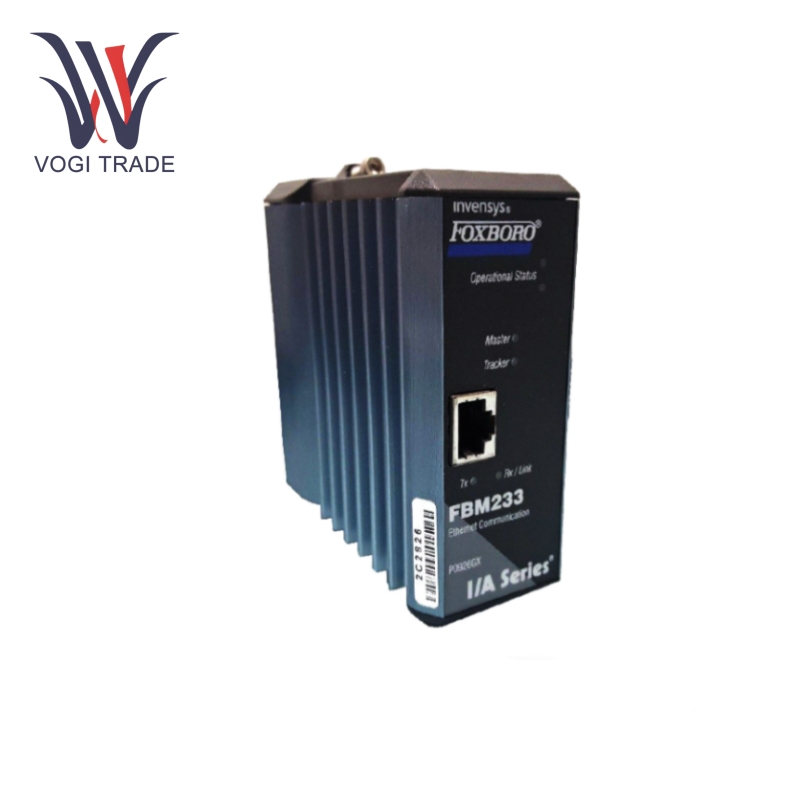

Foxboro FBM233

Operating Characteristics

Operating Voltage: The utility requires a specific range of input voltage to interface with the power structure of industrial plants. It accepts input voltages in the range of 20 - 30 VDC in order to provide a stable power supply for internal circuits and functions.

Operating Temperature: Foxboro FBM233 is able to operate in a very wide temperature range of -20°C and 60°C ambient temperature. Such a wide temperature range allows it to be installed in a very wide range of industrial environments, from open switchgear to thermal treatment in high-temperature process plants. It complies with a full range of industrial standard communication protocols such as Foundation Fieldbus H1. This enables the product to be seamlessly integrated into industrial networks. The communication speed and data transmission rate are designed to achieve real-time information exchange and control command transmission. For example, the maximum achievable data transmission of 31.25 kito per second enables good communication between field instruments and control systems.

Product Features

Signal Conditioning: Foxboro FBM233 is able to perform signal conditioning with precision. It can accept various input signals from any field sensor: temperature sensor, pressure sensor and flow sensor. These signals are then conditioned, filtered and amplified to make them suitable for further processing. An example of signal conditioning may occur if a pair of electrical signals from a temperature sensor is weak: Foxboro FBM233 amplifies it and sets it in digital form so that it can be read and processed by the control system.

Data Acquisition and Conversion: It is a widely used data acquisition module. It continuously samples inputs at a specific rate, such as several times per second. The acquired analog data is converted into digital format using a high-precision A/D, and the prepared digital information is sent to the control system through the network for further analysis, control decisions and monitoring.

Supervision and Monitoring Features: Foxboro FBM233 has built-in diagnostics. It provides self-monitoring of internal components as well as connected field devices. Faults such as sensor failure, cable breakage or power failure are easily detected. Alarms will be activated and diagnostic information will be sent to the control system for possible faults, thereby minimizing intervention delays.

Application Scope

Petrochemical: In petrochemical plants, Foxboro FBM233 is widely used to monitor and control various processes. This may include connecting to multiple field devices, including temperature sensors in reactors to ensure that temperatures are properly regulated under reaction conditions. The Foxboro FBM233 can also interface with pressure sensors in pipelines to monitor and control the flow of fluids. This is important for improving the safety and operating efficiency of petrochemical production processes.

Power Generation: In power plants, it is used to monitor the performance of generators and related equipment. Temperature sensors on the generator windings can send signals to the Foxboro FBM233; this transmits information back to the control system for preventive maintenance and early detection of temperature increases. It also helps monitor steam pressure and flow in boilers, ensuring that steam is produced for power generation and distributed correctly.

Pharmaceutical Industry: The Foxboro FBM233 is essential for these facilities to ensure proper environmental conditions. It interfaces with temperature and humidity sensors in clean rooms and production areas. This helps ensure that manufacturing processes are carried out under the required environmental parameters, which is critical to the quality and safety of pharmaceutical products.
