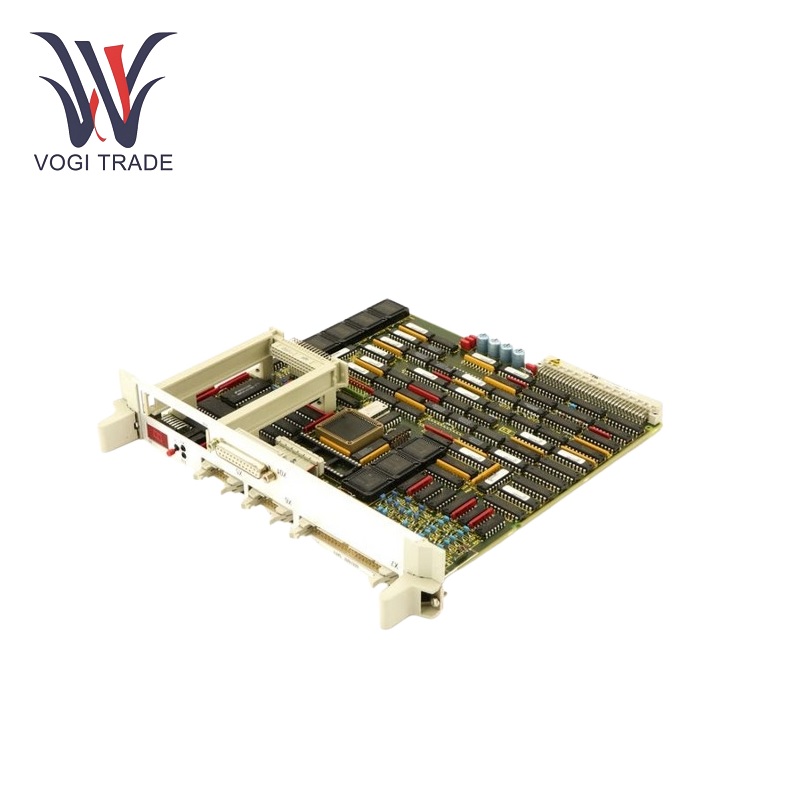

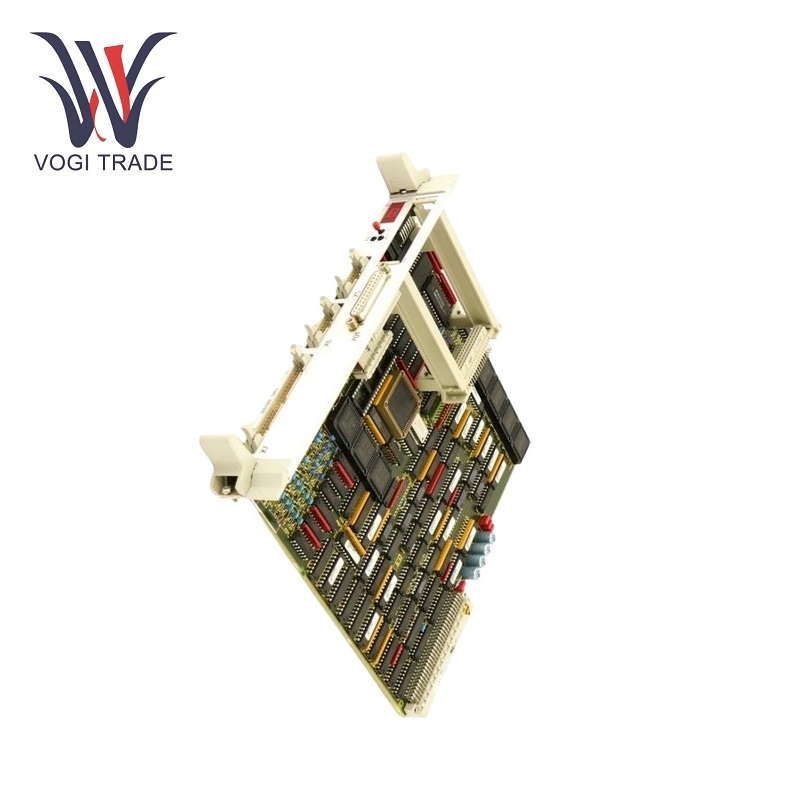

Siemens 6DD1602-0AE0

Working Parameters

Voltage: Siemens 6DD1602-0AE0 requires a normal DC voltage (20.4V ~ 28.8V), in which the defined voltage window ensures a wide range of industrial uses of the power supply circuit and provides reliable implementation.

Current consumption: Overall, it has a low and optimized current consumption, consuming about 0.5A in normal operating mode. It can run up to 1.2A, but this is only caused by peak loads or more demanding tasks (such as communication) and is still within limits to avoid overloading the power supply.

Data transmission rate: Siemens 6DD1602-0AE0 supports high-speed data transmission in communication. The Ethernetiface has a transmission rate of up to 100 Mbps, allowing connected systems to exchange information quickly. For reliable but slower data transmission, serial interfaces such as RS 485 can be used, whose operating baud rate can be configured up to 115.2 kbps.

Operating temperature range: Designed for harsh industrial conditions, it can operate in temperatures from -20 °C to +60 °C. This wide temperature range allows it to be used in cold outdoor control cabinets or hot indoor plants without degrading performance.

Maximum storage temperature: When not in use, the storage temperature is between −40 °C and +85 °C.

Product features

Intelligent messaging backbone: The Siemens 6DD1602-0AE0 becomes a central communication hub that connects automation components. It is able to integrate Siemens programmable logic controllers (PLCs), human-machine interfaces (HMIs), and different field devices. It acts as a bridge through its numerous communication ports to achieve coordinated control and real-time data sharing.

Powerful data processing capabilities: There is a powerful onboard processor that can easily handle complex data streams. For example, protocol conversion, it can convert different industrial communication protocols for interoperability. In addition, using historical data, it can provide important insights, which are essential for the optimization and troubleshooting of processes.

Fault Diagnosis and Monitoring: The Siemens 6DD1602-0AE0 comes with built-in diagnostic tools. It has a built-in self-monitoring function that monitors connected devices. If a problem occurs, it can detect the problem immediately, create a detailed error code and notify maintenance personnel. This approach can reduce downtime and improve efficiency.

Easy to get started: With a simple configuration interface, it can be easily set up to meet individual industrial needs. Operators can configure communication parameters, specify data transmission priorities, and adjust its behavior according to the needs of each application.

Application Scope

In manufacturing plants (such as automotive factories): Siemens 6DD1602-0AE0 is used to coordinate the operation of various control systems on robotic welding arms, conveyor belts and assembly lines. This ensures precise synchronization, thereby improving production efficiency and product quality.

Process Industry: It connects sensors, pumps, valves and control rooms, such as in chemical plants. It allows continuous monitoring and control of process variables such as temperature, pressure and flow to ensure safe and efficient operation.

Power Plants: Connect generators, transformers and grid connection equipment in power plants to enable the exchange of power generation data and control instructions, and promote stable power supply and grid integration.
