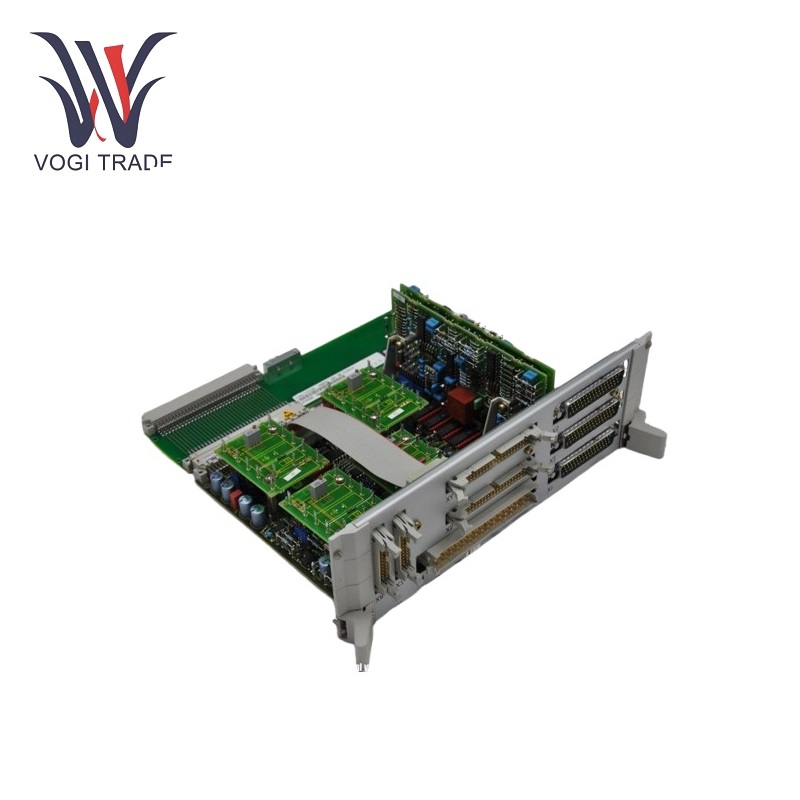

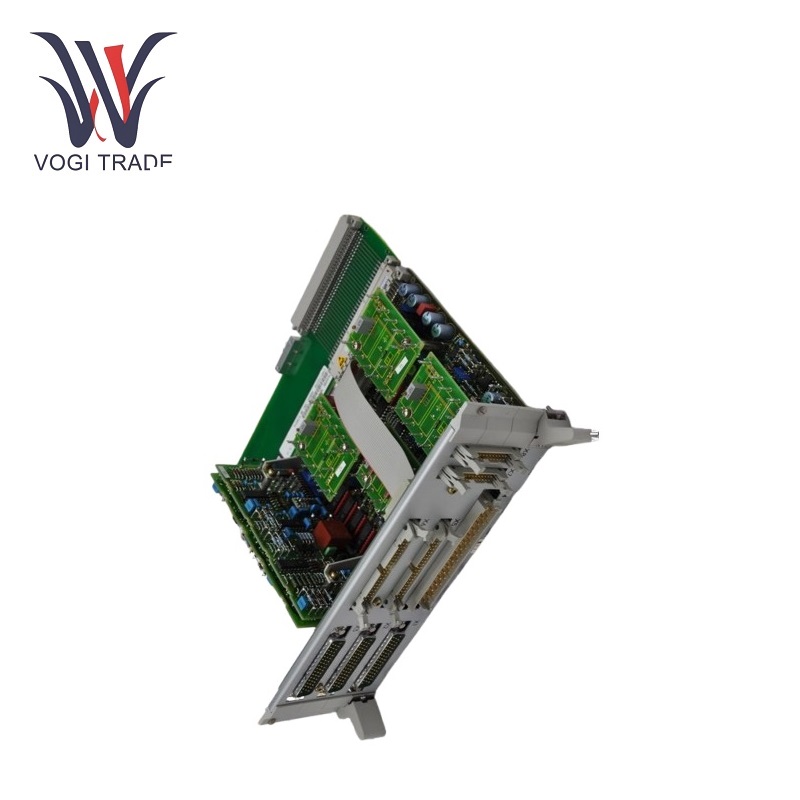

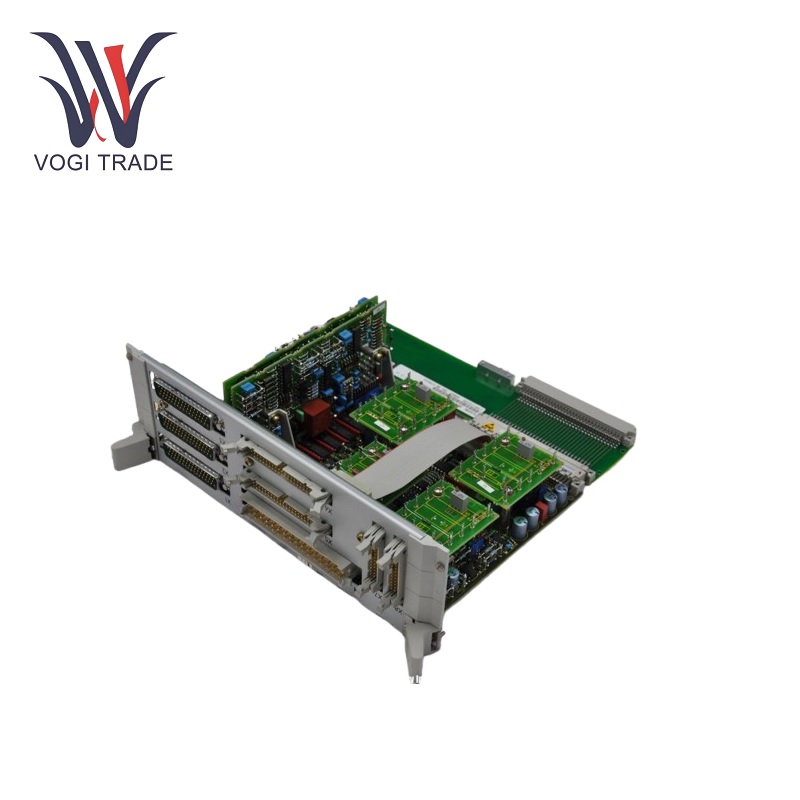

Siemens 6DD2920-0AB1

Operating Parameters

DC Input Voltage Range: Typically, the Siemens 6DD2920-0AB1 has an input voltage range of 20.4V to 28.8V. This range means that different power supply units used in industrial environments can be used compatibly with this module. It is also able to tolerate slight voltage variations that may often occur on a busy factory floor without investing too much effort in voltage regulation.

Current Consumption Summary: The Siemens 6DD2920-0AB1 typically consumes low current, as low as ~200mA in normal operating mode. This allows for efficient use of power, which is very important in large industrial facilities, as energy conservation is a top priority for many factories. This reduces overall energy consumption and reduces the amount of heat released into the environment, ideal for sustainable management.

High-Speed Data Transfer: From a communication perspective, it is driven by high-speed data transfer. Its dedicated interface allows for information transfer rates of up to 12 Mbps. This fast transmission is essential for real-time control systems, as fast data updates are essential for effective decision making.

Operating Temperature Range: Designed for harsh industrial environments, with an operating temperature range of -20°C +60°C, it will perform well and provide good service throughout the year, whether installed in a cryogenic freezer or a high-temperature manufacturing plant.

Product Features

Signal Conditioning and Conversion: The main function of an ADC is to condition and convert different input signals. It receives analog signals from sensors such as temperature or pressure sensors and encodes them into digital format for processing by the control system. The accurate conversion of these signals ensures that the control system obtains precise and reliable data, thereby facilitating effective control actions.

Serves as an excellent communication interface: The Siemens 6DD2920-0AB1 is a very good communication bridge. It has multiple communication ports, such as PROFIBUS and MPI interfaces. Versatility is achieved through a variety of interfaces, enabling it to communicate with numerous Siemens and third-party devices, supporting seamless integration into a diverse industrial automation environment. By providing these interfaces, engineers can remotely observe and operate the connected devices when they are running.

Fault Diagnosis and Monitoring: It provides advanced fault diagnostic capabilities. It constantly self-checks its internal conditions and the signals it processes. It can identify faults in a timely manner and provide comprehensive error messages when any abnormal conditions occur. This is a preventative step that can identify and resolve issues before they are detected by the maintenance team, thereby reducing downtime and production losses.

Programmable Logic Function: The Siemens 6DD2920-0AB1 can be a programmable logic function. It can be used to execute basic control algorithms, or implement more complex operations where signals can be logically processed by a microprocessor before further processing or analysis.

Application Scope

Automotive Manufacturing: It plays a key role in the engine assembly line of an automobile plant. The ECU can track the torque settings for bolt tightening and other engine-related component parameters. It helps maintain high quality standards and consistency during the assembly process, which ultimately benefits the final production of the vehicle.

Food and Beverage Industry: The Siemens 6DD2920-0AB1 helps maintain precise temperature and pressure control in food processing plants. It can interface with sensors in ovens, boilers, and refrigeration units to ensure that food is processed under optimal conditions. This not only improves the final product quality, but also meets strict food safety regulations.

Chemical Processing: It involves complex control systems for chemical reactions in chemical plants. It can manage the flow control of reactants, monitor reaction temperatures, and interface with safety systems. Its stable operation is very important to achieve safe and efficient chemical production processes.
