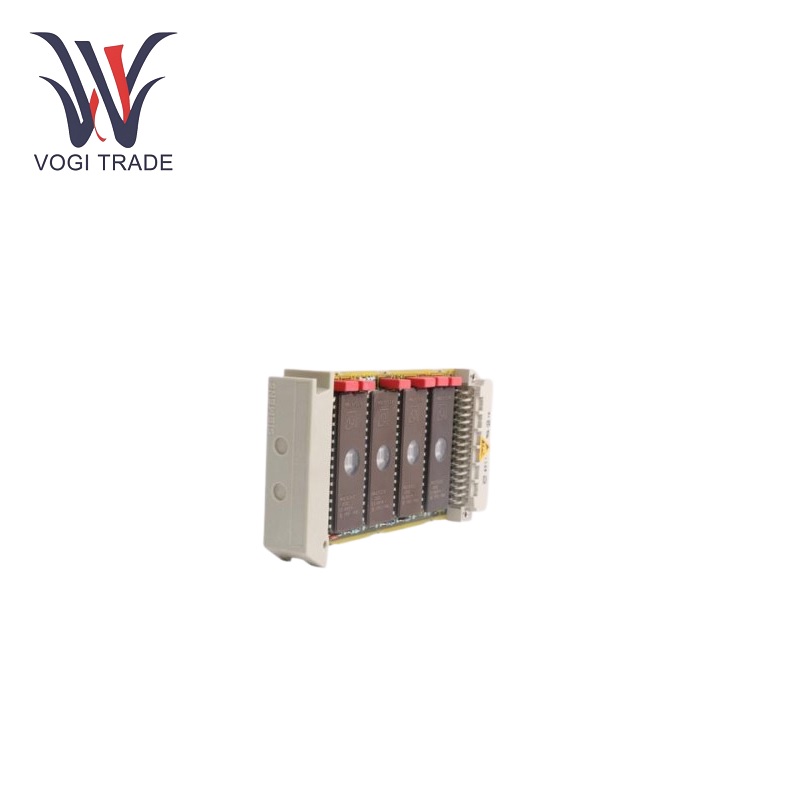

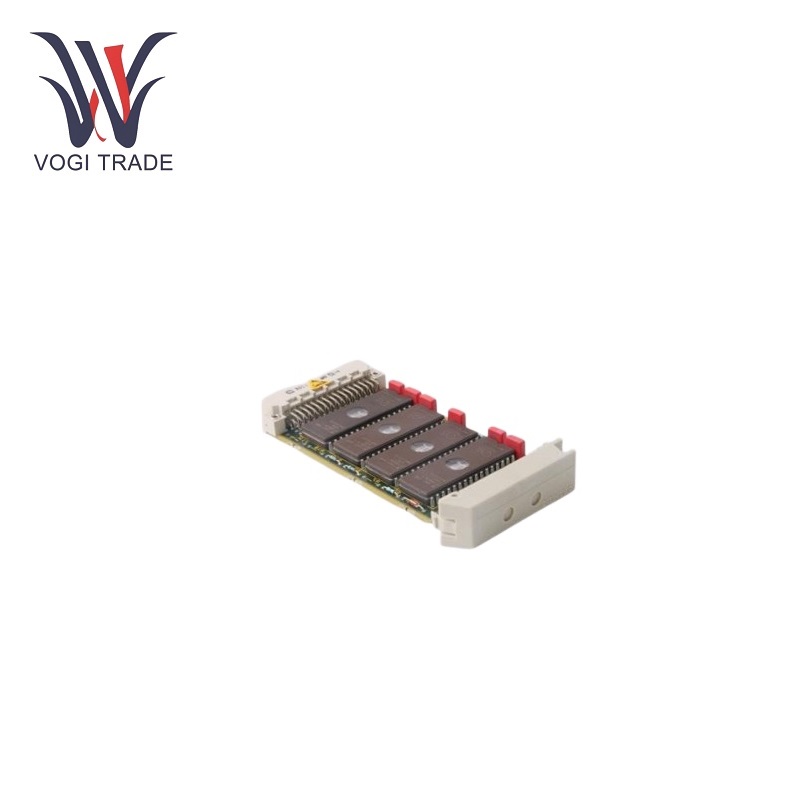

Siemens 6DD1610-0AG1

Operating parameters

Supply voltage specifications: The nominal operating voltage is 24V DC. The operating tolerance is ±5%, so the power input is stable. The voltage requirements are very strict because it interacts with other sensitive components in complex industrial control systems, so voltage fluctuations need to be avoided to damage these components.

Current consumption characteristics: The operating current is usually relatively low, at a few hundred milliamps. Nevertheless, during peak load phases or at startup, the current demand may temporarily surge, but this still falls within the supply capabilities of any normal industrial power supply. They are designed in this way to achieve efficient current consumption, which helps overall energy management and reduces the need for heat dissipation.

Data transfer rate: The Siemens 6DD1610-0AG1 is capable of fast data exchange, with a peak of 1.5 Mbps through its dedicated communication channel. The fast data exchange makes it suitable for real-time control applications, where sensor readings, control signals and status updates are constantly transmitted between various components of the automation system.

Operating temperature range: The operating temperature range of an instrument is usually defined as the temperature range over which the instrument can operate as specified. For example, the instrument can operate in the range of 0°C to 60°C, indicating that it is reliable and stable in this temperature range, which can be considered a practical temperature range for monitoring equipment in the rooms where these devices are located, where most electronic equipment is kept in temperature-controlled indoor control rooms, and in slightly harsher factory floors where seasonal temperature differences are inevitably encountered.

Product Features

Signal Conditioning: The main purpose is to convert various input signals, such as sensor signals such as temperature probes and pressure sensors. It also implements signal conditioning, i.e. it helps to filter out noise and amplify weak signals to maintain the integrity of the data entering the control system.

Communication Interface Enablement: The Siemens 6DD1610-0AG1 is equipped with various communication ports (also optional), with a PROFIBUS DP interface, which is a common standard in industrial automation. This means that not only other Siemens devices can be easily connected, but also third-party devices that support the PROFIBUS standard, so various components can be integrated into a common automation infrastructure.

Fault Detection and Diagnostics: With such functions, it can constantly monitor its own status and the signals provided to it, allowing it to identify hardware faults as well as potential problems with the signals. When an anomaly or internal fault occurs, it immediately detects the error code and issues an alarm. This preventive fault detection enables maintenance teams to quickly correct the problem, thereby reducing system downtime and production losses.

Programmable logic functions: The Siemens 6DD1610-0AG1 offers limited programmable logic functions, allowing engineers to configure its performance to meet the needs of their application. For example, set limits or conditions can be established in response to certain actions.

Application range

Automotive manufacturing: The Siemens 6DD1610-0AG1 can also be used in automotive manufacturing plants to manage control signals and data flows for robotic arms, conveyor belts, and automated assembly stations. It also helps to accurately coordinate the tasks and operations of physical actions, thereby improving productivity and quality control.

Process industries: It is mainly used in chemical and pharmaceutical plants to monitor and control process variables. By interpreting inputs from flow meters, pH sensors, and pressure regulators, it can accurately control chemical reactions and maintain preferred operating conditions.

Power generation and distribution: In power plants, the Siemens 6DD1610-0AG1 helps communicate and control auxiliary equipment. It can be connected to generator control systems, transformer monitoring equipment and switchgear control systems to help ensure reliable performance of power generation and distribution systems.
