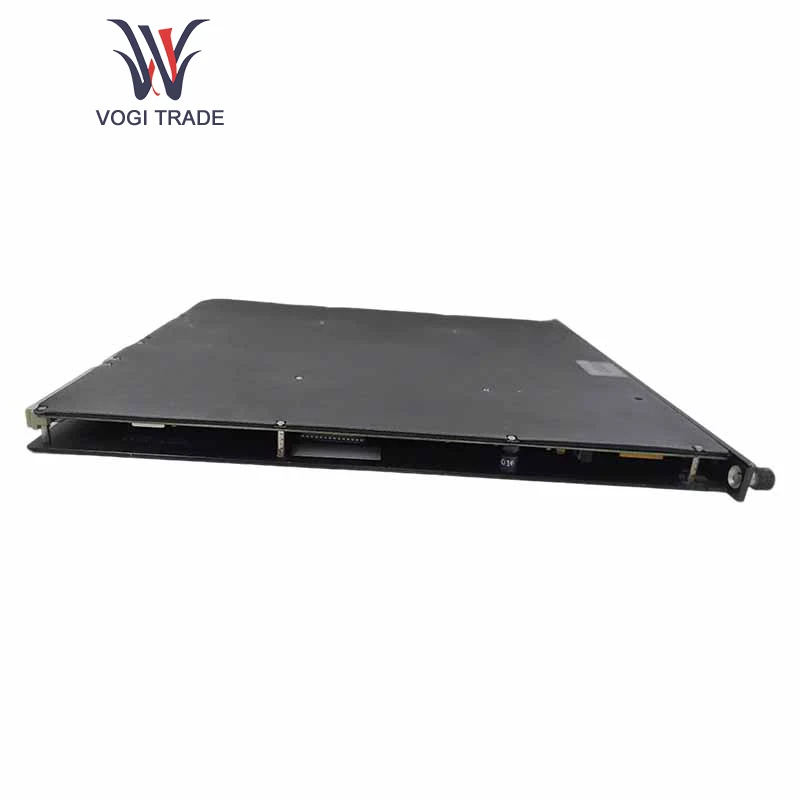

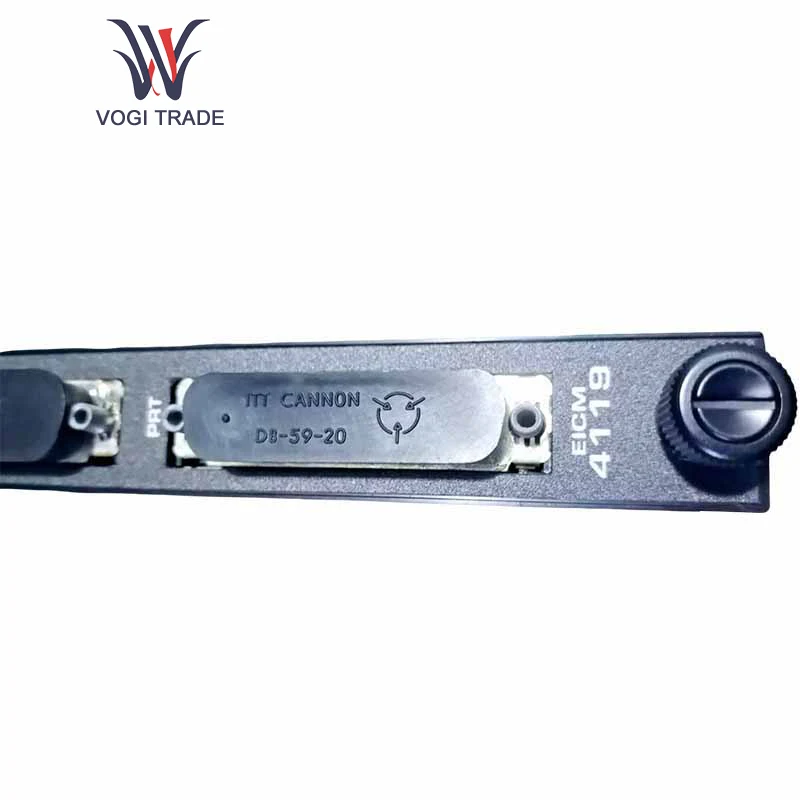

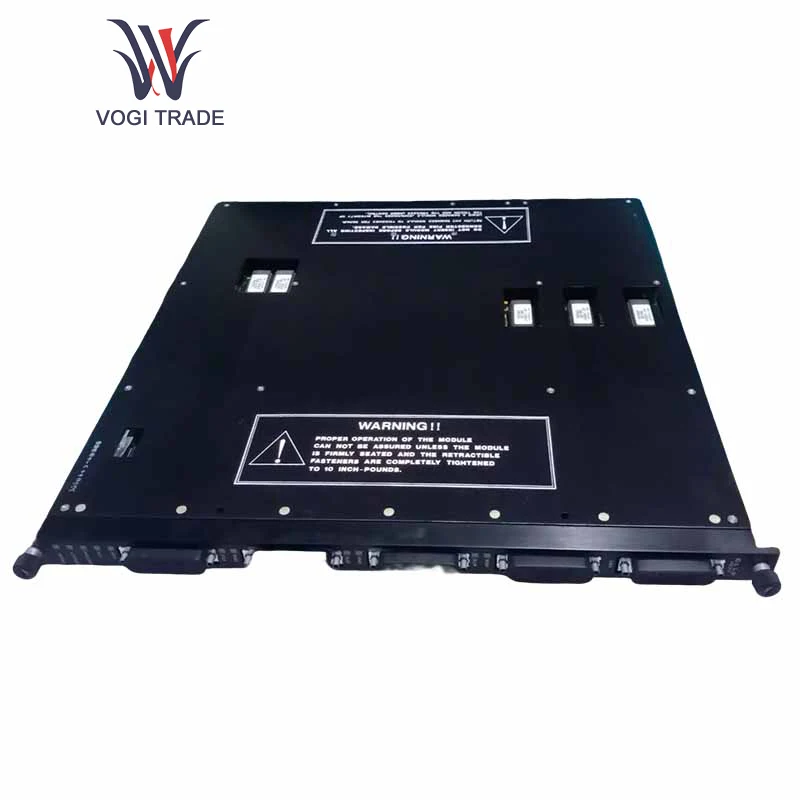

Triconex 4119

Details

Product Description of Triconex 4119：

Triconex 4119 is an analog output module that can ensure excellent performance by virtue of its remarkable characteristics.

Performance Features of Triconex 4119：

High-Precision Output: Its output resolution reaches 12 bits, and within the range of 4 - 20mA, the accuracy is better than 0.25% of FSR (0 - 21.2mA). This ensures the high precision of the output signal and consequently realizes the precise control of industrial processes.

Multiple Output Points: It has 8 output points, which can meet the need to control multiple devices or links simultaneously, thus improving the control efficiency and integration degree of the system.

Reliable Electrical Characteristics: It operates in the mode of DC coupling and common return without isolation points, which enhances its reliability. The output current is set to be 4 - 20mA with a +6% over-range capability. Moreover, over-range protection is provided in its design. Therefore, under the condition of DC working voltage, even when the applied continuous voltage reaches 42.5VDC, it can still maintain stability and reliability.

Fast Fault Switching: The branch fault switching time is less than 10 milliseconds. Even when a fault occurs, it can respond quickly and at least minimize the interference to industrial production, helping the system to keep running.

Technical Parameters of Triconex 4119

1.Working Voltage: The input voltage is approximately 120VAC or 240VAC, the output voltage is 24VDC, and the output current is 10A. It can indeed provide a very stable and reliable power supply for the system.

2.Redundancy Mode: It supports 1 + 1 or N + 1 redundancy modes, which jointly enhance the reliability and fault tolerance of the system. It ensures that when the main power supply fails, the backup power supply can conduct a fail-safe takeover to keep the system running uninterruptedly.

Functional Characteristics of Triconex 4119

1.Real-Time Acquisition and Control: It can collect external signals in real time and conduct precise control over external devices according to the control logic and algorithms in the industrial process.

2.Fault Detection and Recovery: It has a fault detection function and can detect faults in input/output channels in a timely manner. It can quickly issue alarms or automatically take corresponding measures to restore the system as soon as possible, thus ensuring the stable operation of the system and reducing the risks and losses that may be caused by faults.

3.Modular Design: The modular design greatly reduces the burden of installation and maintenance, making them much easier. Users can choose to configure or expand the system according to specific needs, simplifying the complexity of system maintenance.

4.Communication Interface: It is equipped with an interface that is compatible with the Triconex security system for communication, enabling data exchange and communication with other modules. This makes the whole system a fully integrated and collaborative working system, further improving the intelligent level of the system and building a complete production automation system.

Application Fields of Triconex 4119

Triconex 4119 is applied in industries with extremely high requirements, such as petrochemical, power, and manufacturing industries. In the petrochemical field, it can provide precise control and reliable power supply guarantee for complex production processes. In the power field, it ensures the stable operation of power generation, power transmission, and power transformation processes. In the manufacturing field, it can meet the control requirements of various automated production lines, helping enterprises effectively improve production efficiency, reduce operating costs, and thus enhance overall competitiveness.

In conclusion, due to its higher precision, reliability, rich functional characteristics, and diverse application fields compared with similar products, Triconex 4119 has now become an indispensable key component in the industrial automation system, providing powerful support for the efficient, stable, and safe operation of industrial production
