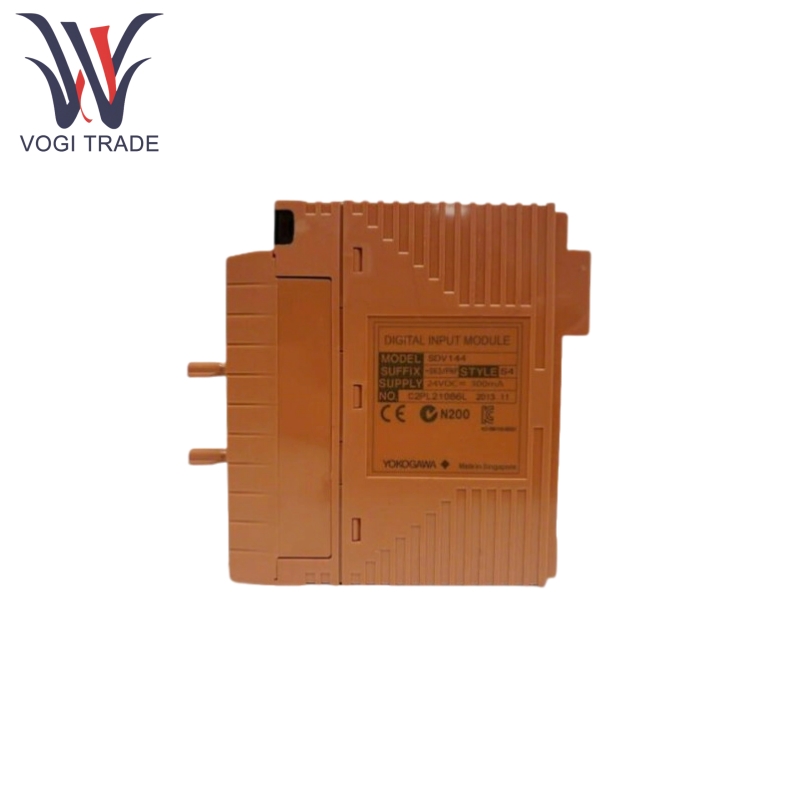

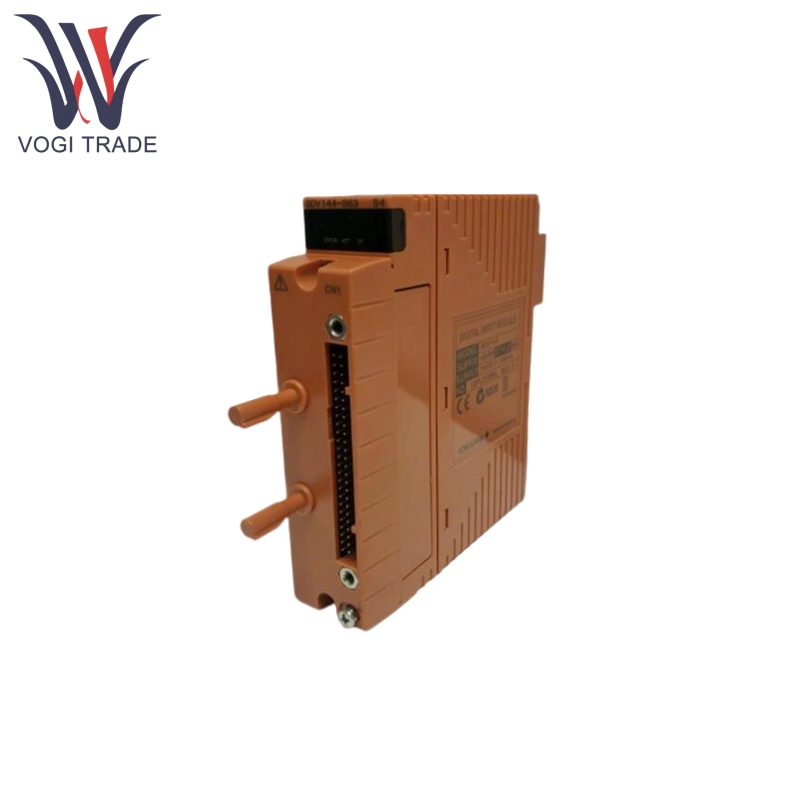

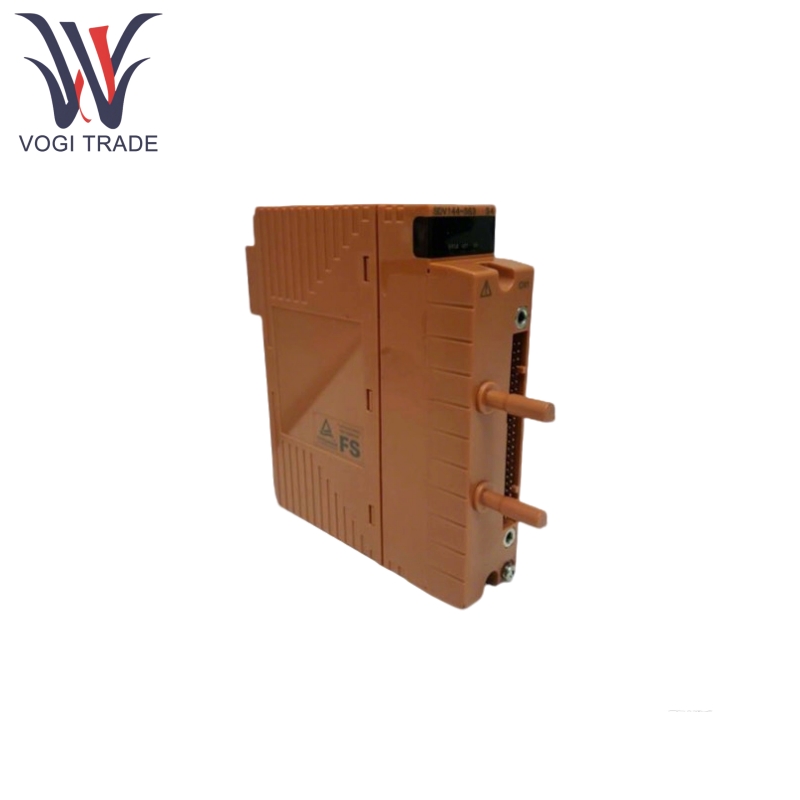

Brand: YOKOGAWA Description: Digital Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen YOKOGAWA SDV144-S63 is mainly used to receive the field voltage-free contact signals and convert them into system-recognizable digital signals for transmission to the safety control unit.
|
Manufacture |
YOKOGAWA |
|
Model Number |
SDV144 |
|
Ordering Number |
SDV144-S63 |
|
Catalog |
FIO |
|
Country Of Origin |
Japan |
|
HS CODE |
9032900090 |
|
Dimension |
14*14*4cm |
|
Weight |
0.6kg |
Product Features
YOKOGAWA SDV144-S63 has 16-channel digital inputs with module-level isolation design to avoid inter-channel signal interference.
YOKOGAWA SDV144-S63 can be configured in dual redundancy mode to enhance system reliability and is suitable for high-security scenarios.
YOKOGAWA SDV144-S63 complies with ISA standard G3 and has an operating temperature range of -20 to 70°C, adapting to high-temperature industrial environments.
YOKOGAWA SDV144-S63 can be equipped with a signal cable interface adapter (suffix code “6”) to support the connection of dedicated signal cables (e.g. AKB331) to simplify field wiring.
YOKOGAWA SDV144-S63 can be optionally coded with “/PRP” option to avoid module mis-insertion through the anti-mis-insertion mechanism of the signal cable (signal cable with “/SDV144” option is required).
YOKOGAWA SDV144-S63 supports field wiring fault detection (with SCB100/SCB110 diagnostic components):
SCB100: for detecting open-circuit faults when the signal is normally “OFF”.
SCB110: for detecting short-circuit faults when the signal is normally “ON”.
Product Using Principle
YOKOGAWA SDV144-S63 can convert the voltage-free contact signals of field equipment into digital signals that can be processed by the safety control unit, and the specific working logic is as follows:
Signal Reception: the contact action of field equipment (ON/OFF) changes the input circuit resistance (ON ≤ 1kΩ, OFF ≥ 100kΩ), the module recognizes the signal state by detecting the resistance change.
Signal Conversion: the resistance change is converted into digital quantity (0/1), which is processed by the internal circuit and then transmitted to the safety control unit through the signal cable.
Redundancy: In a dual redundancy configuration, the two SDV144-S63 modules collect signals synchronously and the safety control unit compares the two signals to ensure that no data is lost in the event of a single module failure.
Fault Diagnosis: If it is necessary to detect open or short circuit of wiring, it is necessary to connect SCB100 (detecting open circuit when normal OFF) or SCB110 (detecting short circuit when normal ON) in series between the field equipment and the module, and the diagnostic results are uploaded together with the signal.
Product Parameter
The following is YOKOGAWA SDV144-S63 detail parameter
|
Parameter Category |
Specific Specifications |
|
Number of Input Channels |
16 channels (module-level isolation) |
|
Input Signal Type |
No-voltage contact signal (resistance ≤ 1 kΩ in ON state, resistance ≥ 100 kΩ in OFF state) |
|
Input Current |
6 mA ± 20% (with external 24 V DC power supply, at 0 Ω input) |
|
Contact Rating |
24 V DC (+20%/-10%), current ≥ 10 mA |
|
External Power Supply Requirement |
24 V DC (+20%/-10%), current capacity 200 mA |
|
Instantaneous Maximum Input Voltage |
30.0 V DC |
|
Input Response Time |
Maximum 40 ms |
|
Withstand Voltage |
2 kV AC between input signal and system for 1 minute, 16 input lines collectively connected |
|
Current Consumption |
Maximum 290 mA (5 V DC) Maximum 140 mA (24 V DC) |
|
External Connection |
Dedicated signal cable (AKB331), signal cable interface adapter |
