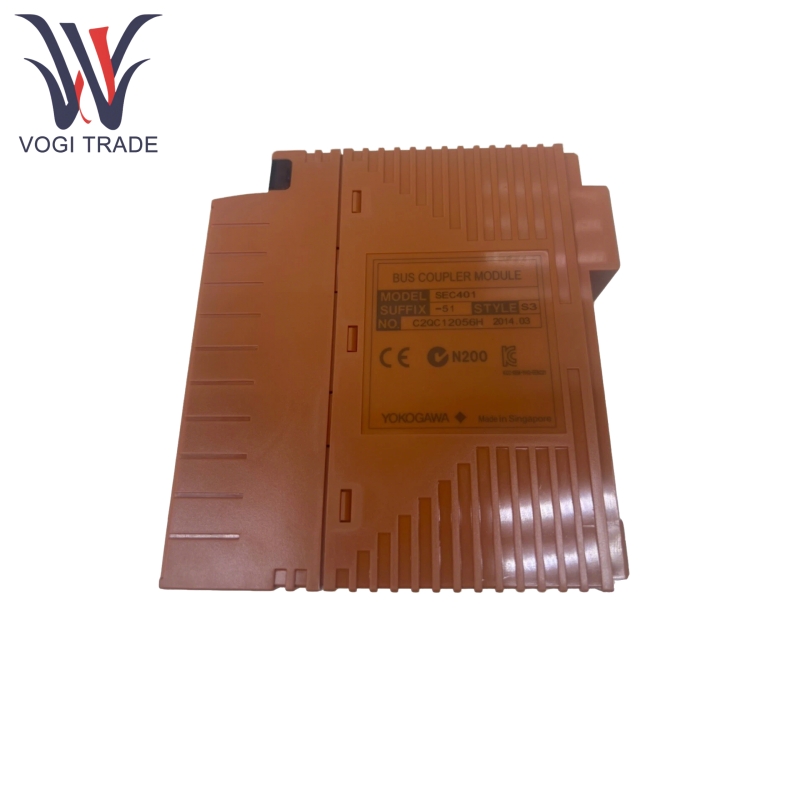

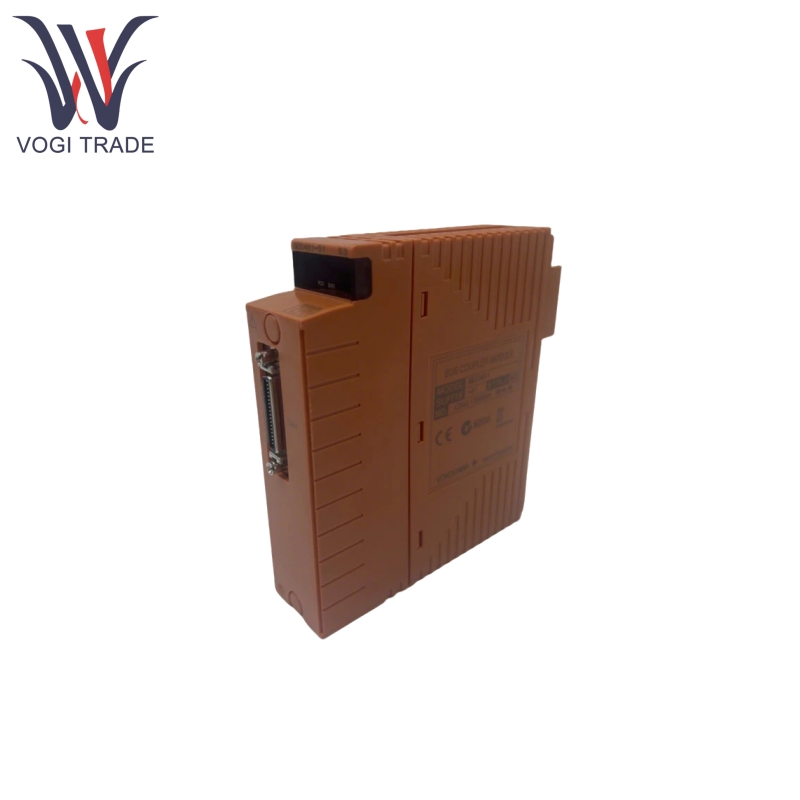

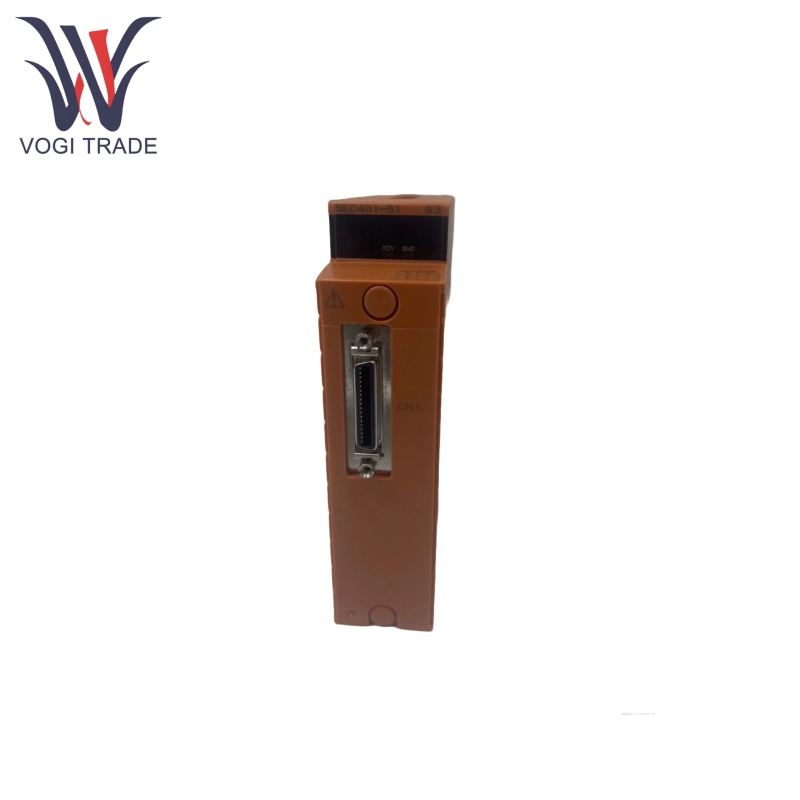

Brand: YOKOGAWA Description: ESB Bus Coupler Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen YOKOGAWA SEC401-51 main function is to realize the communication connection between the safety control unit and the safety node unit, and to support the reliable transmission of data and node expansion in the safety instrumentation system.
|
Manufacture |
YOKOGAWA |
|
Model Number |
SEC401 |
|
Ordering Number |
SEC401-51 |
|
Catalog |
- |
|
Country Of Origin |
Japan |
|
HS CODE |
8543709990 |
|
Dimension |
14*14*4cm |
|
Weight |
0.4kg |
Product Features
YOKOGAWA SEC401-51 is responsible for data flow forwarding and protocol conversion between the safety control unit and the safety node unit.
YOKOGAWA SEC401-51 can connect up to 9 units (including Safety Node Unit SNB10D and Optical Repeater Module SNT4XX, e.g. SNT401, SNT411, SNT421) to support I/O channel expansion of the safety instrumented system.
YOKOGAWA SEC401-51 can be fixedly mounted in slots 7 and 8 of the safety control units, ensuring compatibility with the system and structural stability.
YOKOGAWA SEC401-51 can differentiate the explosion-proof characteristics by suffix code (-E with explosion-proof function, -5 without explosion-proof function) and supports ISA standard G3 (suffix code with “1”), adapting to scenarios with different safety levels.
Product Using Principle
YOKOGAWA SEC401-51 can receive the control commands from the safety control unit and forward them to the connected safety node unit; meanwhile, it will transmit the field data collected by the node unit back to the safety control unit, with a transmission speed of 128 Mbps to ensure real-time performance.
YOKOGAWA SEC401-51 carries out address allocation and communication scheduling for the nine connected units to avoid data conflicts and support distributed I/O expansion.
Connecting the node units through the ESB bus cable, the maximum transmission distance is 10m, which is suitable for high-density node layout within a short distance; if you need to extend the distance, it can be combined with the optical repeater module SNT4XX.
Product Applications
YOKOGAWA SEC401-51 can be used in safety instrumented systems (SIS) in the petroleum, chemical, natural gas and other process industries for connecting safety control units to field safety nodes.
YOKOGAWA SEC401-51 can be used in hazardous environments (e.g. production halls with flammable and explosive substances) that are explosion-proof or comply with ISA standard G3.
YOKOGAWA SEC401-51 can be used in safety control stations with extended I/O channels for large-scale data acquisition and control by connecting several SNB10D node units.
