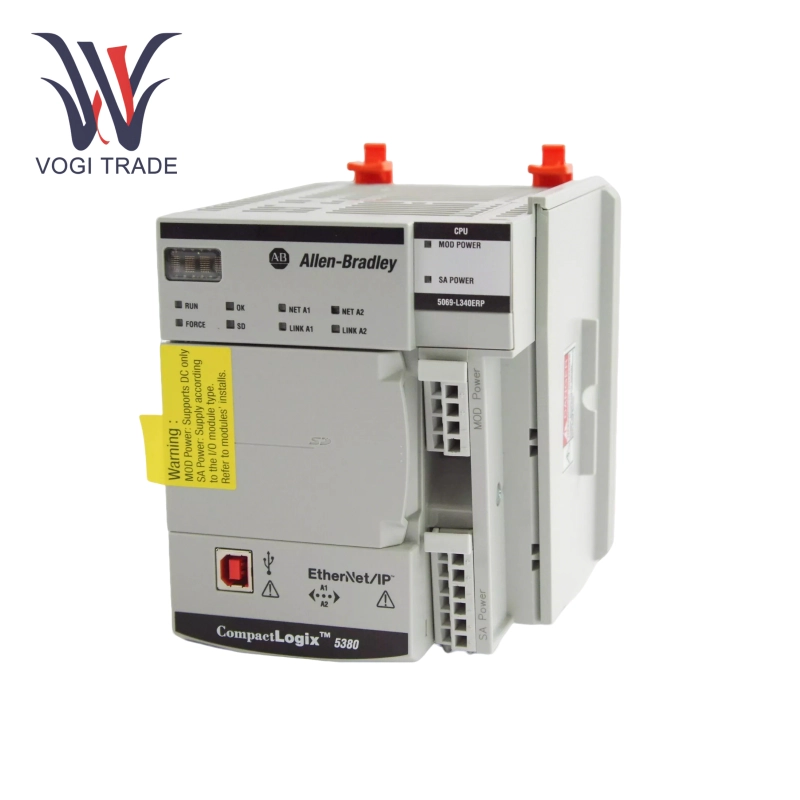

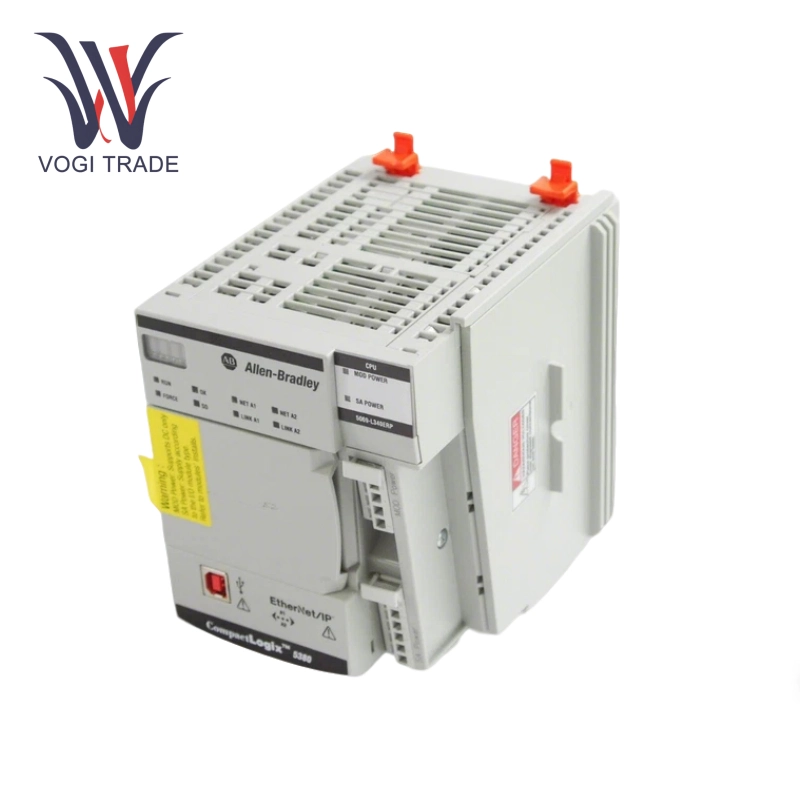

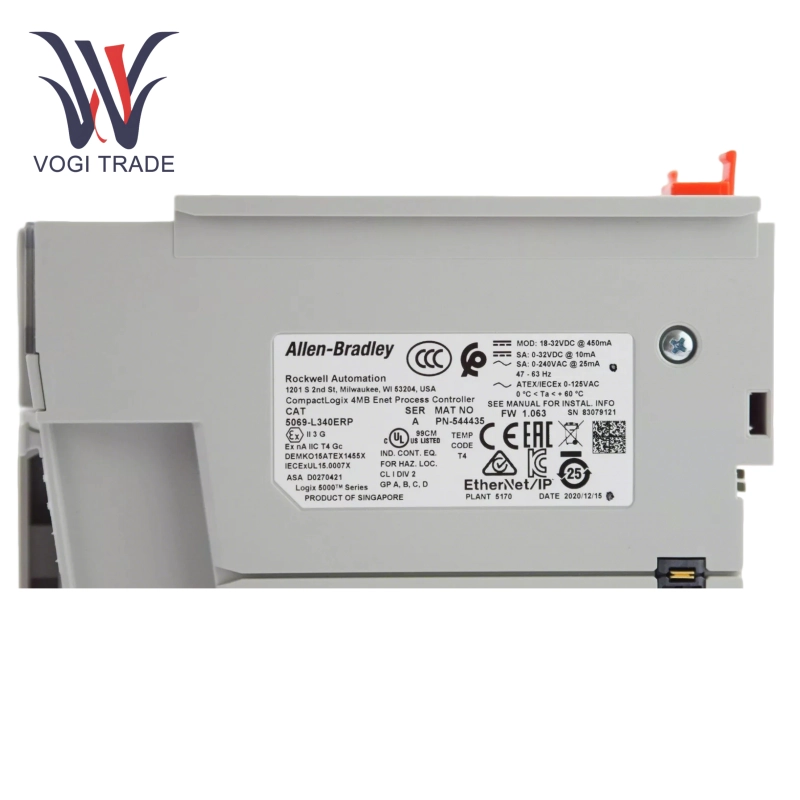

Allen Bradley 5069-L340ERP

Technical parameters

Processor: Dual-core 200MHz RISC ASIC architecture.

User memory: 4 MB (standard logic program).

Safety memory: 2 MB (independent isolation, meeting SIL2/PLd safety level)

Local expansion I/O capacity: Supports 31 I/O modules.

Distributed expansion I/O capacity: Maximum 128,000 digital I/O points + 4,000 analog I/O points.

Operating temperature: 0~60℃, storage temperature: -40~85℃;

Protection level: IP30, vibration resistance (2g@10-500Hz), shock resistance (30g).

Functional features

Process optimization capability: Allen Bradley 5069-L340ERP has a built-in PlantPAx process library, which provides preset standardized function blocks (such as flow accumulation, valve control), shortens the development cycle, and supports Time synchronization protocol (IEEE 1588) ensures the coordination accuracy of multiple devices (such as synchronization between reactor and pump valve).

Dual IP mode: Allen Bradley 5069-L340ERP supports isolation of control network and upper management network to enhance security.

CIP security protocol: Data encryption transmission to prevent unauthorized access.

Diagnosis and maintenance: SD card automatically records fault logs and supports offline program backup and recovery (standard 1GB SD card, expandable to 2GB).

Compatible supporting products

Redundancy module: 1756-RM2XT (hot standby redundant switching module);

Ethernet module: 5069-EN2TR (dual-port Gigabit, support DLR ring network.

I/O expansion module

Analog input module: 5069-IF8 (8-channel ±10V input, 16-bit resolution);

Safety output module: 5069-OB16SE (16-point SIL2 certified output).

Software ecosystem

Programming tool: Studio 5000 Logix Designer (V33+ Support process control library);

Monitoring system: FactoryTalk View SE (HMI development), FactoryTalk Batch (batch management)
