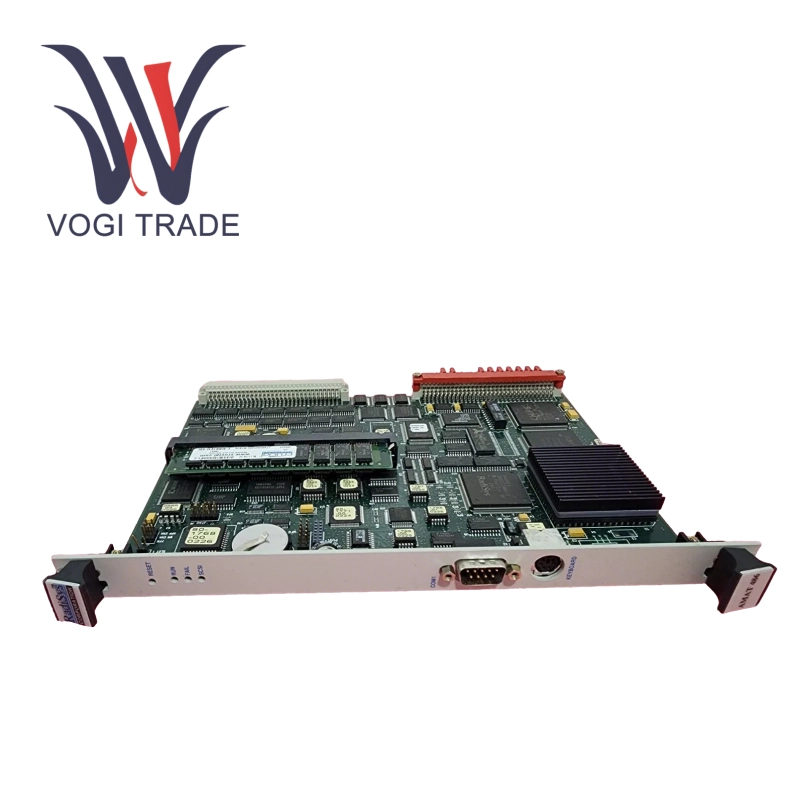

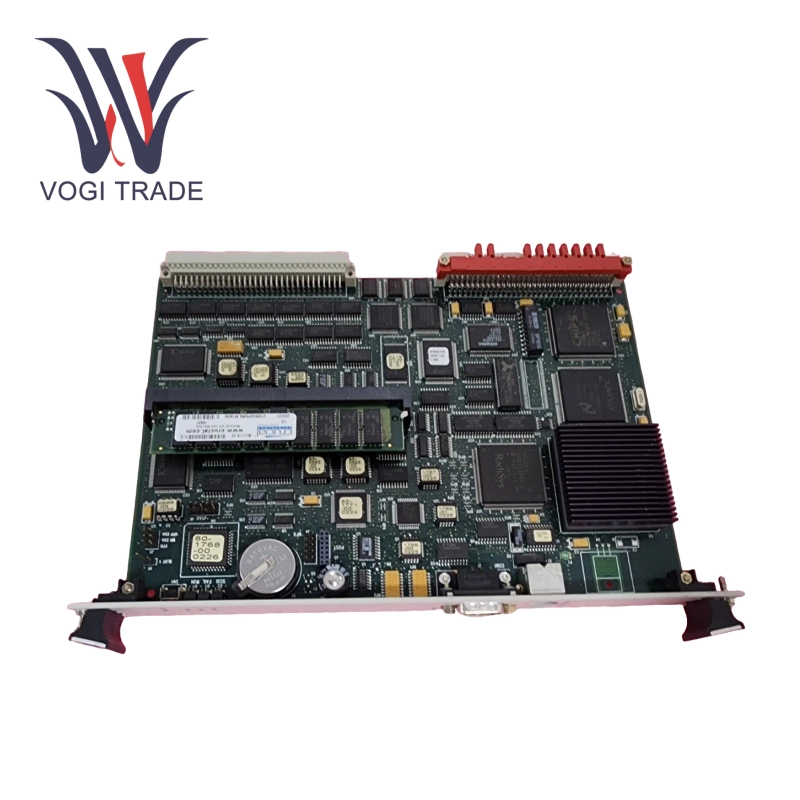

AMAT 0190-00318

Technical parameters

Signal type: analog VGA video output

Electrical characteristics: working voltage 24VDC ±10%, power consumption ≤15W.

Interface specifications: standard DB-15 interface, shielded twisted pair connection.

Environmental adaptability: working temperature 0-50℃, humidity ≤90% non-condensing.

Compatible protocol: support DeviceNet industrial bus communication

Functional features

1. High reliability signal transmission: AMAT 0190-00318 adopts anti-electromagnetic interference design to ensure that the video signal is not distorted in a strong electromagnetic environment, and to ensure the real-time and accuracy of process monitoring data.

2. Plug-and-play integration: 0190-00318 supports quick docking with AMAT equipment control systems (such as SC-2M I/O board 1952992) without the need for additional driver configuration, significantly shortening the equipment debugging cycle

3. Multi-scenario adaptability: AMAT 0190-00318 can flexibly adapt to a variety of industrial display terminals, including touch screen consoles, remote monitoring terminals and process flow diagram systems to meet the visualization needs of complex production lines.

4. Long-term operation guarantee: Through industrial-grade component selection and redundant circuit design, it supports 7×24 hours of continuous operation, with a mean time between failures (MTBF) ≥ 100,000 hours

Application scenarios

Semiconductor manufacturing equipment: Real-time status monitoring interface for process chambers such as etching machines (P5000 series) and chemical vapor deposition (CVD) equipment

Industrial automation production line: Local control terminals integrated in equipment such as wafer handling robots and pre-aligners provide a human-machine interactive operation interface

High cleanliness environment: Applicable to equipment video systems in Class 1-1000 clean rooms, such as display units for photolithography machines
