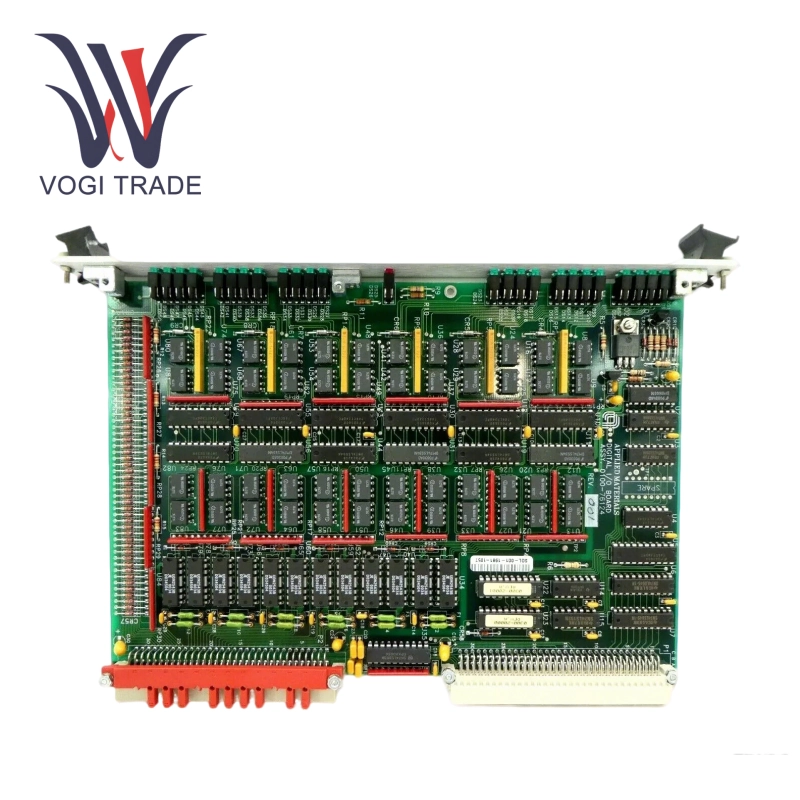

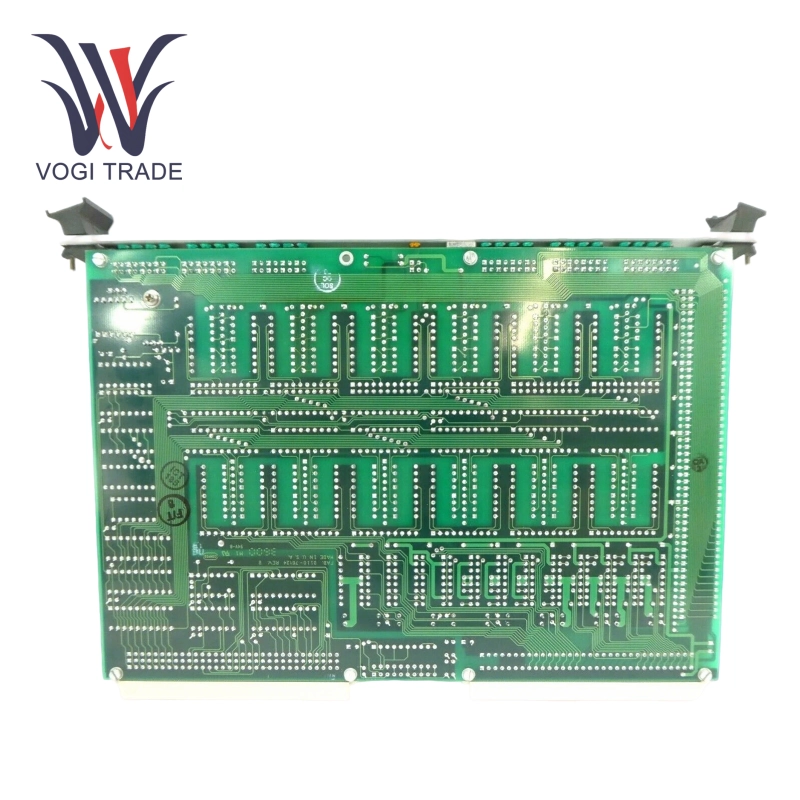

Brand: AMAT Description: Digital I/O VME PCB Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty:5 Payment Term: T/T Shipping Port: Shenzhen AMAT 0100-76124 is a Digital I/O VME PCB Card that integrates high-temperature RFID reading and writing technology to achieve real-time tracking and data collection of vehicles or wafers in the production process.
|
Manufacture |
AMAT |
|
Model Number |
0100-76124 |
|
Country Of Origin |
USA |
|
HS CODE |
85049020 |
|
Dimension |
25*15*3cm |
|
Packing Dimension |
27*17*5cm |
|
Weight |
1kg |
Product parameters
Operating voltage: 24V DC ±10%
Communication interface: dual-channel Ethernet, RS-485
Power consumption: ≤15W (static) / ≤35W (peak)
Signal sampling rate: 100Hz
Input range: -10V to +10V analog
Environmental adaptability
Operating temperature: -10°C to +60°C
Storage temperature: -40°C to +85°C
Protection level: IP54
Anti-interference certification: in line with IEC 61000 industrial electromagnetic compatibility standard
RFID performance
Supported frequency: 860-960MHz UHF
Tag capacity: single processing ≥200 anti-metal tags
Data storage: onboard 128MB flash memory, support VIN code, order number and other field storage
Functional features
1. Industrial environmental tolerance
AMAT 0100-76124 adopts ceramic substrate and gold-plated contact design, which can operate stably for a long time in the high temperature of welding workshop and the corrosive environment of painting workshop, ensuring zero loss of RFID tag data.
2.Multi-dimensional data fusion management
Through the embedded protocol parsing engine, AMAT 0100-76124 synchronously integrates 12 types of data fields such as production line code, product sequence number, VIN information, etc., and transmits them back to the MES system in real time to realize full-link visualization of production status.
3.Modular expansion compatibility
0100-76124 provides a standardized VME bus interface, which is directly compatible with semiconductor equipment platforms such as AMAT P5000 and Endura 5500, and supports OPC UA protocol access of third-party PLCs.
4. Maintenance-friendly design
AMAT 0100-76124 supports hot-swap replacement and remote OTA firmware upgrades. Combined with the onboard self-diagnosis LED indicator, it greatly reduces production line downtime
Application scenarios
Automobile welding line: Install AMAT 0100-76124 compatible tags on the tooling board, collect welding process status through the workshop reader, and verify the matching of the body VIN code and production plan in real time.
Semiconductor wafer transmission: Integrated in the Endura 5500 equipment robot arm, monitor the flow path of the wafer carrier in the etching/CVD chamber to prevent process misordering.
