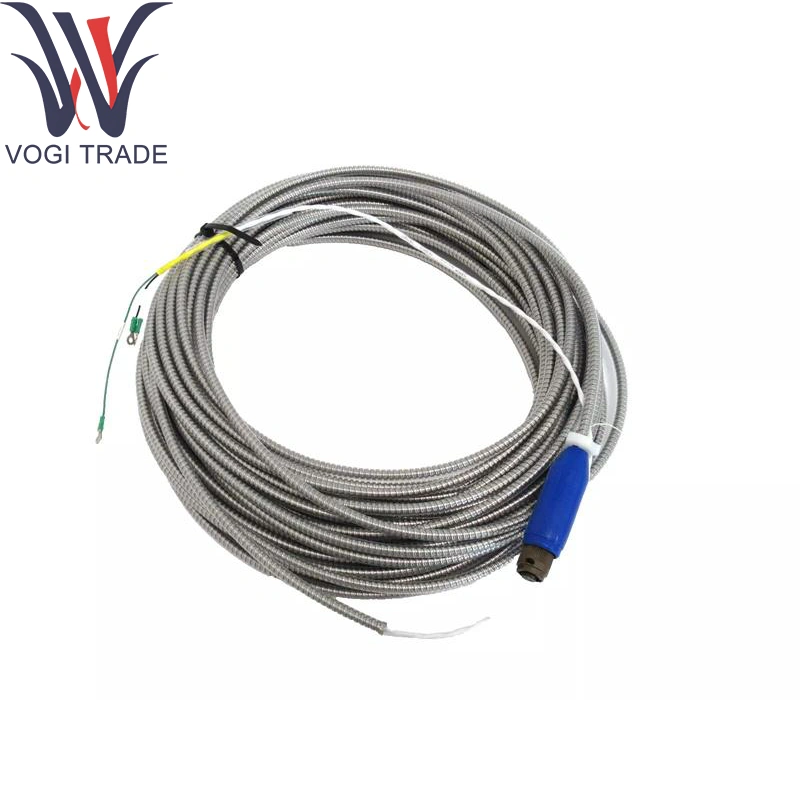

Brand: Bently Nevada Description: 106765-13 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 9 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 106765-13 Used to link Bently Nevada 3500 Series rack modules—such as connecting system interface, relay, or analog-output cards to auxiliary terminal blocks or external bulkhead connectors.
|
Manufacture |
Bently Nevada |
|
Model Number |
106765-13 |
|
Ordering Number |
106765-13 |
|
Catalog |
330525-00 |
|
Description |
Interconnect Cable |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
13 meters |
|
Weight |
0.5 kg |
Technical Parameters
Conductor: 28 AWG tinned-copper, ribbon-cable format (50 conductors) of Bently Nevada 106765-13
Impedance: ~ 60 Ω differential pair (twisted-pair sections within ribbon)
Voltage Rating: 125 V DC maximum
Current Rating: 1 A per conductor (typically low-power digital signals)
Temperature Rating: –20 °C to +70 °C (cable jacket); connectors rated to +85 °C in Bently Nevada 106765-13
Shielding: Optional overall foil-shielded variant (suffix “-SH”) for EMI-sensitive installations
Compliance: UL 1571 for ribbon cable; RoHS-compliant
Product function
Routes module backplane signals from the P2 header of a 3500 Series card to an external terminal via Bently Nevada 106765-13, enabling rapid module swaps without disturbing external wiring. Supports organized signal breakout for integration with DCS, PLC, or auxiliary hardware.
Application Areas
Control-Panel Wiring: Internal module-to-bulkhead connections using Bently Nevada 106765-13 in turbine-control cabinets.
Field-Junction Assemblies: Linking rack modules to field-wiring terminal blocks.
Test & Calibration Benches: Quick-disconnect harness for bench-testing 3500 modules.
Retrofit Projects: Adding new modules with standardized interconnects like Bently Nevada 106765-13.
