Brand: VIBRO-METER Description: Piezoelectric Accelerometer Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 30 Payment Term: T/T Shipping Port: Shenzhen CA202 144-202-000-203 piezoelectric accelerometer: Intrinsically safe sensor with military-grade protection, designed for high-precision vibration monitoring in high-risk explosive environments (Zone 0) and harsh working conditions of -55℃~260℃.
|
Manufacture |
VIBRO-METER |
|
Model Number |
CA202 |
|
Ordering Number |
144-202-000-203 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9031809090 |
|
Dimension |
10*10*8CM |
|
Packing Dimension |
15*15*10CM |
|
Weight |
0.5kg |
Professional Industrial Vibration Monitoring Solution
Made by Meggitt’s vibro-meter brand, designed for harsh industrial environments。
Core Advantages
VIBRO-METER CA202 144-202-000-203 Piezoelectric Accelerometer has excellent sensitivity up to -100 pC/g, a wide dynamic measurement range (0.01–500 g) and an excellent wide frequency response range (0.5–6000 Hz, accuracy ±5%).
VIBRO-METER CA202 144-202-000-203 Piezoelectric Accelerometer has a military-grade protection design with a fully sealed austenitic stainless steel housing (equivalent to IP68 protection level), which can withstand extreme environments and can work continuously at high temperatures from -55℃ to 260℃ (sensor body), and provides 100% moisture, oil and salt spray corrosion resistance, ensuring stable operation of the equipment under harsh conditions.
Key Designs
VIBRO-METER CA202 144-202-000-203 Piezoelectric Accelerometer adopts a differential output structure design composed of symmetrical shear piezoelectric crystals, and maintains electrical insulation inside, achieving excellent lateral sensitivity (≤±2%) and linearity (±1%).

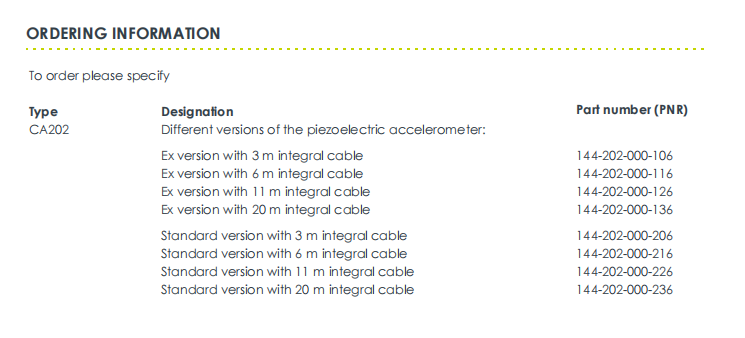

VIBRO-METER CA202 144-202-000-203 Piezoelectric Accelerometer integrates a stainless steel armored cable (optional 3m/6m/11m/20m length) and combines it with the sensor body through laser sealing welding technology, completely eliminating the risk of leakage.
VIBRO-METER CA202 144-202-000-203 Piezoelectric Accelerometer is extremely easy to install, through the standard M6 mounting hole, the recommended torque is 15N·m, and no additional insulation treatment is required, simplifying field applications. In addition, the products have passed major global explosion-proof certifications (such as ATEX, IECEx, KGS) including Ex ia (intrinsically safe) and Ex nA (non-sparking) versions, suitable for use in Zone 0/1/2 hazardous areas.
11m/20m cable can be customized for special needs
