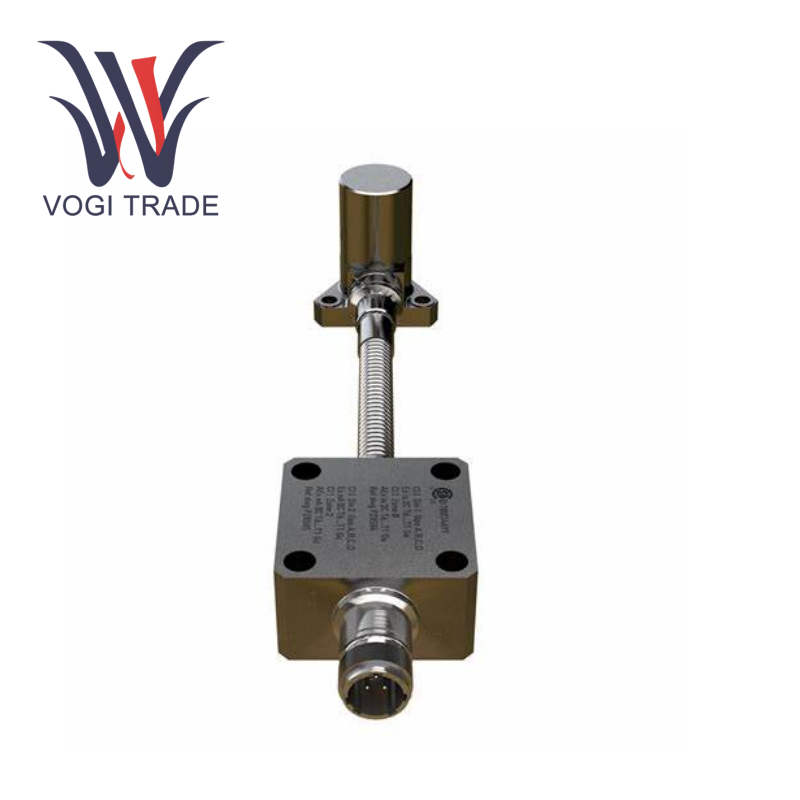

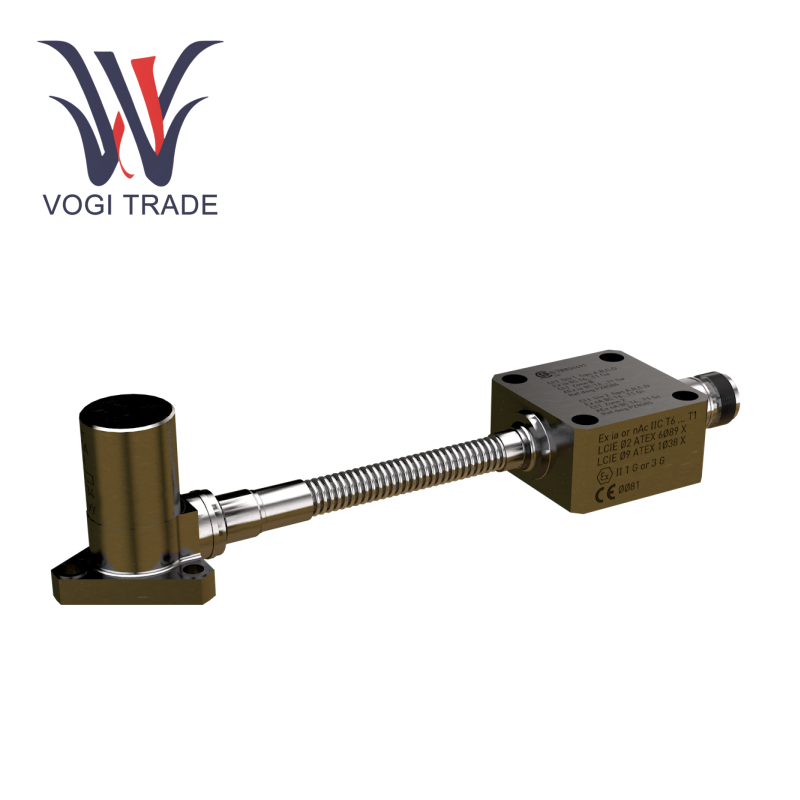

Brand: Vibro-Meter Description:Piezoelectric Accelerometer Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: ShenZhen CE134 444-134-000-145 is a piezoelectric accelerometer that uses built-in charge-to-current conversion technology, does not require an external amplifier, and directly outputs an interference-resistant current signal.
|
Manufacture |
Vibro-Meter |
|
Model Number |
CE134 |
|
Ordering Number |
444-134-000-145 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
90318090 |
|
Dimension |
Ø18 mm × 35 mm (sensor head) Electronic module: 45 mm × 32 mm × 25 mm |
|
Packing Dimension |
180 mm × 120 mm × 80 mm |
|
Weight |
0.4 kg |
Technical parameters
Sensitivity: 5μA/g ±5% (@120 Hz standard calibration)
Frequency response (HF version): 5 Hz~10 kHz (-3dB@5Hz, ±5%@10-5000Hz, ±10%@5000-10000Hz)
Dynamic range: 0.001~400 g (random vibration peak), instantaneous overload 1000 g
Temperature tolerance: Sensor head: -55~350℃ (A zone)
Electronic module: -40~125℃ continuous operation (C zone)
Signal output: 2-wire current modulation (15-28V DC power supply, standby current 5-8mA)
Mechanical protection: INCONEL® alloy sensor head + 316 stainless steel armored hose, resistant to 2000g impact
Core technical features
1. High-frequency precision sensing
CE134 444-134-000-145 adopting ceramic compression sensing core to achieve 5Hz~10kHz ultra-wide frequency response (-3dB@5Hz, ±5% accuracy covering 10-5000Hz)
2. Extreme environment endurance
The sensor head withstands -55~350℃ extreme temperature (A zone), and CE134 444-134-000-145 supports -40~125℃ continuous operation (C zone)
INCONEL® alloy sensor head + 316 stainless steel armored hose, 2000g mechanical shock certification, 100% moisture-proof and salt spray corrosion-proof
3. Intelligent signal transmission
2-wire current modulation output (15-28V DC power supply), **＞100m long-distance lossless transmission**
CE134 444-134-000-145 built-in temperature zoning isolation technology to avoid the risk of electronic component failure in high temperature areas
Revolutionary structural design
1. Trinity sealed fortress
The sensor head, armored hose (135g/m line weight), and electronic module are laser sealed and welded to form an absolutely sealed body, completely blocking lubricating oil, high-pressure steam, coolant and chemical pollutants, and the protection performance exceeds the IP68 standard.
2. Connector-free architecture
The external connector design in the high-temperature zone is cancelled, and the signal is directly connected to the electronic module (temperature zone C) through the overall shielded cable, eliminating the signal attenuation problem caused by interface aging in a 350°C environment.
Core application scenarios
◼ Gas turbine blade flutter monitoring (＞5kHz high-frequency acquisition)
◼ Centrifugal compressor bearing failure warning
◼ Offshore platform turbine generator health diagnosis
