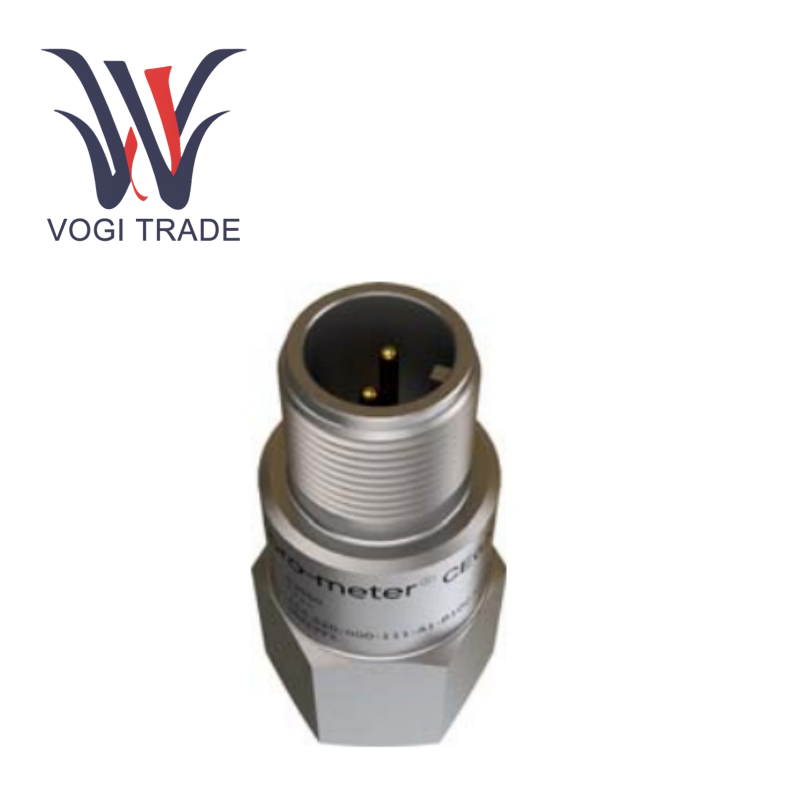

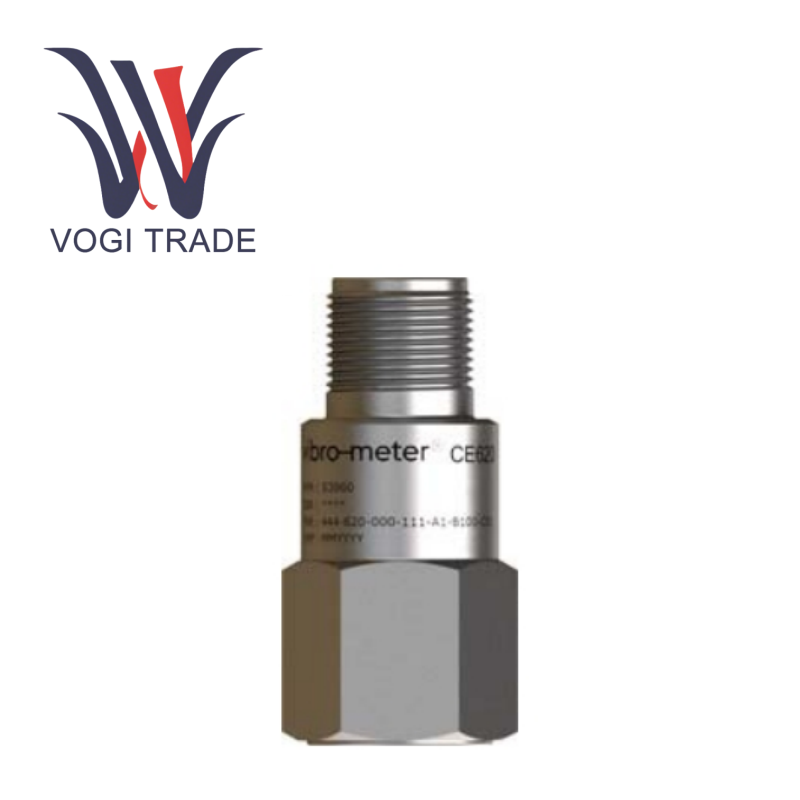

CE620 444-620-000-011-A2-B100

Key Parameters:

Sensitivity: 100 mV/g ±5%

Explosion-proof rating: Ex ia IIC T4 Ga / Ex ia IIIC T135°C Da (ATEX & IECEx certified for Zone 0, 1, 2)

Frequency response (±3 dB): 0.5 Hz to 14000 Hz

Operating temperature range: -55°C to 120°C

Protection rating: IP68

Power supply requirements: 22 - 28 VDC constant current source, 2 - 10 mA (typical 4 mA)

Dynamic range: ±80 g (peak)

Housing material: Stainless steel (AISI 316L)

Output interface: MIL-C/DTL-5015 standard 2-pin connector (cable assembly required)

Features and Benefits:

The core advantage of CE620 444-620-000-011-A2-B100 lies in its excellent adaptability and safety in industrial environments.

The intrinsically safe design of CE620 444-620-000-011-A2-B100 is a key pass for entering hazardous area monitoring. The excellent broadband response characteristics enable it to accurately capture a wide range of vibration signals from very low frequency to high frequency. CE620 444-620-000-011-A2-B100 has a sturdy stainless steel housing, with IP68 protection, giving it the ability to work for a long time in harsh working conditions. The built-in electronic components of 444-620-000-011-A2-B100 adopt an isolated shielding design, which significantly suppresses noise and improves the bias voltage stability to ensure measurement accuracy.

The sensor body of this CE620 444-620-000-011-A2-B100 piezoelectric accelerometer (with integrated electronics) provides a high degree of system configuration flexibility. Users can choose the most suitable recommended cable assembly (such as EC318, EC319, EC622, EC632, etc.) for connection according to specific application scenarios and wiring requirements. It is a reliable cornerstone for realizing key industrial equipment status monitoring and protection.
