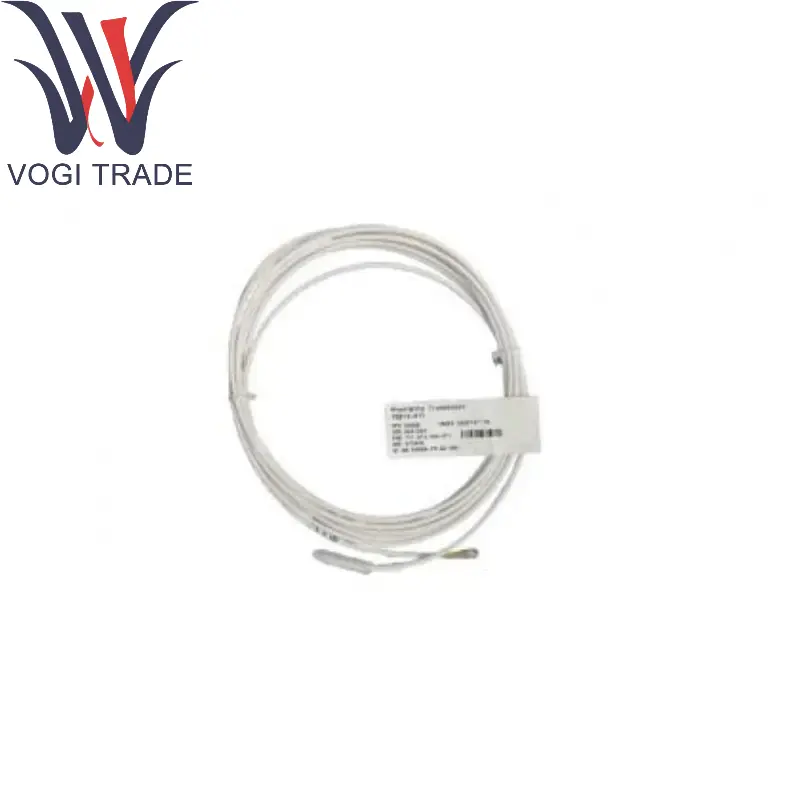

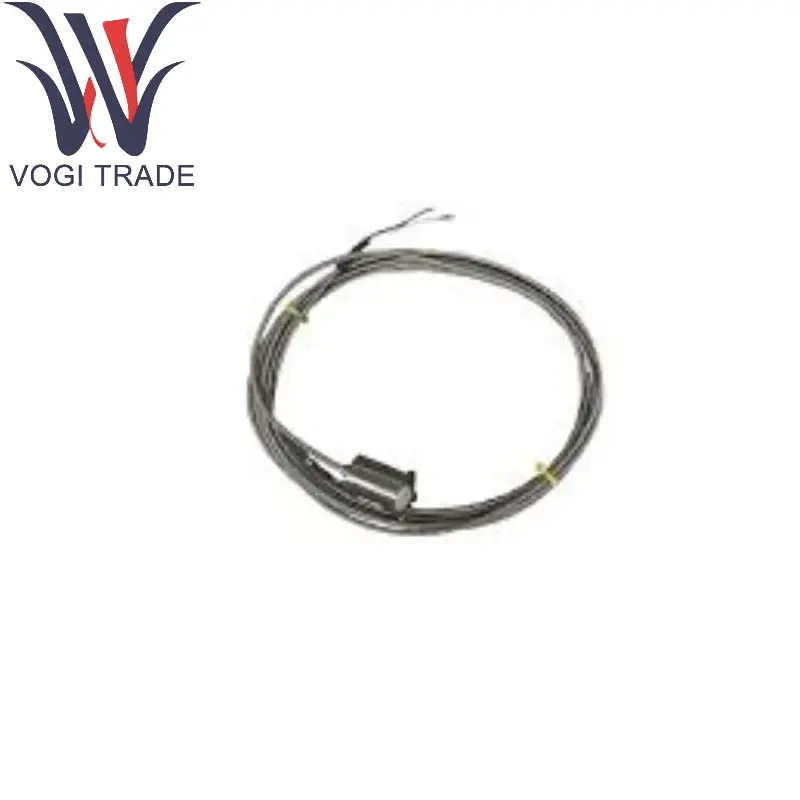

Brand: Vibro-Meter Description: Cable assemblies Condition: New Warranty: 1 year Inventory Qty: 1 Payment term: T/T Shipping Port: ShenZhen Vibro-Meter CI185 VMD185-020-AT-CA-F is for PLC interface Output in Velocity units as 4...20 mA signal. Loop powered, with armored cable.
|
Manufacture |
Vibro-Meter |
|
Model Number |
CI185 |
|
Ordering Number |
VMD185-020-AT-CA-F |
|
Catalog |
NIL |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9014800010 |
|
Dimension |
5cm×8cm×3.5cm |
|
Packing Dimension |
7cm×6cm×5.5cm |
|
Weight |
0.15kg |
TECHNICAL DATA:
Output Current: 4-20 mA DC proportional to RMS velocity (mm/s)
Frequency Response: 2 Hz to 1 kHz ±10 %
Dynamic Range: 50 g peak
Mounted Resonance: 5 kHz min
Isolation: Base isolated
Operating Temp Range: -25 to 90 ºC
Temperature Sensitivity: 0.08 %/ºC
Transverse Sensitivity: Less than 5 %
Supply Voltage: 12-32 Volts DC (4-20 mA) Loop powered
Standard Cable length: 5 meters armoured PTFE
Maximum Cable length: 1000 meter, for IS version see ATX009
Mating Connector: 2 pin MS for CT connection
Case Material: Stainless steel
Weight: 150 gms (nominal)
Related companion products
Sensors:
Accelerometers.
Velocity sensors.
Monitoring systems:
Vibro-Meter CI185 VMD185-020-AT-CA-F integrated with VM600 series for large machinery protection systems.
Vibro-Meter CI185 VMD185-020-AT-CA-F connected to PLC/DCS.
Accessories:
Cables.
Mounting brackets.
Applications
Energy: Vibro-Meter CI185 VMD185-020-AT-CA-F gas turbines, steam turbines, wind turbines.
Industry: compressors, pumps, motors, gearboxes.
Transportation: Vibro-Meter CI185 VMD 185-020-AT-CA-F marine engines, railway traction motors.
Oil & Gas: pipeline compressors, offshore platform equipment.
For more CI185 VMD 185-020-AT-CA-F information, please click on the product datasheet below.
