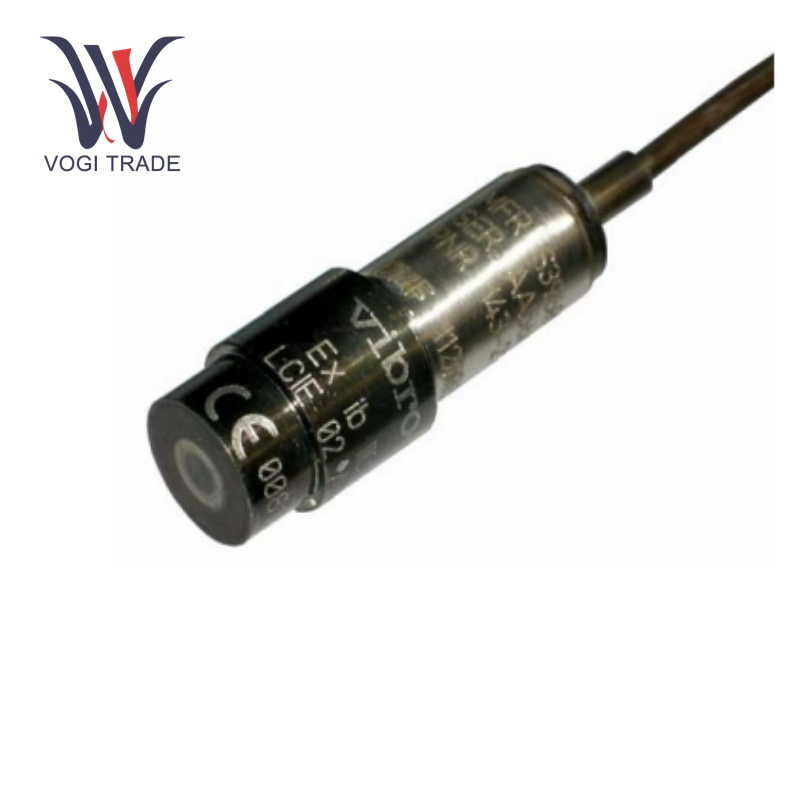

Brand: VIBRO-METER Description: Piezoelectric Pressure Sensor Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen VIBRO-METER CP216 143-216-000-031 is designed for harsh environments. CP216 offers an ultra-wide temperature range (-70°C to +520°C) and high pressure tolerance (350 bar) capabilities, combined with military-grade reliability, making it an ideal dynamic pressure monitoring solution for aerospace, energy and industrial testing.
|
Manufacture |
VIBRO-METER |
|
Model Number |
CP216 |
|
Ordering Number |
143-216-000-031 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9031809090 |
|
Dimension |
20*20*8CM |
|
Packing Dimension |
25*25*12CM |
|
Weight |
0.5kg |
VIBRO-METER CP216 143-216-000-031 Piezoelectric Pressure Sensor: Expert in Dynamic Pressure Monitoring in Extreme Environments
Key Technical Features
Excellent stability: Artificial piezoelectric materials ensure long-term accuracy without the need for repeated calibration.
Dynamic range: 0.0005~250 bar (random), peak overload 350 bar
Frequency response range: 2~15,000 Hz (±5%), resonant frequency＞80 kHz
Interference immunity: MEGGITT CP216 143-216-000-031 acceleration sensitivity ≤0.0025 bar/g
Explosion-proof certification: ATEX II 2G Exib IIC T6-T530 (Zone 1/2)
Radiation protection: Withstands 10¹⁰ erg/g gamma flux & 10¹⁷ n/cm² neutron flux
Corrosion-resistant seal: Nimonic 90 shell + Inconel 600 cable
Smart configuration options
Dual connection solution:
Standard Lemo connector (standard environment)
Optional high temperature connector (>470°C working conditions)
Modular cable: CP216 supports 0.5m~3m custom length (mineral insulated coaxial cable)
Quick installation kit: 143-216-000-031 provides MA104/126 adapter and pressure seal assembly
Application scenarios
Engine combustion monitoring, turbomachinery testing, explosion impact research and other fields that require high-precision dynamic pressure acquisition, especially for extreme environments with high temperature, radiation or explosion risks.
For more details, please click the CP216 DATASHEET link below to obtain the CP216 143-216-000-031 DATASHEET
