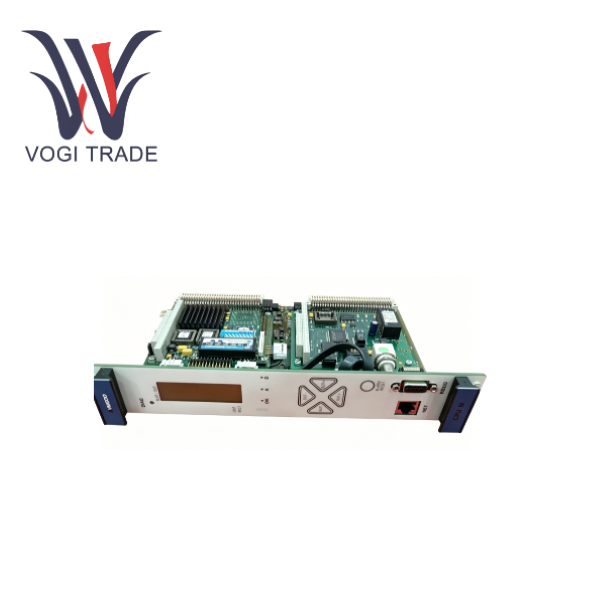

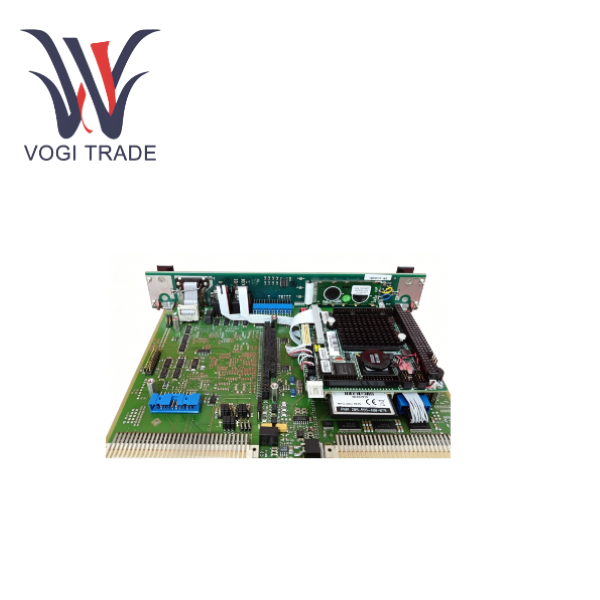

Brand: Vibro-Meter Description: Modular CPU Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Xiamen CPUM 200-595-064-114 is the core control and communication component of VM600 rack-mounted machinery protection system (MPS) and condition monitoring system (CMS), with the functions of rack management, data gateway, multi-protocol communication, etc. It is designed for the monitoring scenarios of medium and large-sized rotating machinery.
|
Manufacture |
Vibro-Meter |
|
Model Number |
CPUM |
|
Ordering Number |
200-595-064-114 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8471800000 |
|
Dimension |
28*20*6cm |
|
Weight |
0.6kg |

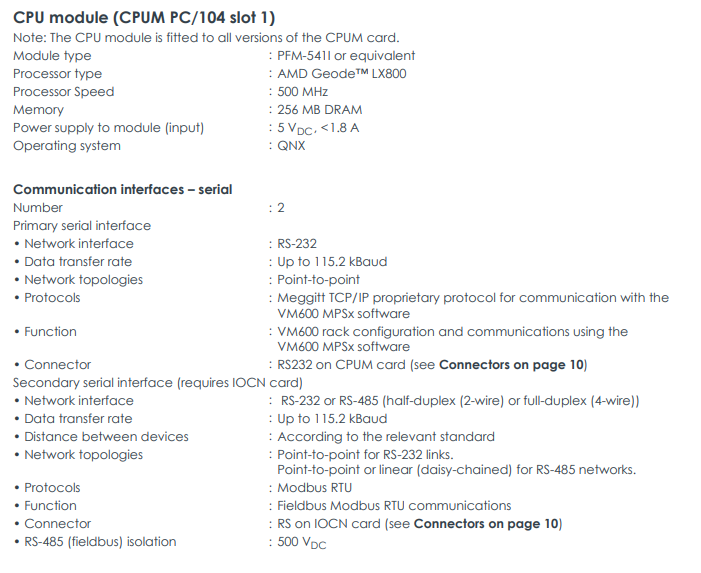

Product Specifications and Parameters
The CPUM 200-595-064-114 adheres to stringent industrial-grade standards in its design and manufacturing. Its key technical specifications include:
Product Type: Central Processing Unit Module / Rack Interface Module
Series: VIBRO METER VM600 Series
Rated Operating Voltage: Supports a wide range of DC input, typically 24V DC, with overvoltage and reverse connection protection.
Communication Interface: Equipped with a high-speed backplane bus interface, supporting Ethernet/serial communication protocols to ensure high-speed data exchange with host computers and other I/O modules.
Operating Temperature: -20℃ to +60℃ (non-condensing), suitable for extremely harsh industrial environments.
Protection Rating: IP20, compliant with CE, UL, and other international industrial safety certifications.
Dimensions: Standard modular design, perfectly compatible with VM600 series dedicated racks.
Comparison of similar products
In the field of industrial vibration monitoring and control, this module is often benchmarked against the Bently Nevada 3500 series or the Emerson CSI system
Compared with the Bently Nevada 3500/20, 3500/20, which is also a frame interface module, has a large circulation volume in the market. In contrast, the CPU-M of VIBRO METER has the original factory advantage in processing certain specific vibration algorithms of steam turbine shafting, and has better compatibility in European imported units.
Compared with traditional PLC cpus: Although general-purpose PLCS (such as the Siemens S7 series) can also achieve logical control, CPU-M is specifically optimized for high-frequency analog signal acquisition. Its anti-interference ability and sampling accuracy far exceed those of ordinary PLCS, making it more suitable for SIS systems with extremely high safety requirements.
Product Features
The core value of the CPUM 200-595-064-114 lies in its powerful data processing and real-time response capabilities:
High-Speed Data Processing: Built-in high-performance microprocessor capable of processing massive amounts of transient data from vibration sensors, displacement probes, and other preamplifiers at millisecond speeds.
Multi-Task Parallel Processing: Supports simultaneous complex logic control and process monitoring, capable of executing sequential control as well as performing accident tracing and alarm analysis.
High-Reliability Redundancy Design: Supports dual-machine hot standby or channel redundancy in critical applications, ensuring seamless system switching in the event of a main module failure, avoiding unplanned downtime.
Intelligent Diagnostic Function: Possesses a comprehensive self-diagnostic mechanism, capable of real-time monitoring of backplane communication status, power load, and internal chip health, and quickly outputting fault codes through a human-machine interface.
